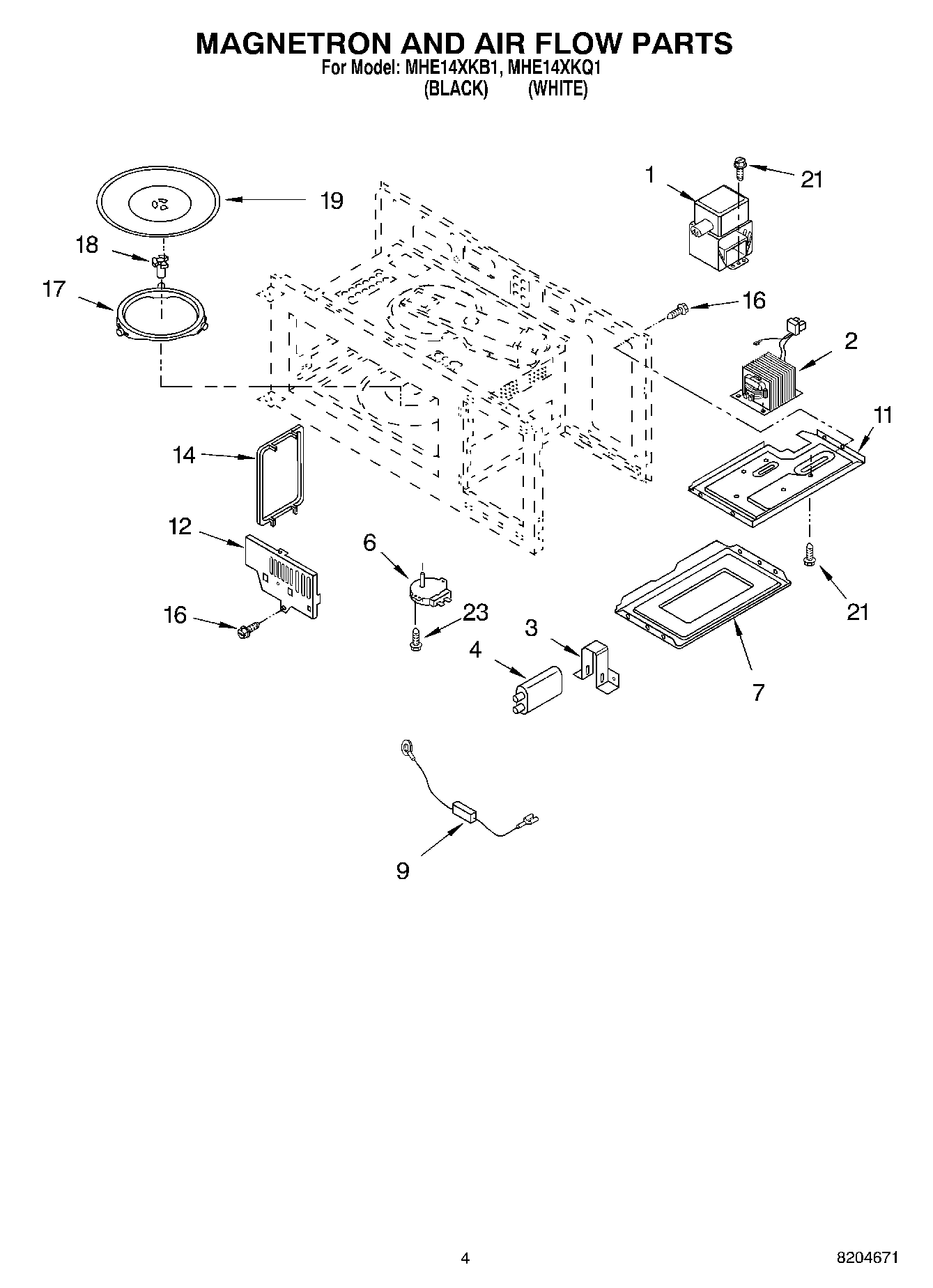

MHE14XKQ1 04 – MAGNETRON AND AIR FLOW PARTS

Products

Position	Product
1	WP8205812 Whirlpool Microwave Magnetron
2	H.V. Transformer
3	Bracket, H.V.
4	Capacitor, H.V.
6	Motor, Turntable
7	Plate
9	WP8205489 Whirlpool Microwave Voltage Wire
11	Plate
12	Shield, Protector
14	Canopy
16	W11380570 Whirlpool Microwave Screw
17	Rotating Ring
18	Turntable Shaft
19	WP8172138 Whirlpool Microwave Cook Tray
21	4344826 Whirlpool Refrigerator Screw
23	Screw
