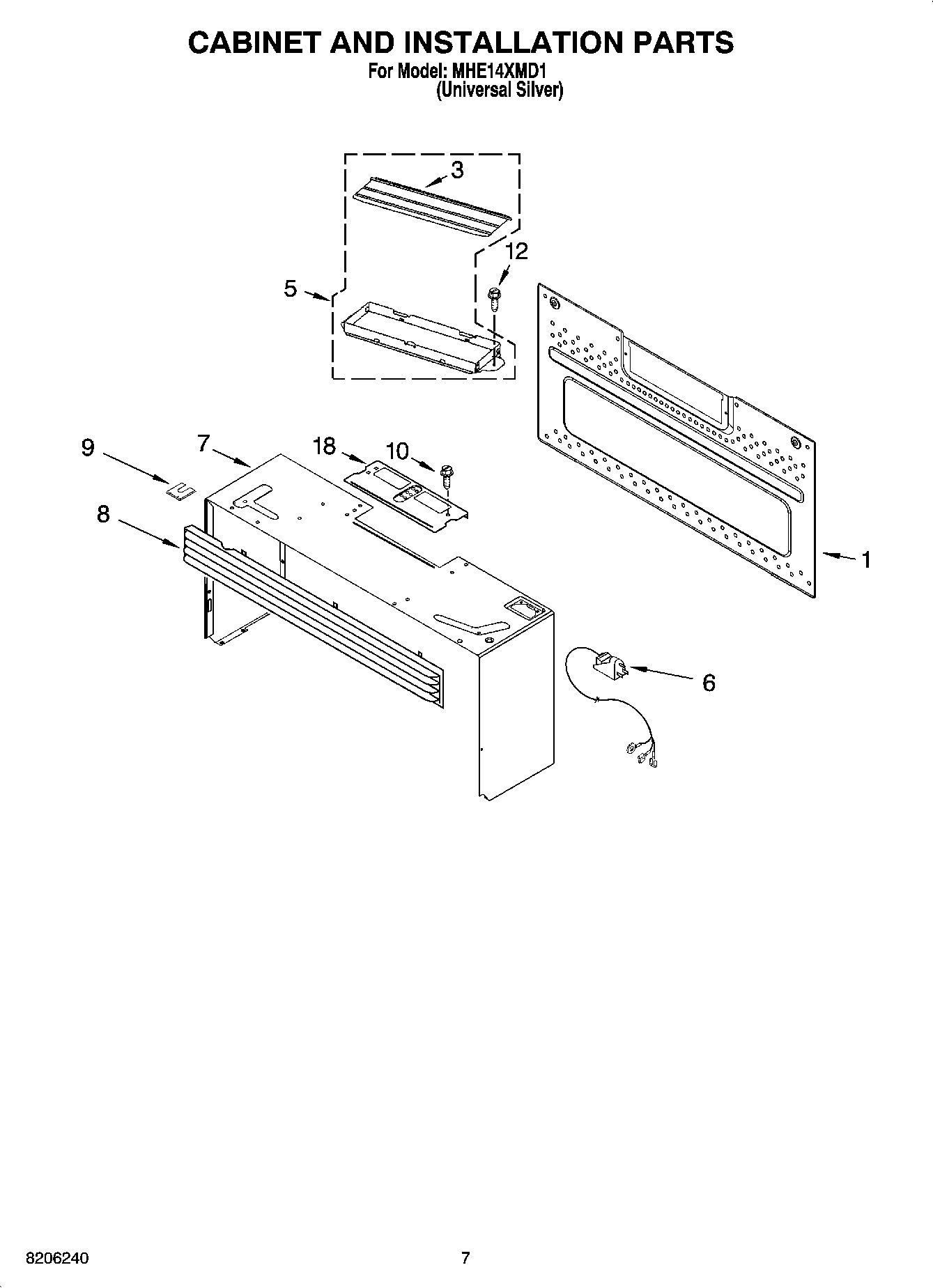

MHE14XMD1 06 – CABINET AND INSTALLATION PARTS

MHE14XMD1 06 – CABINET AND INSTALLATION PARTS

Written by

in

MHE14XMD1 06 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
1WP8206174 Whirlpool Microwave Mounting Bracket
3W10843943 Whirlpool Microwave Vent Damper
6W10708076 Whirlpool Microwave Power Cord
7Case, Outer (Black)
88184608 Whirlpool Microwave Oven Vent Grille
98206334 Whirlpool Microwave Mounting Bracket
10WP4393834 Whirlpool Microwave Screw
12Screw
18Lamp Wire Assy.
18Main Harness
18H.V. Wire Assy.
18Plate, Damper
18Ground Wire Assy.
18WP8169704 Whirlpool Screw
18Template, Upper
188205948 Whirlpool Microwave Mount
18Miscellaneous
