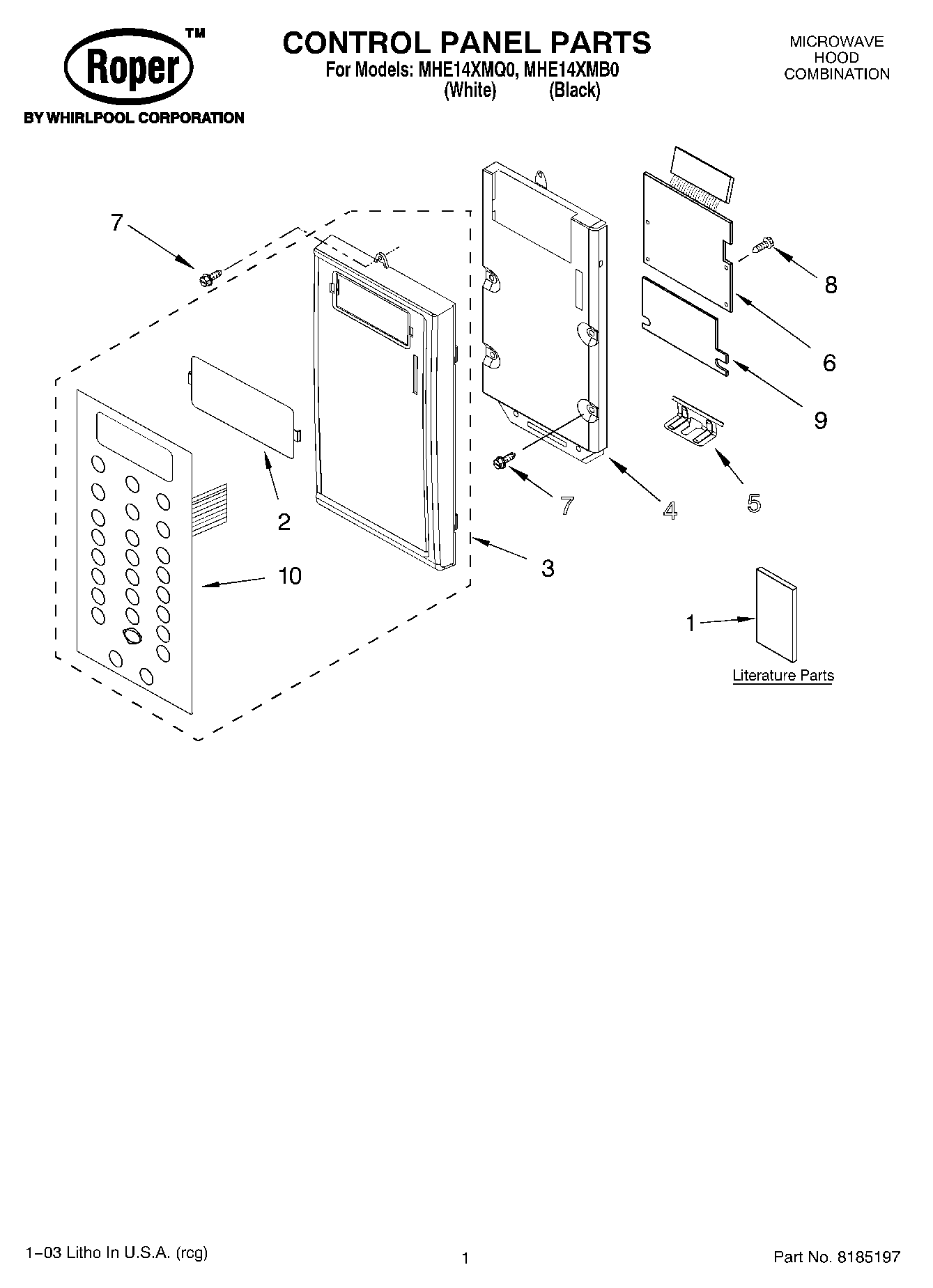

MHE14XMQ0 01 – CONTROL PANEL PARTS

MHE14XMQ0 01 – CONTROL PANEL PARTS

Written by

in

MHE14XMQ0 01 – CONTROL PANEL PARTS

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Tech Sheet)
1Literature Parts (Cook Guide Label)
1Literature Parts (Use & Care Guide)
2Lens
3Panel, Control (Black)
3Panel, Control (White)
4Bracket, Control
5Plate, Hinge
6PCB Assembly
7Screw
8Screw
9Foil, PCB
10Switch, Membrane (White)
10Switch, Membrane (Black)
