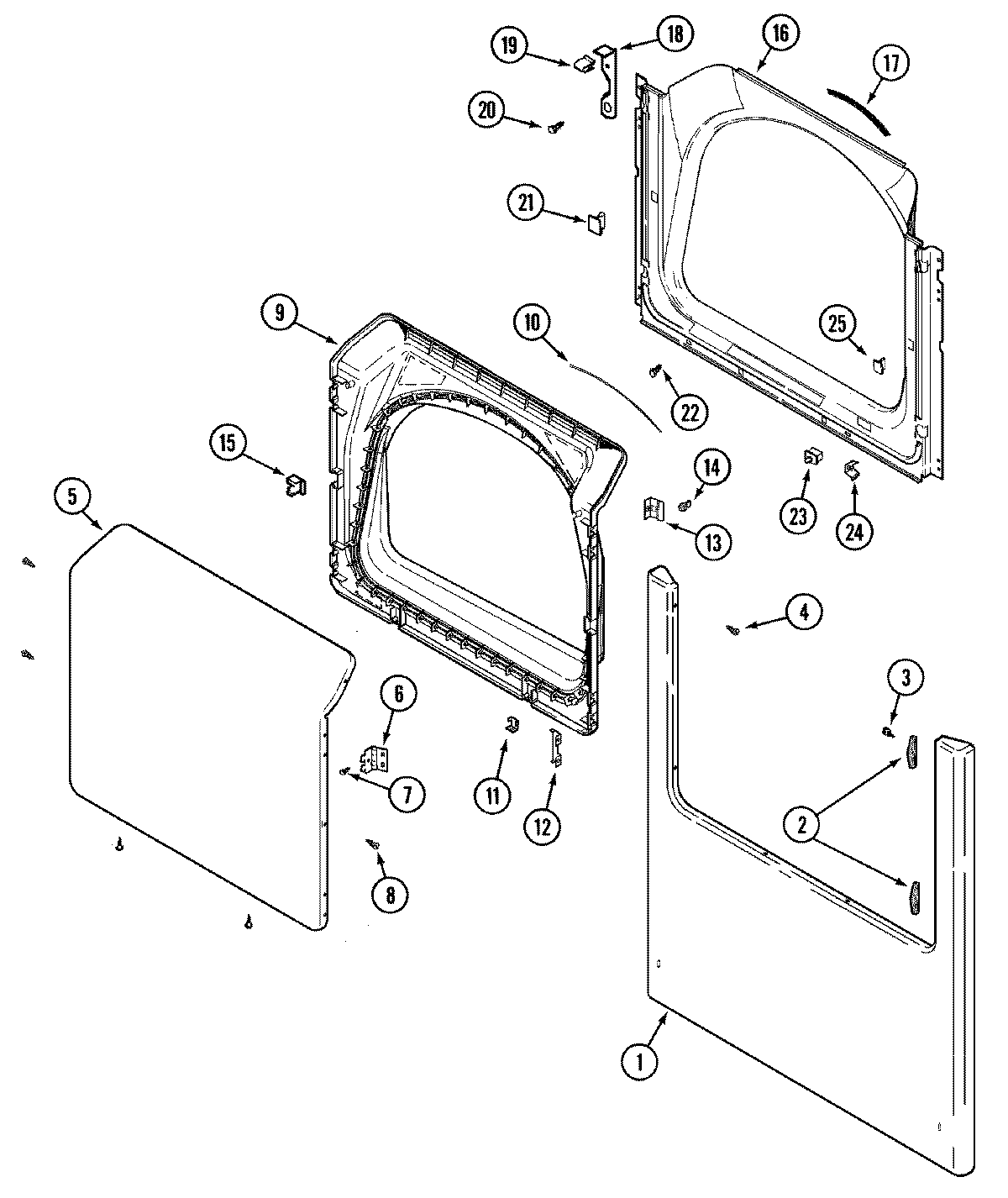

MHE15MNAGW 03 – DOOR (LOWER)

MHE15MNAGW 03 – DOOR (LOWER)

Written by

in

MHE15MNAGW 03 – DOOR (LOWER)

Products

PositionProduct
1MAY 22002241
2WP33001764 Whirlpool Cover
3WP33001787 Whirlpool Screw
4WP22002012 Whirlpool Screw Assembly
5MAY 22001979
6WP33001759 Whirlpool Door Hinge
7WP98006631 Whirlpool Screw
8MAY 22002063
9MAY 33001750
10WP33002094 Whirlpool Door Seal
11MAY 22002039
12MAY 22002038
13WP33001793 Whirlpool Bracket Spring
14MAY 33001761
15MAY 33001763
16MAY 33001778
17MAY 33001767
18MAY 22002991
19MAY 33002037
20W11573574 Whirlpool Screw
21306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
22MAY 33001768
23MAY 33002239
24MAY 33001760
25MAY Y304578
