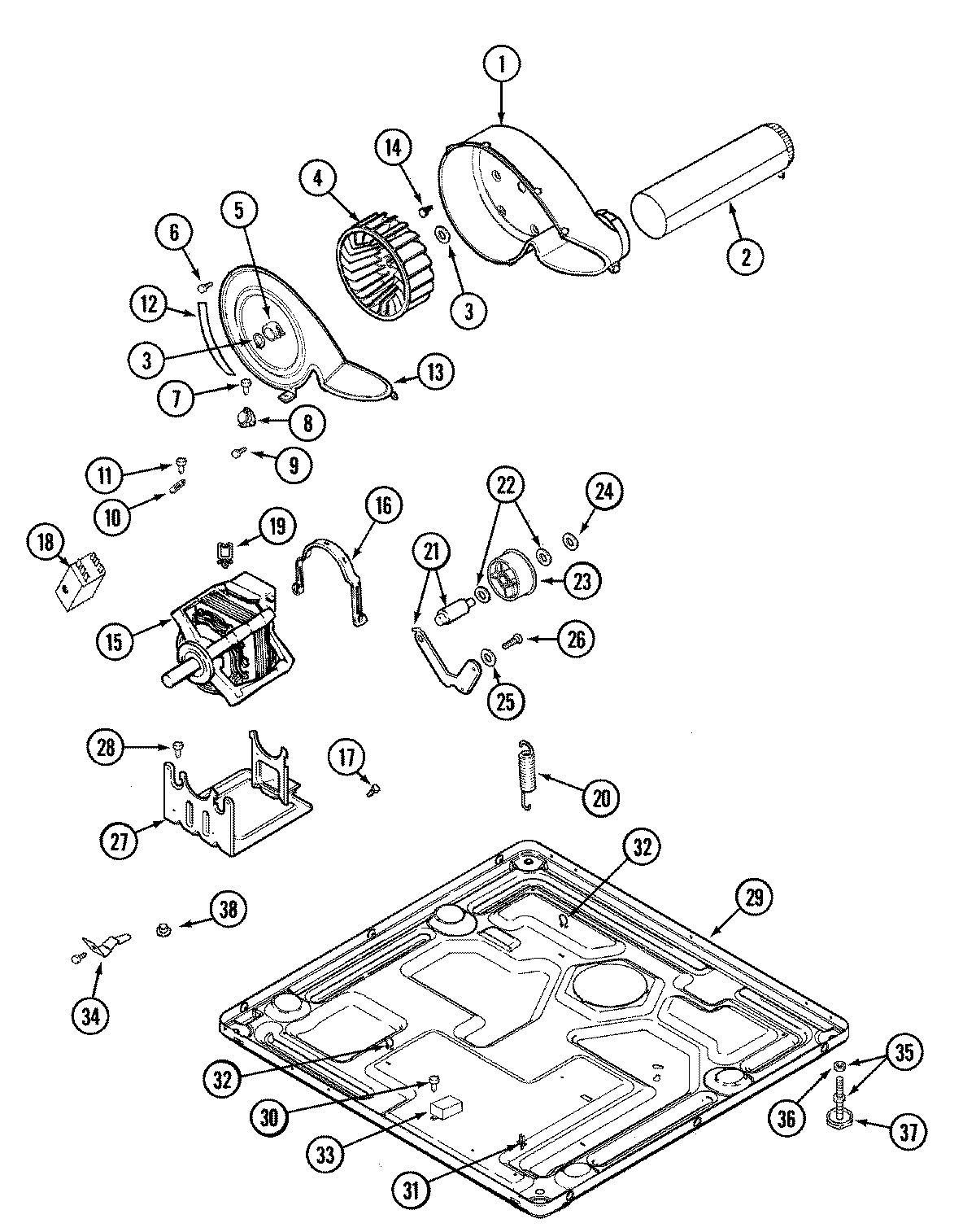

MHE15MNAGW 05 – MOTOR DRIVE

MHE15MNAGW 05 – MOTOR DRIVE

Written by

in

MHE15MNAGW 05 – MOTOR DRIVE

Products

PositionProduct
1WP33001789 Whirlpool Blower Housing Assembly
2MAY 33001800
2W11573574 Whirlpool Screw
3WP9703438 Whirlpool Snap Retaining Ring
433001790 Whirlpool Blower Wheel
5WP312967 Whirlpool Clamp
6WP3400065 Whirlpool Refrigerator Screw
8MAY 33001306
8WP694674 Whirlpool Cycling Thermostat
8PART NOT USED
9WP489128 Whirlpool Refrigerator Screw
10WP33001762 Whirlpool Dryer Thermal Fuse
11MAY 314848
12MAY 33001772
13MAY 33001796
14MAY 314818
15W10197708 Whirlpool Drive Motor Assembly
15MAY 33002463
15MAY 33001945
16WPY015825 Whirlpool Motor Clip
17MAY 910343
18MAY 33002451
19MAY 33002040
20MAY 33002157
20MAY 33002461
2033002459 Whirlpool Idler Spring
21WP6-3705180 Whirlpool Idler Pulley Lever
22MAY Y312527
23WP6-3700340 Whirlpool Belt Tension Pulley Wheel
24WP354987 Whirlpool C-Clip
25WP315772 Whirlpool Sleeve
26WPY014874 Whirlpool Screw
27MAY 33001752
27MAY 33002466
28MAY Y313561
29MAY 33001845
29MAY 33002465
29MAY 33002467
31MAY 315471
32MAY 410490
34MAY 22002244
34MAY 22002239
34MAY Y310632
35WP8563585 Whirlpool Foot Assembly
36WP62739 Whirlpool Nut
37WP210684 Whirlpool Dishwasher Leveling Leg Pad
