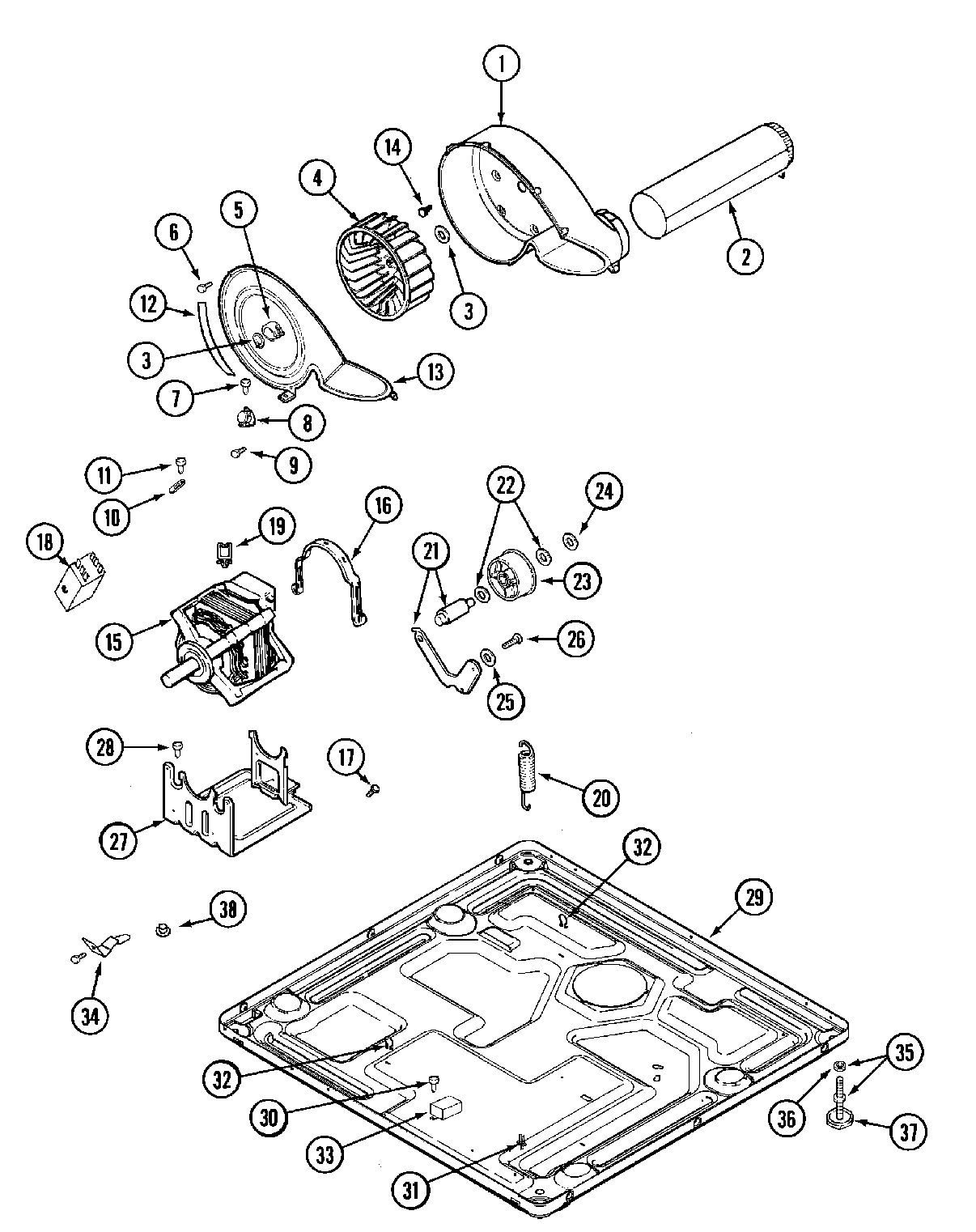

MHE15PDAUW 06 – MOTOR DRIVE

Products

Position	Product
001	WP33001789 Whirlpool Blower Housing Assembly
002	MAY 33001800
003	WP9703438 Whirlpool Snap Retaining Ring
004	33001790 Whirlpool Blower Wheel
005	WP312967 Whirlpool Clamp
006	WP3400065 Whirlpool Refrigerator Screw
008	WP33303391 Whirlpool Thermostat
008	MAY 307208
009	WP489128 Whirlpool Refrigerator Screw
010	WP33001762 Whirlpool Dryer Thermal Fuse
013	MAY 33001796
014	MAY 314818
015	MAY 33002462
015	W10410997 Whirlpool Drive Motor
016	WPY015825 Whirlpool Motor Clip
017	MAY 910343
018	MAY 33001854
019	MAY 33002040
020	33002459 Whirlpool Idler Spring
020	MAY 33002157
020	MAY 33002461
021	WP6-3705180 Whirlpool Idler Pulley Lever
022	MAY Y312527
023	WP6-3700340 Whirlpool Belt Tension Pulley Wheel
024	WP354987 Whirlpool C-Clip
025	WP315772 Whirlpool Sleeve
026	WPY014874 Whirlpool Screw
027	MAY 33001752
027	MAY 33002466
028	MAY Y313561
029	MAY 33002048
029	MAY 33002050
029	MAY 33002049
029	MAY 33002041
029	MAY 33002467
029	MAY 314568
029	DOWEL PIN FOR HANDLE
030	WP90767 Whirlpool Screw
030	WP3177991 Whirlpool Screw
031	MAY 315471
032	MAY 410490
033	MAY 306398
033	MAY Y313559
033	MAY 315218
033	MAY 33001205
034	MAY 33002042
034	MAY 33002043
034	W11573574 Whirlpool Screw
034	MAY Y310632
034	MAY 22002244
034	MAY 22002239
035	WP8563585 Whirlpool Foot Assembly
036	WP62739 Whirlpool Nut
037	WP210684 Whirlpool Dishwasher Leveling Leg Pad
038	MAY 33002044
