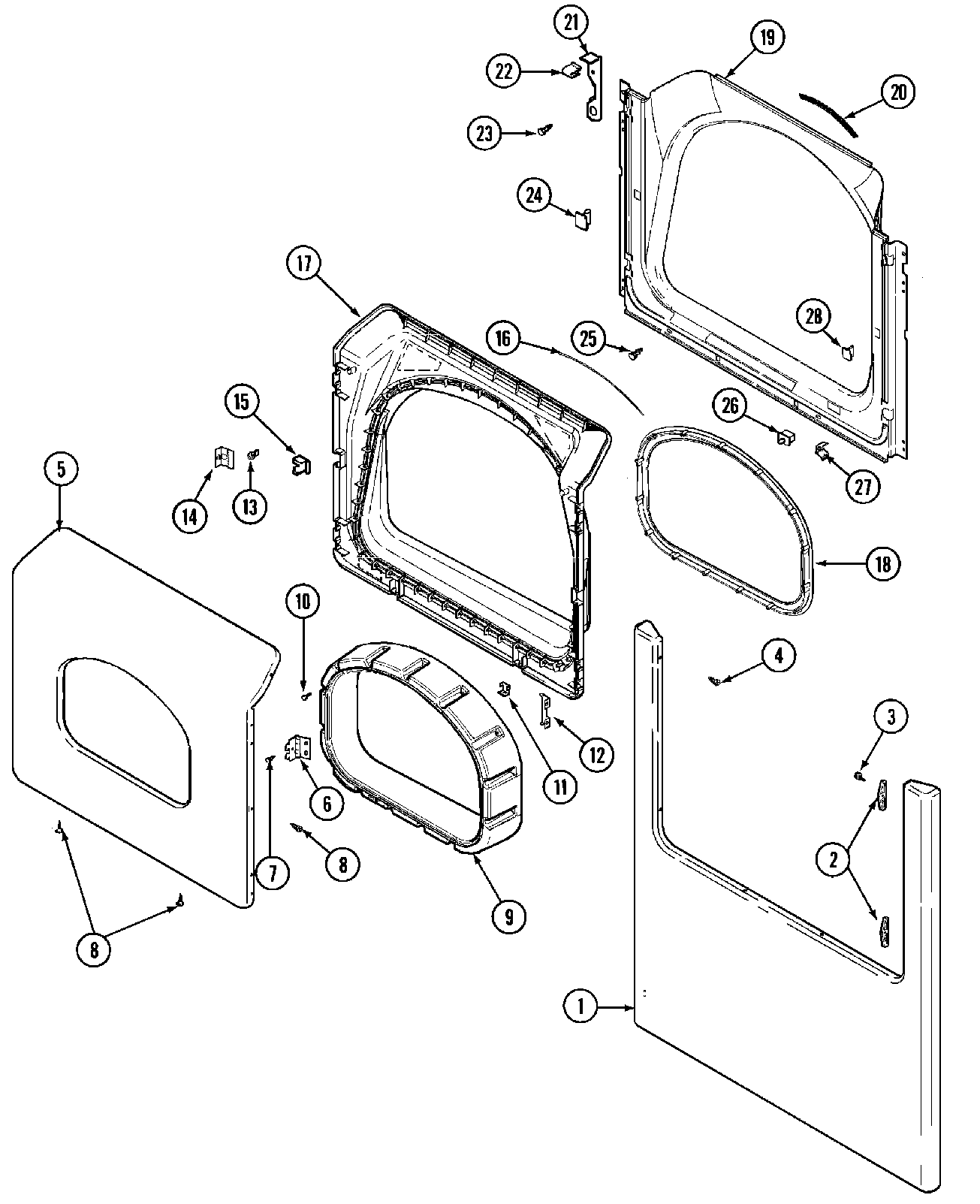

MHE15PDAZW 02 – DOOR (LOWER)

MHE15PDAZW 02 – DOOR (LOWER)

Written by

in

MHE15PDAZW 02 – DOOR (LOWER)

Products

PositionProduct
001MAY 22002241
002WP33001764 Whirlpool Cover
003WP33001787 Whirlpool Screw
004WP22002012 Whirlpool Screw Assembly
005MAY 33002028
006WP33001759 Whirlpool Door Hinge
007WP98006631 Whirlpool Screw
008MAY 22002063
00933002780 Whirlpool Tunnel Door Handle (White)
010WP9740848 Whirlpool Dishwasher Screw
011MAY 22002039
012MAY 22002038
013MAY 33001761
014WP33001793 Whirlpool Bracket Spring
015MAY 33001763
016WP33002094 Whirlpool Door Seal
017MAY 33002030
018MAY 33002022
019MAY 33002033
020MAY 33001767
021MAY 33002035
021HOOK, ACCESS COVER (RT)
022MAY 33002037
023W11573574 Whirlpool Screw
024306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
025MAY 33001768
026MAY 33002038
027MAY 33001760
028MAY Y304578
