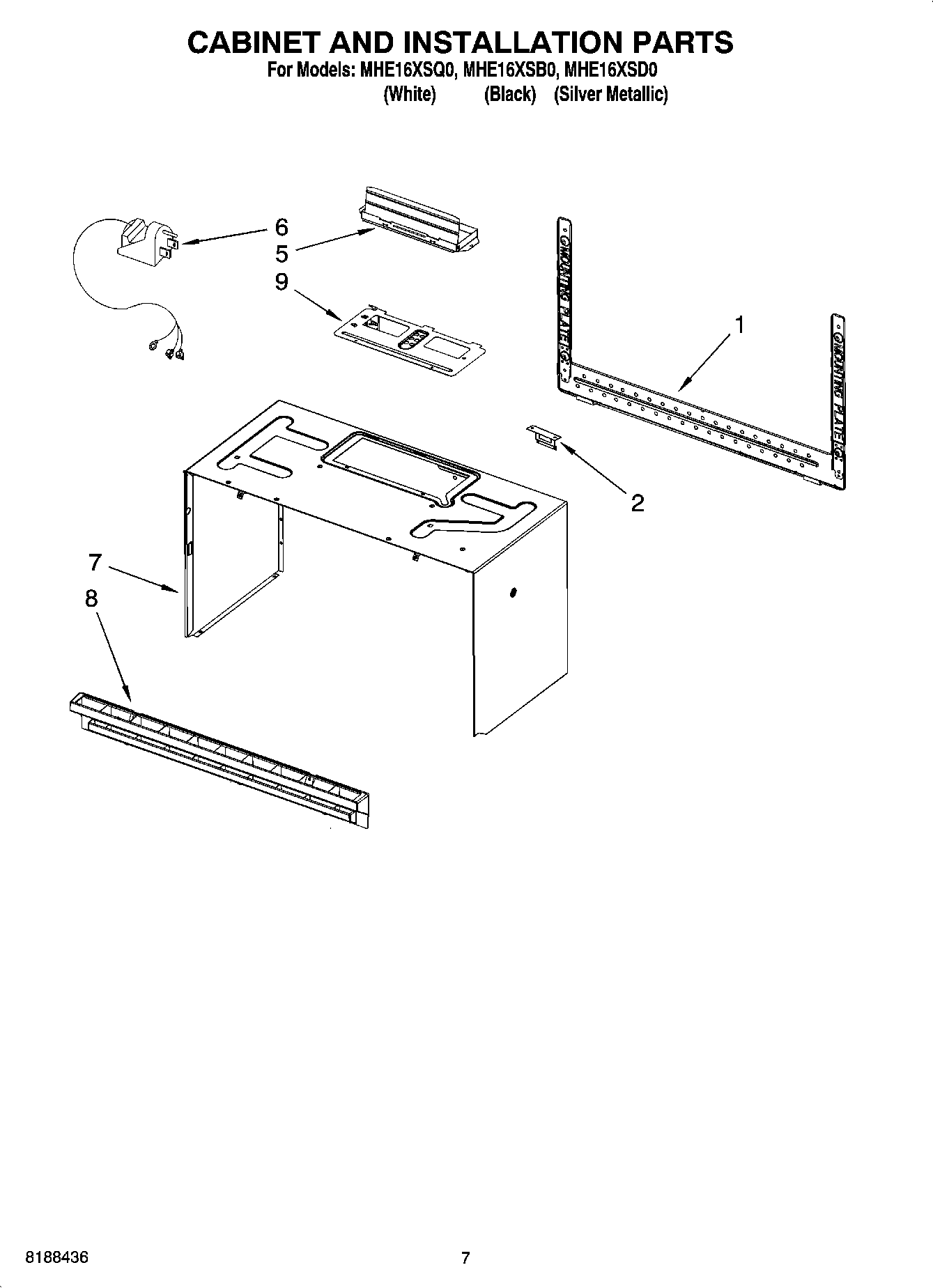

MHE16XSQ0 06 – CABINET AND INSTALLATION PARTS

Products

Position	Product
1	WPW10269225 Whirlpool Bracket Mounting
2	8206385 Whirlpool Microwave Wire Clip
5	W10843943 Whirlpool Microwave Vent Damper
6	8206388 Whirlpool Microwave Power Cord
7	Case, Outer (Black)
7	Case, Outer (White)
8	Grille, Vent (Stainless Model)
8	Grille, Vent (White Model)
9	Grnd Wire, Filter
9	Harness Wire, NTC
9	Ground Wire Assy.
9	WP8169704 Whirlpool Screw
9	HV Trnsfrm Wr Assy
9	Hdlmp/TT Wire Assy
9	Main Harness
9	H.V. Wire Assy
9	Plate, Damper
9	Template, Upper
9	8205948 Whirlpool Microwave Mount
9	Miscellaneous
