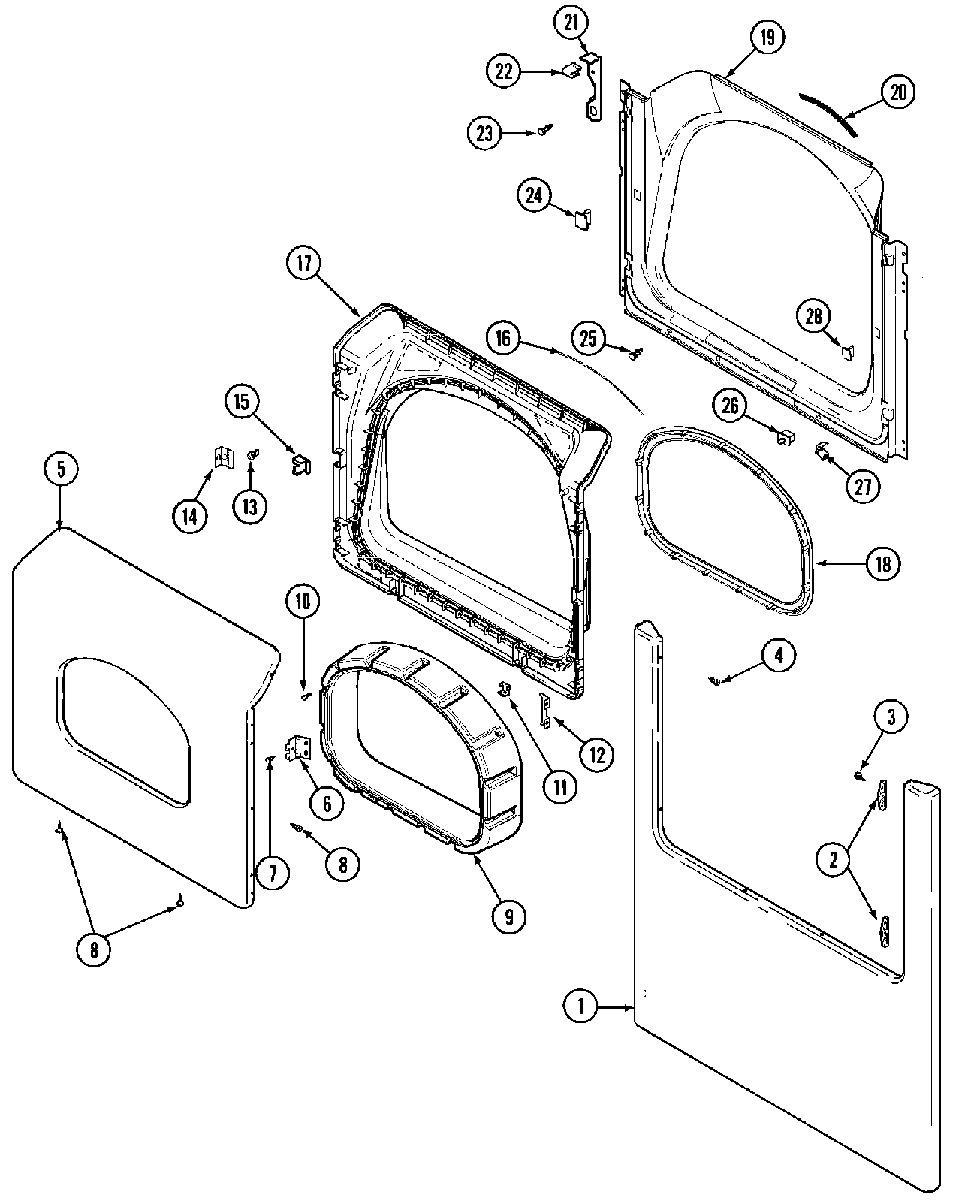

MHG15PDAXA 02 – DOOR (LOWER)

Products

Position	Product
001	22002836 Whirlpool Oven Front Primary Panel
001	MAY 22002241
002	COVER, HINGE HOLE (ALM)
002	WP33001764 Whirlpool Cover
003	WP33001787 Whirlpool Screw
004	WP22002012 Whirlpool Screw Assembly
005	MAY 33002028
006	WP33001759 Whirlpool Door Hinge
007	WP98006631 Whirlpool Screw
008	MAY 22002063
008	SCREW
009	33002780 Whirlpool Tunnel Door Handle (White)
009	MAY 33002019
010	WP9740848 Whirlpool Dishwasher Screw
011	MAY 22002039
012	MAY 22002038
013	MAY 33001761
014	WP33001793 Whirlpool Bracket Spring
015	MAY 33001763
016	WP33002094 Whirlpool Door Seal
017	MAY 33002031
017	MAY 33002030
018	MAY 33002022
019	MAY 33002033
019	DOWEL PIN FOR HANDLE
020	MAY 33001767
021	MAY 33002035
021	HOOK, ACCESS COVER (RT)
022	MAY 33002037
023	W11573574 Whirlpool Screw
024	306436 Whirlpool Washer Dryer Door Catch and Plastic Strike
025	MAY 33001768
026	MAY 33002038
027	MAY 33001760
028	MAY Y304578
