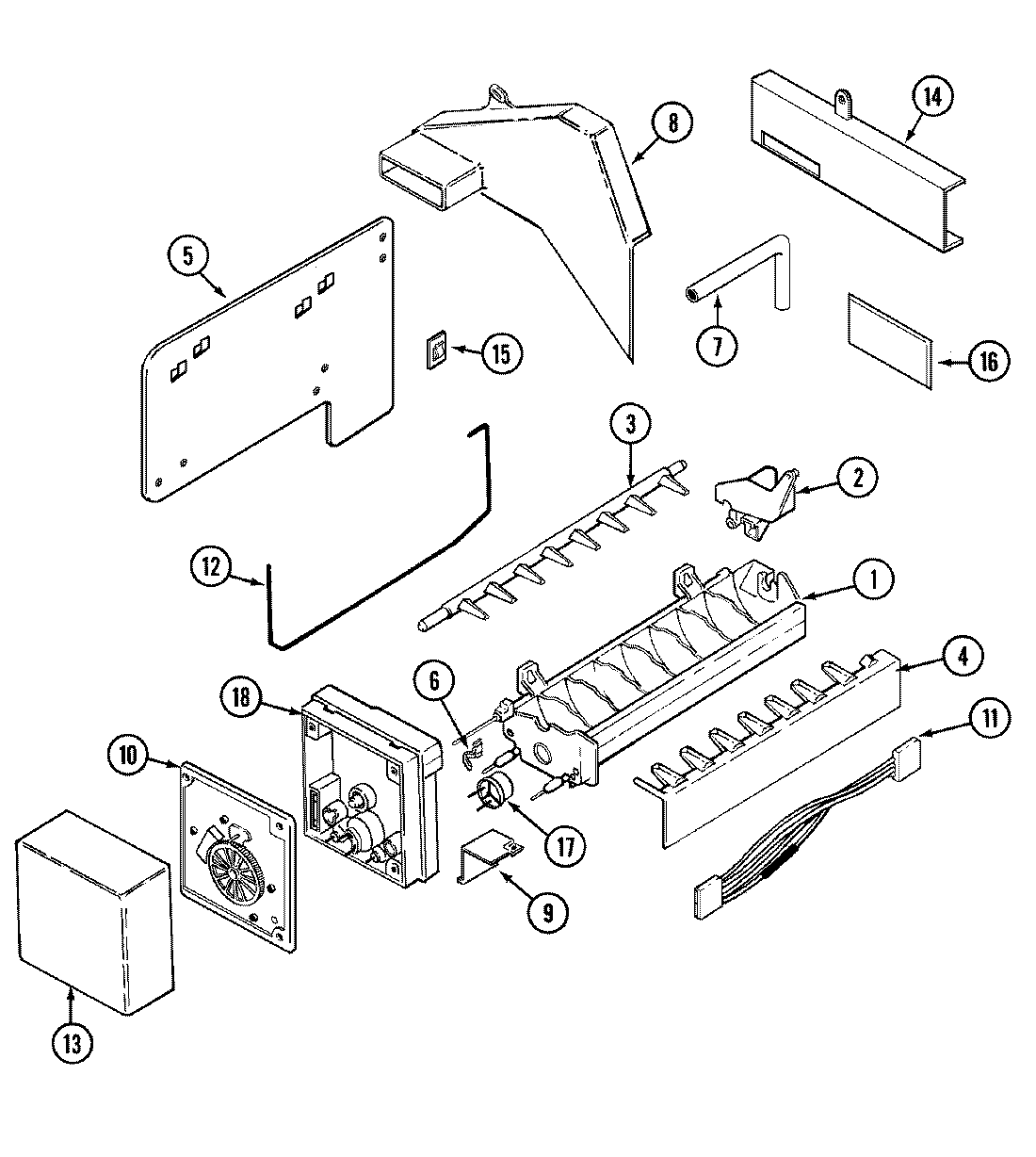

MHIK7989 01 – RETROFIT ICE MAKER KIT

Products

Position	Product
1	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1	WP99003172 Whirlpool Silicone L
2	WP628356 Whirlpool Refrigerator Fill Cup
3	WP627843 Whirlpool Refrigerator Ejector Arm
4	WP2182124 Whirlpool Refrigerator Stripper Arm
5	MAY 61001596
5	MAY 61001600
6	WP2315522 Whirlpool Refrigerator Clip
7	MAY 61001592
8	MAY Y707113
8	MAY 70198-3
9	MAY 61001595
9	MAY 61001594
9	MAY 95108-1
9	BRACKET, MODULE & HEATER
10	MAY 95109-1
11	MAY 61001593
12	W11342242 Whirlpool Refrigerator Ice Level Arm
13	WPW10289690 Whirlpool Ice Maker Cover
14	MAY 61001597
15	MAY 67619-1
16	MAY 65706-1
17	MAY 95093-1
17	WP627985 Whirlpool Icemaker Cycling Thermostat
18	SCREW
18	WP2195914 Whirlpool Refrigerator Ice Maker Housing
