MHN30PDAGW0 03 – CONTROL PANEL PARTS – Aparts

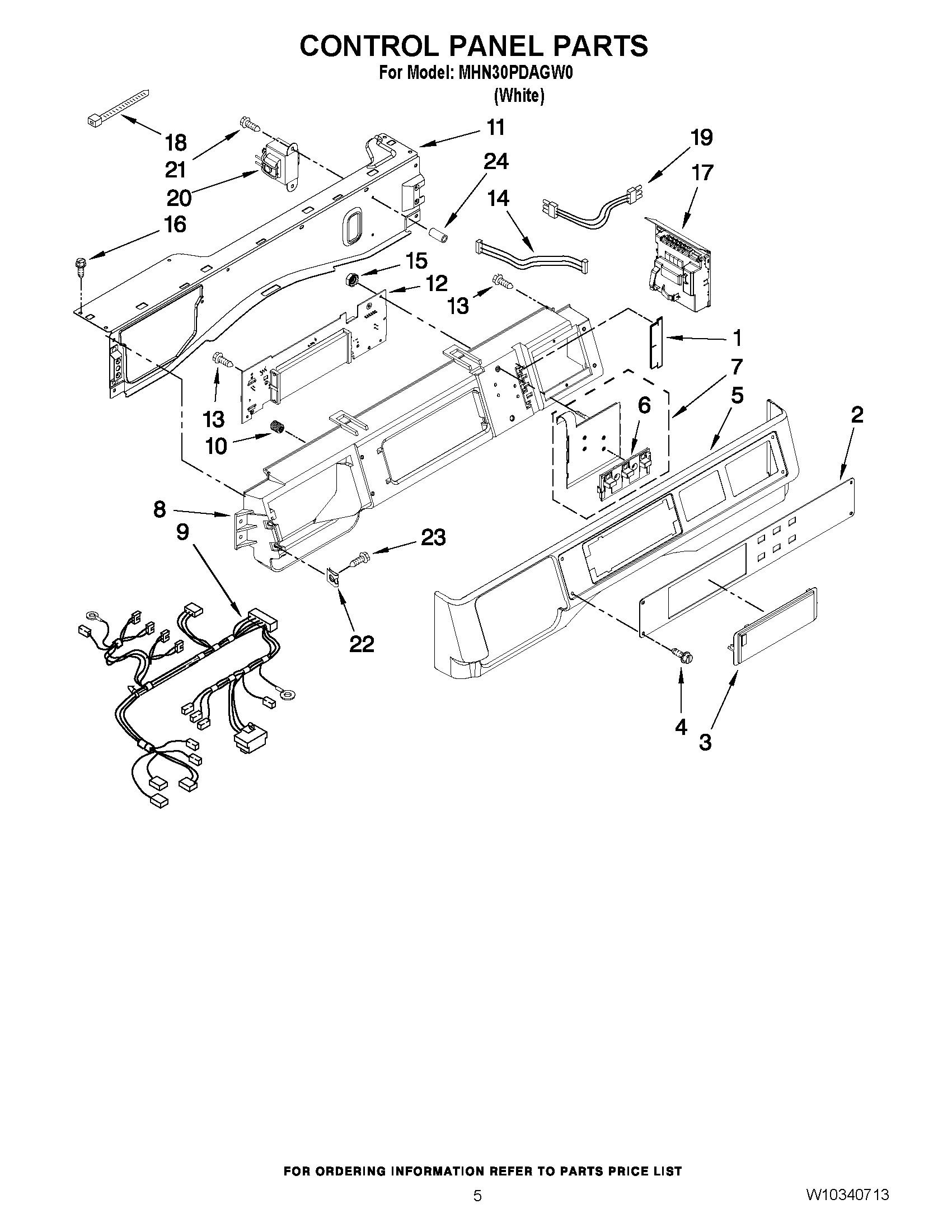

MHN30PDAGW0 03 – CONTROL PANEL PARTS

Products

Position	Product
NI	MAY W10340898
NI	MAY W10340897
NI	MAY W10200793
1	MAY W10187276
2	MAY W10313105
3	COVER, DISPLAY
4	SCREW
5	MAY W10137458
6	BUTTON, PUSH
7	MAY W10135389
8	MAY W10137426
9	MAY W10340888
10	INSERT
11	MAY W10294428
12	MAY W10311189
13	MAY 489136
14	MAY W10155150
15	NUT
16	Screw, 8-18 x 5/8
17	MAY W10340566
18	Cable Tie
19	MAY W10330606
20	TRANSFORMER
21	MAY 8540329
22	CLIP(STLS.MODEL)
23	MAY W10131119
24	MAY W10018050
