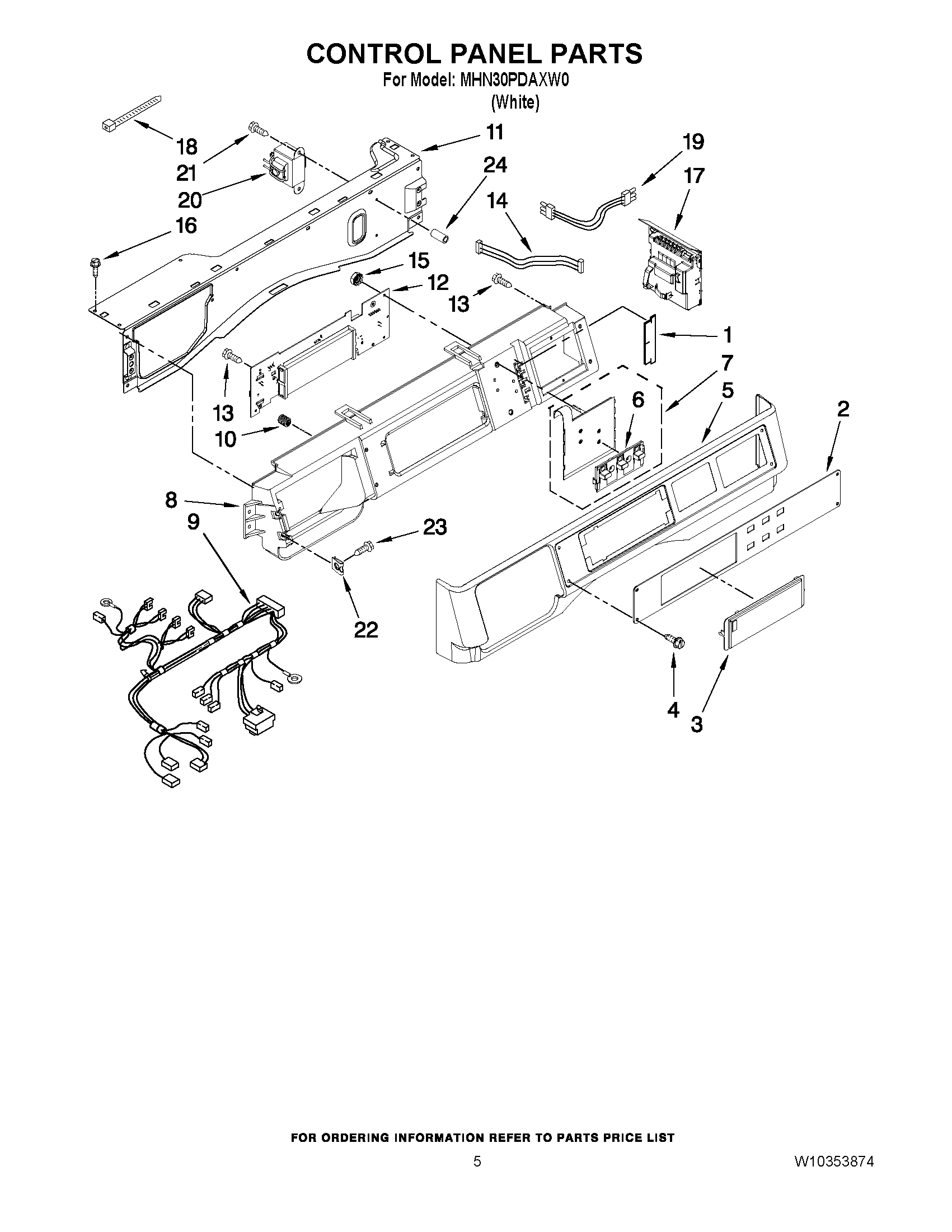

MHN30PDAXW0 03 – CONTROL PANEL PARTS

MHN30PDAXW0 03 – CONTROL PANEL PARTS

Written by

in

MHN30PDAXW0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10187276
2	MAY W10313105
3	COVER, DISPLAY
4	SCREW
5	MAY W10137458
6	BUTTON, PUSH
7	MAY W10135389
8	MAY W10137426
9	MAY W10232996
9	HARNESS, WIRING (UPPER MAIN)
9	MAY W10232997
9	MAY W10179481
10	INSERT
11	MAY W10294428
12	MAY W10311189
13	MAY 489136
14	MAY W10155150
15	NUT
16	Screw, 8-18 x 5/8
17	MAY W10311060
18	Cable Tie
19	MAY W10299342
20	MAY W10131839
21	MAY 8540329
22	CLIP(STLS.MODEL)
23	MAY W10131119
24	MAY W10018050
