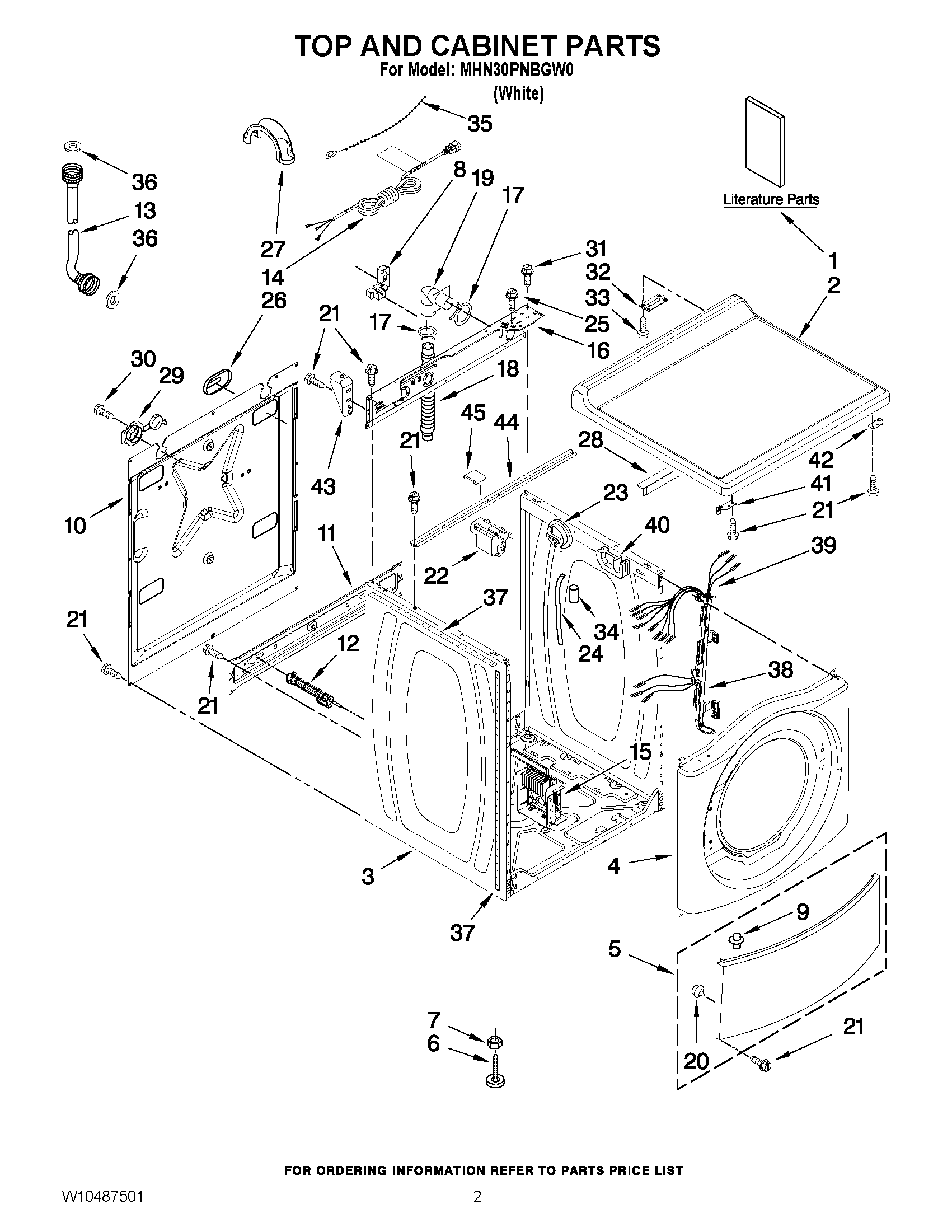

MHN30PNBGW0 01 – TOP AND CABINET PARTS

Products

Position	Product
NI	MAY W10223809
NI	MAY W10223807
NI	MAY W10223804
NI	LINER (NOT A SERVICEABLE PART)
NI	DOOR LOCK- POWER
NI	CCU TO MCU-SERIALCOMMUNICATION (3 POLE)
NI	MAY W10480265
NI	MAY W10153836
1	MAY W10487501
1	MAY W10491133
1	MAY W10487509
1	MAY W10491131
1	MAY W10491134
2	TOP (WHITE)
3	CABINET
4	MAY W10306505
5	TOE PANEL (WHITE)
6	MAY W10245373
7	Nut, 3/8-16
8	MAY W10110676
9	MAY 8518891
10	MAY W10258342
11	MAY W10189659
12	MAY W10251449
13	MAY W10276795
13	MAY W10276793
14	MAY W10045597
15	MAY W10385821
16	MAY W10244560
17	MAY 356138
18	HOSE, DRAIN- OUTER
19	Connector, Drain Hose
20	MAY 238614
21	Screw, 8-18 x 5/8
22	MAY W10398805
23	MAY W10292407
24	MAY 8540294
25	SCREW, GROUNDING
26	MAY 8540268
27	U-Bend
28	MAY W10342663
29	MAY 8540728
30	SCREW
31	MAY 8540329
32	HINGE ASSEMBLY (WHITE)
33	MAY 342055
34	Sleeve, Pressure Switch Hose
35	MAY 3347868
36	ACCESSORY PARTS, WASHER, INLET HOSE
37	SEAL-FOAM (IEC)
38	MAY W10168546
39	MAY W10475277
40	MAY 8540643
41	MAY W10137445
42	MAY W10137444
43	MAY W10137398
44	MAY 8540721
45	MAY 8283273
