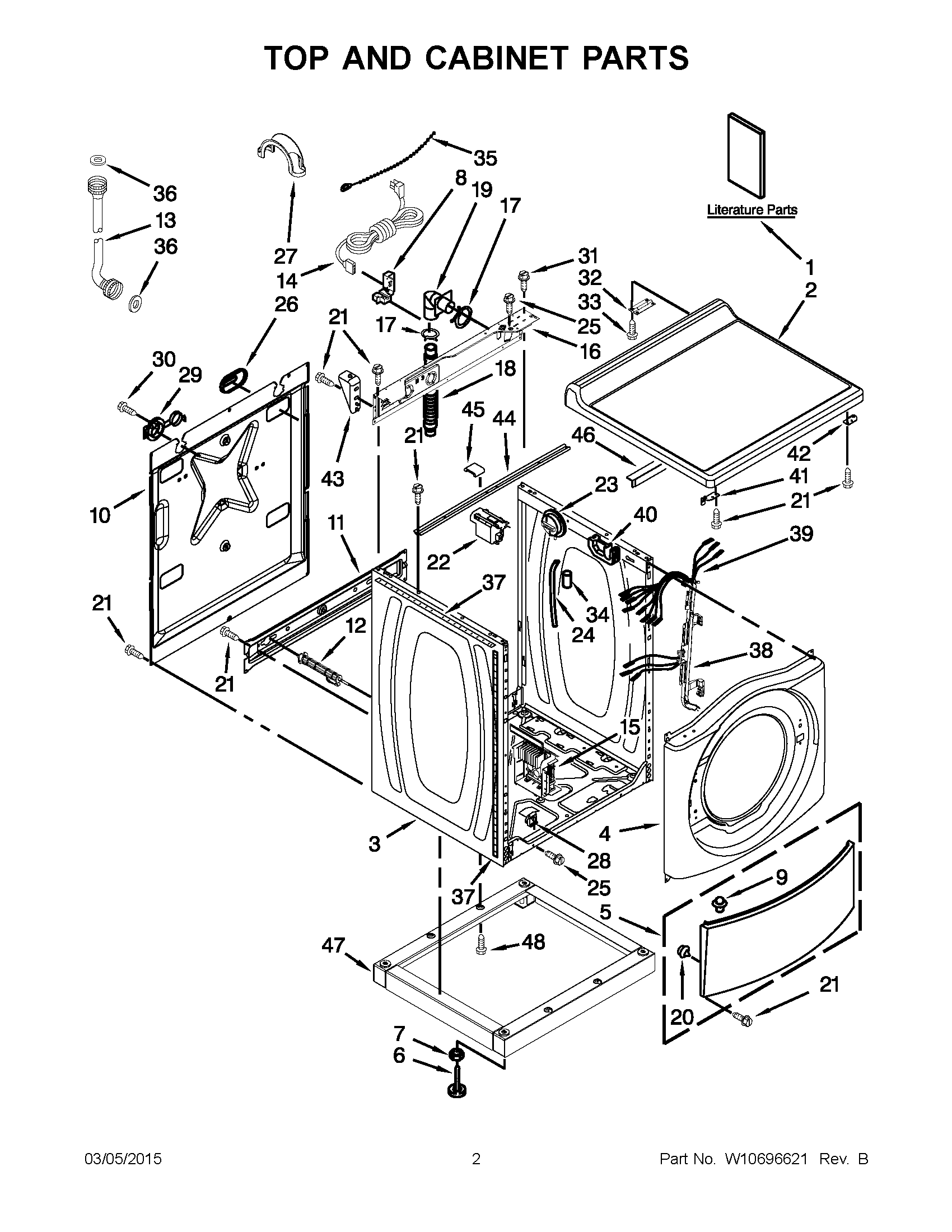

MHN30PRCWW0 02 – TOP AND CABINET PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	CCU TO MCU – POWER (2 POLE)
NI	CCU TO MCU ? SERIAL COMMUNICATION (3 POLE)
NI	MAY 8540205
1	MAY W10353871
1A	MAY W10617697
1B	MAY W10617702
2	TOP (WHITE)
3	MAY W10276046
4	MAY W10306505
5	TOE PANEL (WHITE)
6	MAY W10245373
7	Nut, 3/8-16
8	MAY W10110676
9	MAY 8518891
10	MAY W10258342
11	MAY W10189659
12	MAY W10251449
13	Hose, Water Inlet (Cold Water)
13A	Hose, Water Inlet (Hot Water)
14	MAY W10205500
15	MOTOR CONTROL UNIT
16	MAY W10244560
17	MAY 356138
18	HOSE, DRAIN- OUTER
19	Connector, Drain Hose
20	MAY 238614
21	Screw, 8-18 x 5/8
22	MAY W10339736
23	MAY W10292407
24	MAY 8540294
25	SCREW, GROUNDING
26	MAY 8540268
27	U-Bend
28	MAY W10085220
29	MAY 8540728
30	SCREW
31	MAY 8540329
32	HINGE ASSEMBLY (WHITE)
33	MAY 342055
34	Sleeve, Pressure Switch Hose
35	MAY 3347868
36	ACCESSORY PARTS, WASHER, INLET HOSE
37	MAY W10693220
38	MAY W10168546
39	HARNESS, WIRING (LOWER MAIN)
40	MAY 8540643
41	MAY W10137445
42	MAY W10137444
43	MAY W10137398
44	MAY 8540721
45	MAY 8283273
46	MAY W10342663
47	PEDESTAL, COMMERCIAL
48	MAY 3400111
