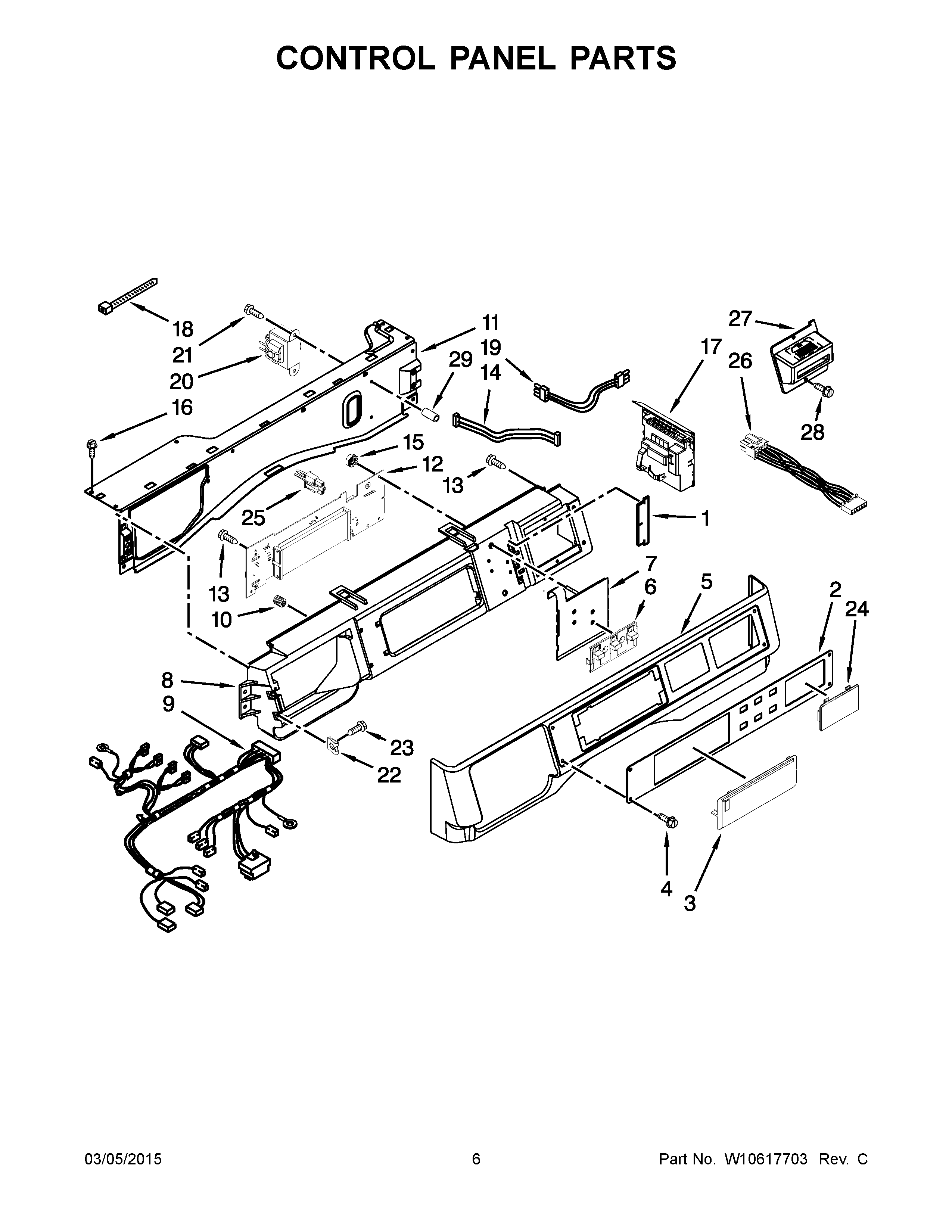

MHN31PRAWW0 04 – CONTROL PANEL PARTS

Products

Position	Product
NI	MAY W10232996
NI	MAY W10232997
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10187276
2	MAY W10607835
3	COVER, DISPLAY
4	SCREW
5	MAY W10137458
6	BUTTON, PUSH
7	SWITCH, MEMBRANE & BACKER PLATE
8	MAY W10137426
9	MAY W10298332
10	INSERT
11	MAY W10294428
12	MAY W10618807
13	MAY 489136
14	MAY W10155150
15	NUT
16	Screw, 8-18 x 5/8
17	MAY W10732327
18	Cable Tie
19	MAY W10448626
20	MAY W10131839
21	MAY 8540329
22	CLIP(STLS.MODEL)
23	MAY W10131119
24	MAY W10213906
25	JUMPER, SWITCH SERVICE/VAULT
26	CARD READER, HARNESS
27	MAY W10137454
28	MAY W10001220
29	MAY W10018050
