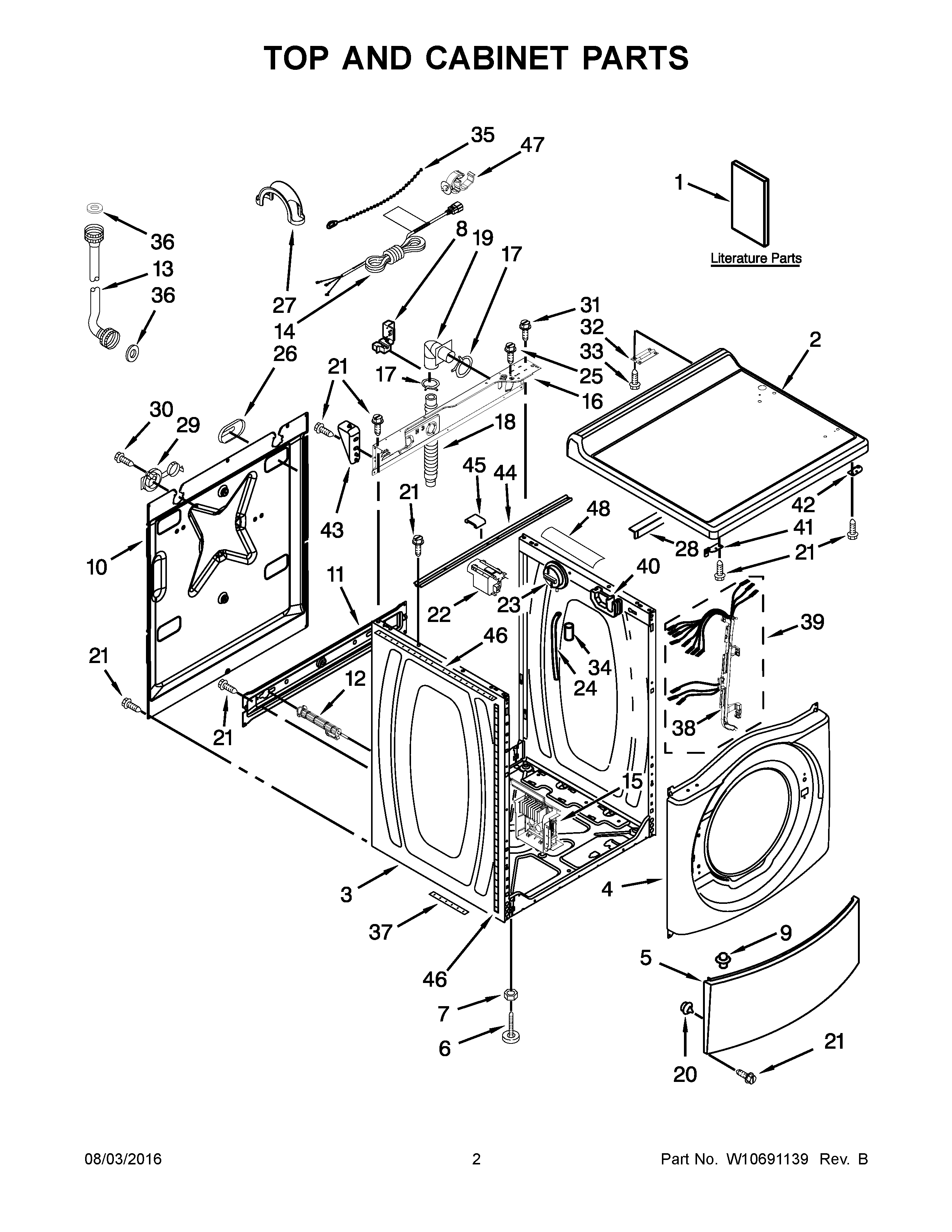

MHN33PDCGW0 02 – TOP AND CABINET PARTS

Products

Position	Product
NI	10A CORD LOCK
NI	DOOR LOCK- POWER
NI	MAY W10476818
NI	10A CORD ADAPTER (EUROPEAN)
NI	10A CORD ADAPTER (BRITISH)
NI	CCU TO MCU-SERIALCOMMUNICATION (3 POLE)
NI	MAY W10480265
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10691483
1B	MAY W10730272
1C	MAY W10730273
1A	MAY W10589783
2	MAY W10137411
3	MAY W10198145
4	MAY W10306505
5	TOE PANEL (WHITE)
6	MAY W10245373
7	Nut, 3/8-16
8	MAY W10110676
9	MAY 8518891
10	MAY W10258342
11	MAY W10189659
12	MAY W10251449
13	HOSE, WATER INLET (COLD)
13A	HOSE, WATER INLET (WARM)
14	CORD, POWER (NOT ILLUSTRATED)
15	MAY W10385821
16	MAY W10244560
17	MAY 356138
18	HOSE, DRAIN- OUTER
19	Connector, Drain Hose
20	MAY 238614
21	Screw, 8-18 x 5/8
22	MAY W10398805
23	MAY W10448876
24	MAY 8540294
25	SCREW, GROUNDING
26	MAY 8540268
27	U-Bend
28	MAY W10342663
29	MAY 8540728
30	SCREW
31	MAY 8540329
32	HINGE ASSEMBLY (WHITE)
33	MAY 342055
34	Sleeve, Pressure Switch Hose
35	MAY 3347868
36	ACCESSORY PARTS, WASHER, INLET HOSE
37	MAY W10693220
38	HARNESS CHANNEL, SIDE FRONT
39	MAY W10475277
40	MAY 8540643
41	MAY W10137445
42	MAY W10137444
43	MAY W10137398
44	MAY 8540721
45	MAY 8283273
46	SEAL-FOAM (IEC)
47	CLIP, HARNESS
48	MAY W10133515
