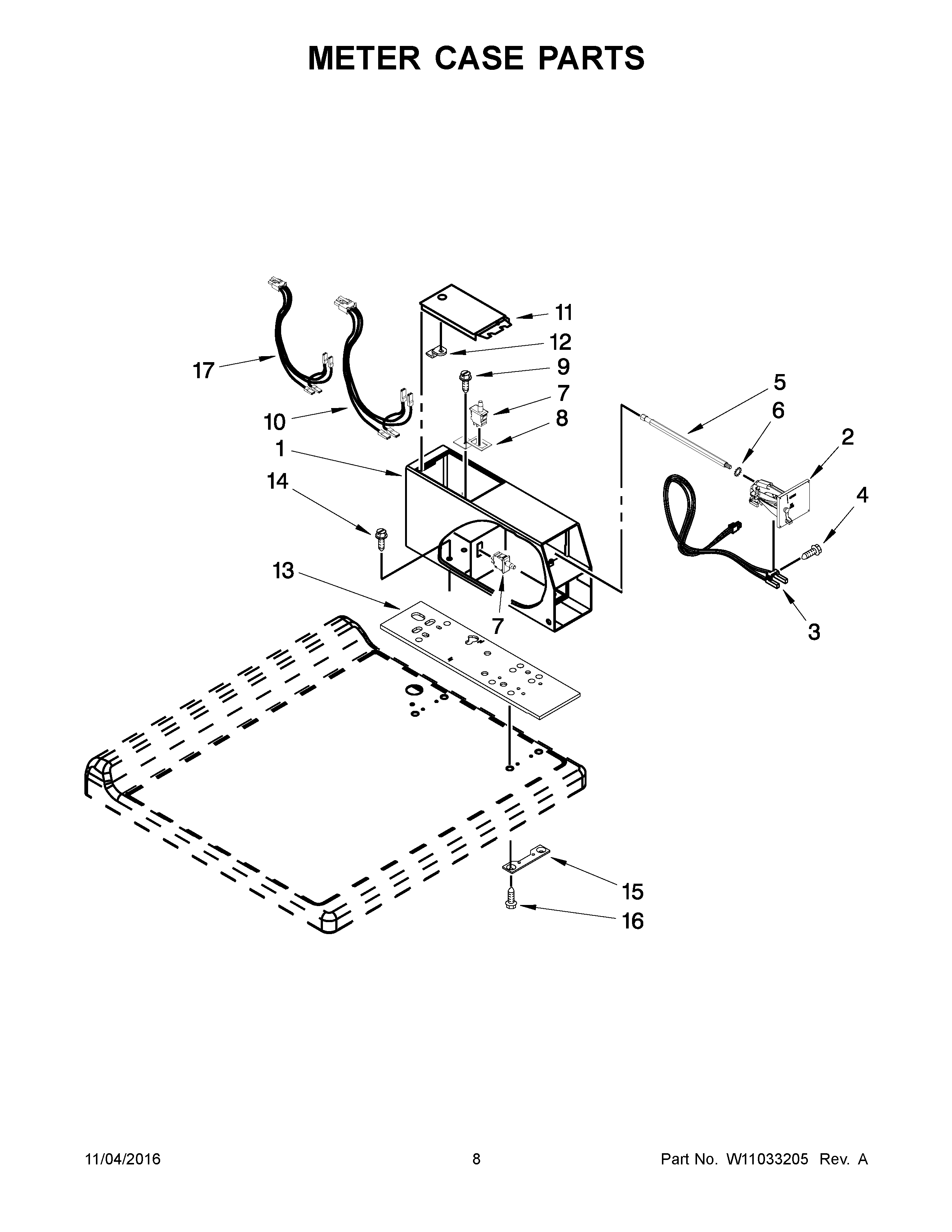

MHN33PDCWW1 05 – METER CASE PARTS

Written by

Products

Position	Product
1	CASE, METER
2	ASSEMBLY, SINGLE COIN DROP, MDE20PDAYW0
3	COIN-OPTIC SENSOR ASSEMBLY (WHITE)
4	SCREW
5	MAY W10137319
6	Washer
7	MAY W10131838
8	MAY W10133508
9	MAY W10139210
10	MAY W10211244
11	ASSEMBLY, SERVICE DOOR
12	CAM COMMERCIAL LOCK
13	MAY W10137448
14	BOLT
15	MAY 3347825
16	SCREW
17	MAY W10139456
