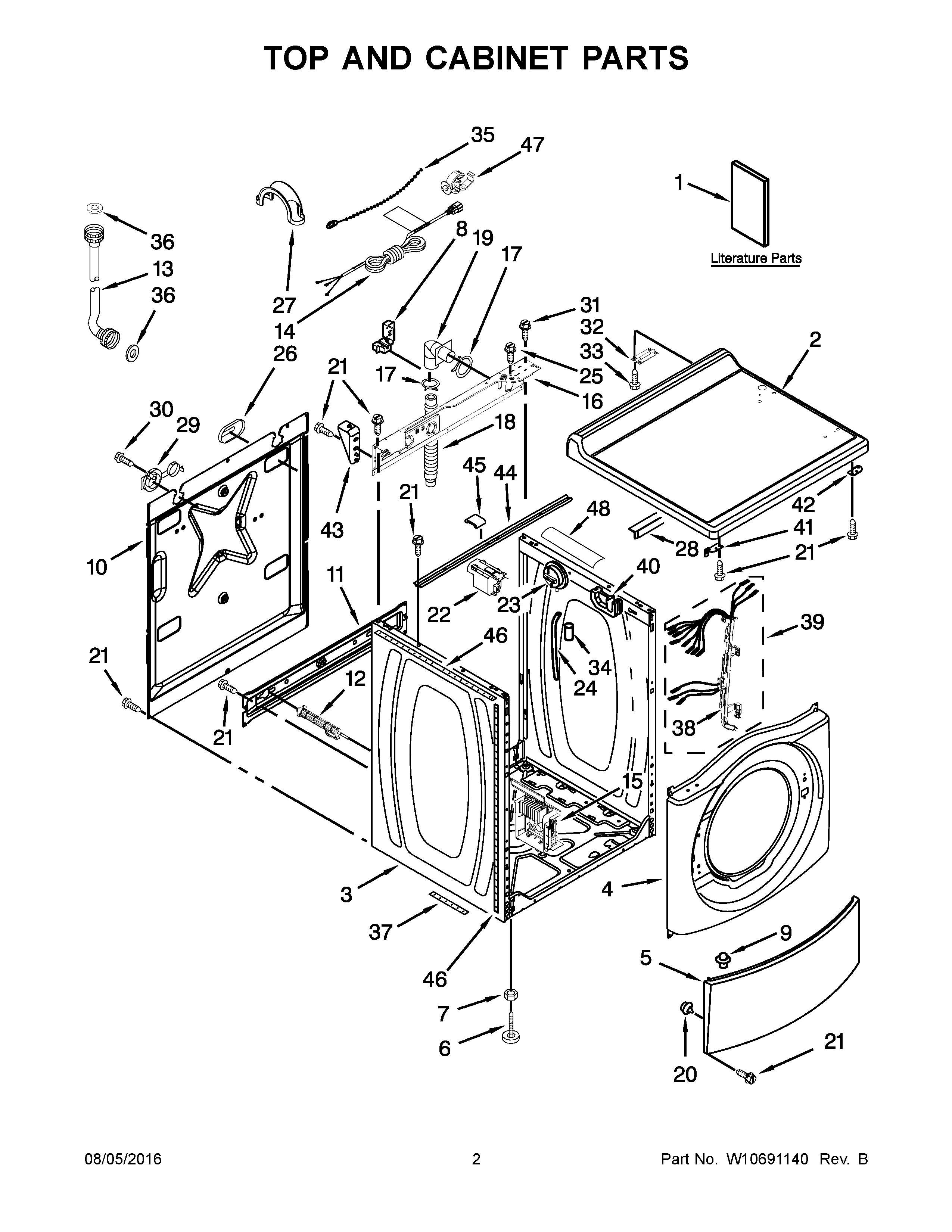

MHN33PNCGW0 02 – TOP AND CABINET PARTSadmin2025-04-26T13:10:10+00:00MHN33PNCGW0 02 – TOP AND CABINET PARTS
Products
| Position | Product |
|---|
| NI | 10A CORD LOCK |
| NI | DOOR LOCK- POWER |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | MAY W10476818 |
| NI | 10A CORD ADAPTER (EUROPEAN) |
| NI | 10A CORD ADAPTER (BRITISH) |
| NI | CCU TO MCU-SERIALCOMMUNICATION (3 POLE) |
| NI | MAY W10480265 |
| 1 | MAY W10691483 |
| 1B | MAY W10730272 |
| 1A | MAY W10589784 |
| 1C | MAY W10730273 |
| 2 | TOP (WHITE) |
| 3 | MAY W10198145 |
| 4 | MAY W10306505 |
| 5 | TOE PANEL (WHITE) |
| 6 | MAY W10245373 |
| 7 | Nut, 3/8-16 |
| 8 | MAY W10110676 |
| 9 | MAY 8518891 |
| 10 | MAY W10258342 |
| 11 | MAY W10189659 |
| 12 | MAY W10251449 |
| 13 | HOSE, WATER INLET (COLD) |
| 13A | HOSE, WATER INLET (WARM) |
| 14 | CORD, POWER (NOT ILLUSTRATED) |
| 15 | MAY W10385821 |
| 16 | MAY W10244560 |
| 17 | MAY 356138 |
| 18 | HOSE, DRAIN- OUTER |
| 19 | Connector, Drain Hose |
| 20 | MAY 238614 |
| 21 | Screw, 8-18 x 5/8 |
| 22 | MAY W10398805 |
| 23 | MAY W10448876 |
| 24 | MAY 8540294 |
| 25 | SCREW, GROUNDING |
| 26 | MAY 8540268 |
| 27 | U-Bend |
| 28 | MAY W10342663 |
| 29 | MAY 8540728 |
| 30 | SCREW |
| 31 | MAY 8540329 |
| 32 | HINGE ASSEMBLY (WHITE) |
| 33 | MAY 342055 |
| 34 | Sleeve, Pressure Switch Hose |
| 35 | MAY 3347868 |
| 36 | ACCESSORY PARTS, WASHER, INLET HOSE |
| 37 | MAY W10693220 |
| 38 | HARNESS CHANNEL, SIDE FRONT |
| 39 | MAY W10475277 |
| 40 | MAY 8540643 |
| 41 | MAY W10137445 |
| 42 | MAY W10137444 |
| 43 | MAY W10137398 |
| 44 | MAY 8540721 |
| 45 | MAY 8283273 |
| 46 | SEAL-FOAM (IEC) |
| 47 | CLIP, HARNESS |
| 48 | MAY W10133515 |
