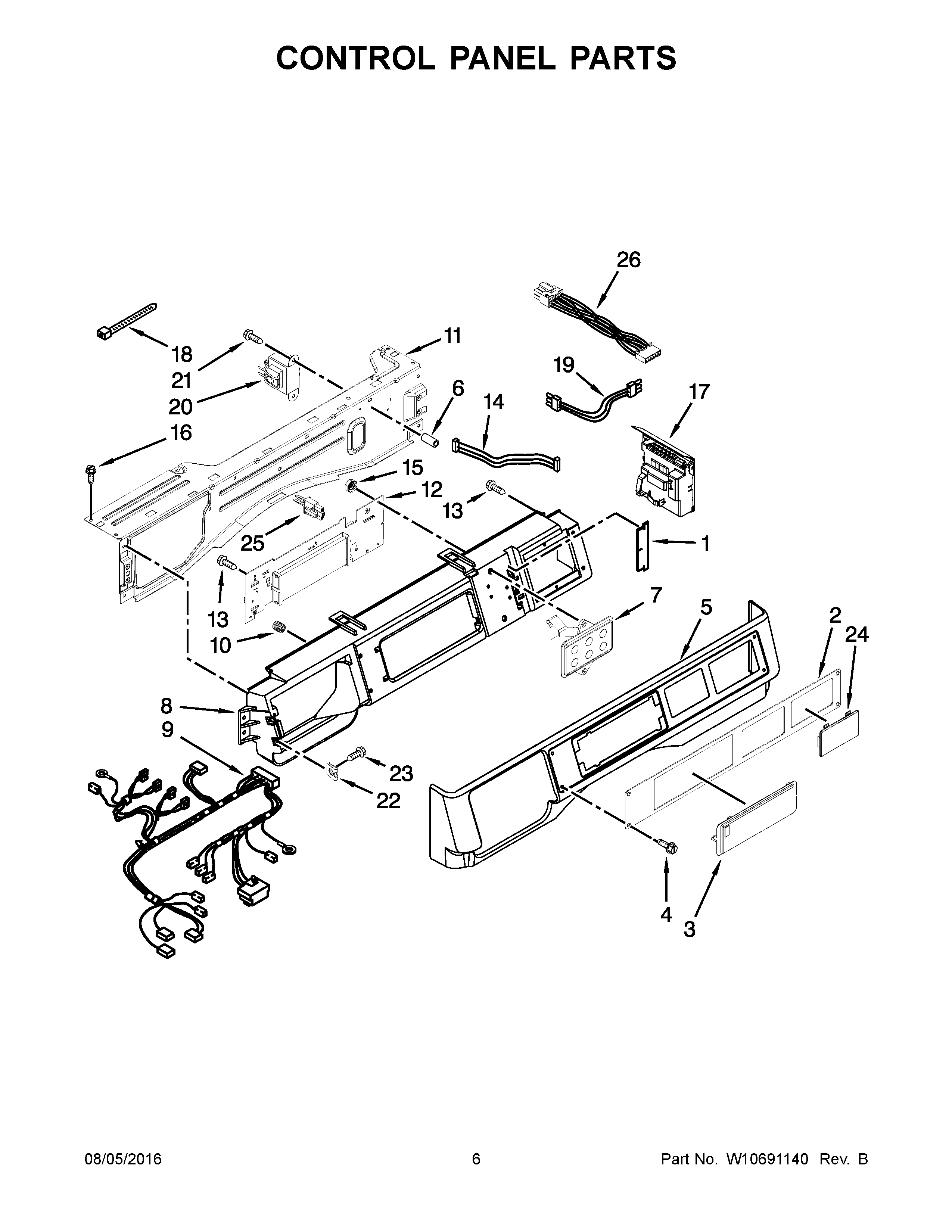

MHN33PNCGW0 04 – CONTROL PANEL PARTS

MHN33PNCGW0 04 – CONTROL PANEL PARTS

Written by

in

MHN33PNCGW0 04 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10187276
2	MAY W10801806
3	COVER, DISPLAY
4	SCREW
5	MAY W10779084
6	MAY W10018050
7	MAY W10787445
8	MAY W10137426
9	MAY W10810408
10	INSERT
11	MAY W10846488
12	MAY W10824280
13	MAY 489136
14	MAY W10155150
15	NUT
16	Screw, 8-18 x 5/8
17	MAY W10796128
18	MAY 3347868
19	MAY W10330606
20	TRANSFORMER, 240-22.5 VAC
21	MAY 8540329
22	CLIP(STLS.MODEL)
23	MAY W10131119
24	MAY W10213906
25	JUMPER, SWITCH SERVICE/VAULT
26	CARD READER, HARNESS
