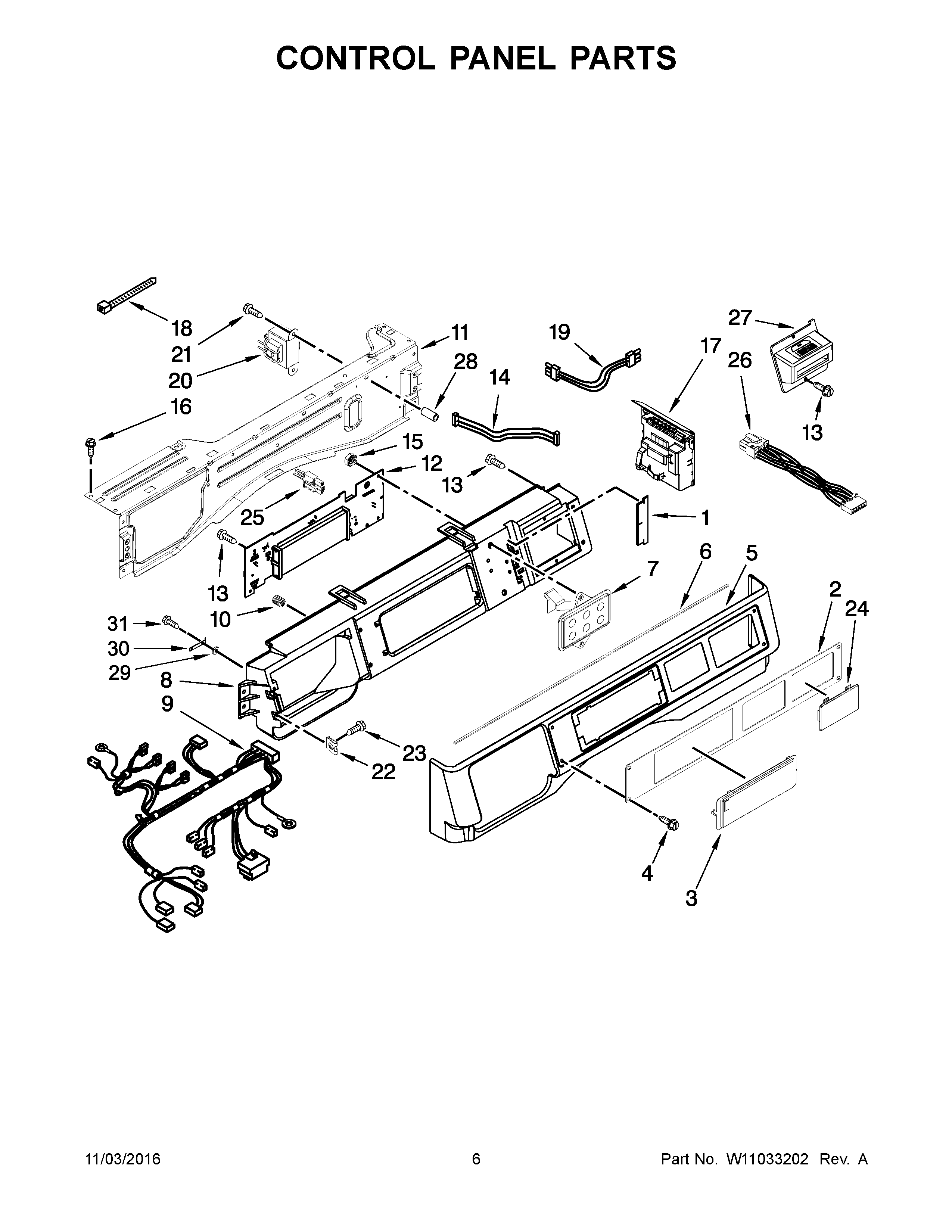

MHN33PRCWW1 04 – CONTROL PANEL PARTS

MHN33PRCWW1 04 – CONTROL PANEL PARTS

Written by

in

MHN33PRCWW1 04 – CONTROL PANEL PARTS

Products

Position	Product
NI	MAY W10689495
NI	MAY W10689496
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10187276
2	MAY W10801804
3	COVER, DISPLAY
4	SCREW
5	MAY W10779084
6	Foam Seal
7	MAY W10779139
8	MAY W10137426
9	MAY W10696115
10	INSERT
11	MAY W10846488
12	MAY W11033883
13	MAY 489136
14	MAY W10155150
15	NUT
16	Screw, 8-18 x 5/8
17	MAY W11033881
18	TIE, CABLE
19	MAY W10330606
20	MAY W10131839
21	MAY 8540329
22	CLIP(STLS.MODEL)
23	MAY W10131119
24	MAY W10213906
25	JUMPER, SWITCH SERVICE/VAULT
26	CARD READER, HARNESS
27	MAY W10137454
28	MAY W10018050
29	MAY W10189075
30	MAY 3373818
31	Screw 8-32 x 1/4
