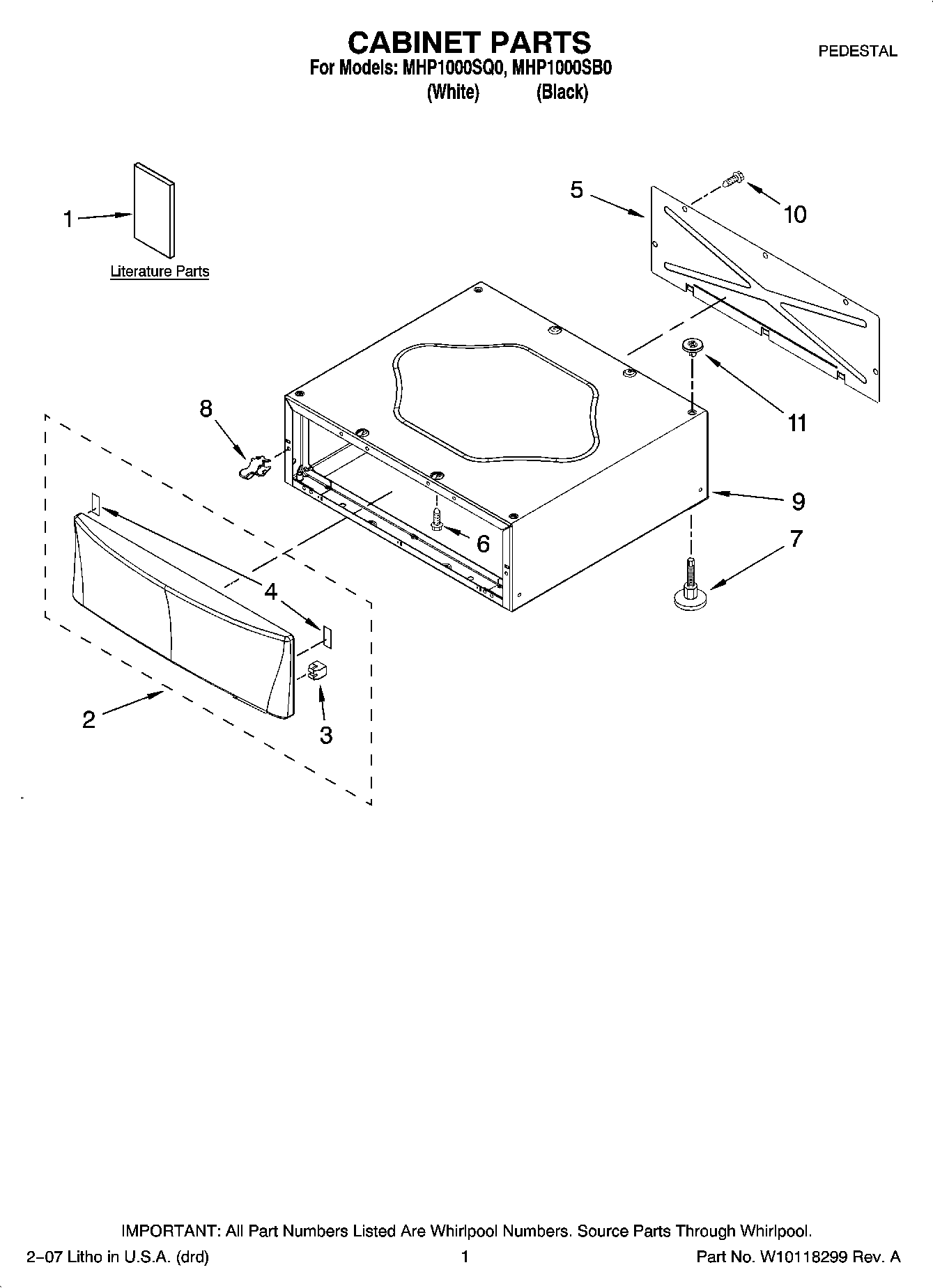

MHP1000SB0 01 – CABINET PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	72032 Whirlpool Touch Up Paint Black
	WPL 786020
1	Installation Instructions
2	Panel Asm, Front (Black)
2	WPW10111644 Whirlpool Front
3	279570 Whirlpool Dryer Door Latch Kit
4	Pad, Adhesive (4)
5	Panel, Rear
6	WPW10346892 Whirlpool Screw
7	WP8563585 Whirlpool Foot Assembly
9	Cabinet (Not Serviced)
10	WPW10213953 Whirlpool Screw
11	WP8537982 Whirlpool Pad
