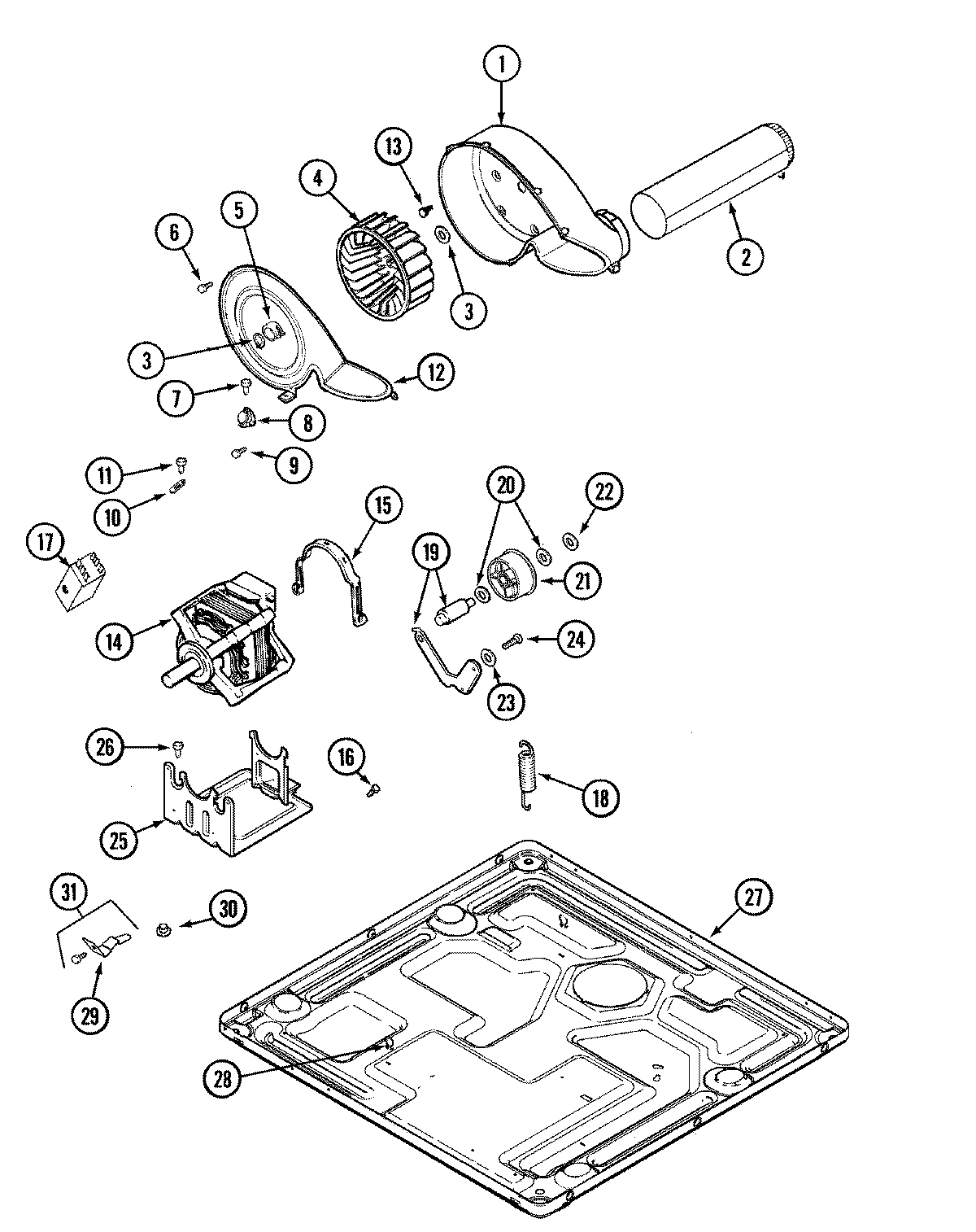

MHW2000AWW 14 – MOTOR DRIVE (DRYER)

MHW2000AWW 14 – MOTOR DRIVE (DRYER)

Written by

in

MHW2000AWW 14 – MOTOR DRIVE (DRYER)

Products

PositionProduct
1WP33001789 Whirlpool Blower Housing Assembly
2DUCT ASSY., EXHAUST
2MAY 33002321
3WP9703438 Whirlpool Snap Retaining Ring
433001790 Whirlpool Blower Wheel
5WP312967 Whirlpool Clamp
6WP3400065 Whirlpool Refrigerator Screw
10WP33001762 Whirlpool Dryer Thermal Fuse
11WP489128 Whirlpool Refrigerator Screw
12MAY 33001873
13MAY 314818
14MAY 33002462
14MAY 33002237
14W10410997 Whirlpool Drive Motor
15WPY015825 Whirlpool Motor Clip
16MAY 910343
17MAY 33001854
1833002459 Whirlpool Idler Spring
18MAY 33002461
18MAY 33002157
19WP6-3705180 Whirlpool Idler Pulley Lever
20MAY Y312527
21WP6-3700340 Whirlpool Belt Tension Pulley Wheel
22WP354987 Whirlpool C-Clip
23WP315772 Whirlpool Sleeve
24WPY014874 Whirlpool Screw
25MAY 33001752
25MAY 33002466
26MAY Y313561
27MAY 33002041
27MAY 33002623
27MAY 33002050
27MAY 33002049
27MAY 33002467
27MAY 314568
28MAY 410490
29MAY 33002043
29W11573574 Whirlpool Screw
29MAY 33002042
30MAY 33002044
31(INCL RT/LT BRKT & SCREWS)
