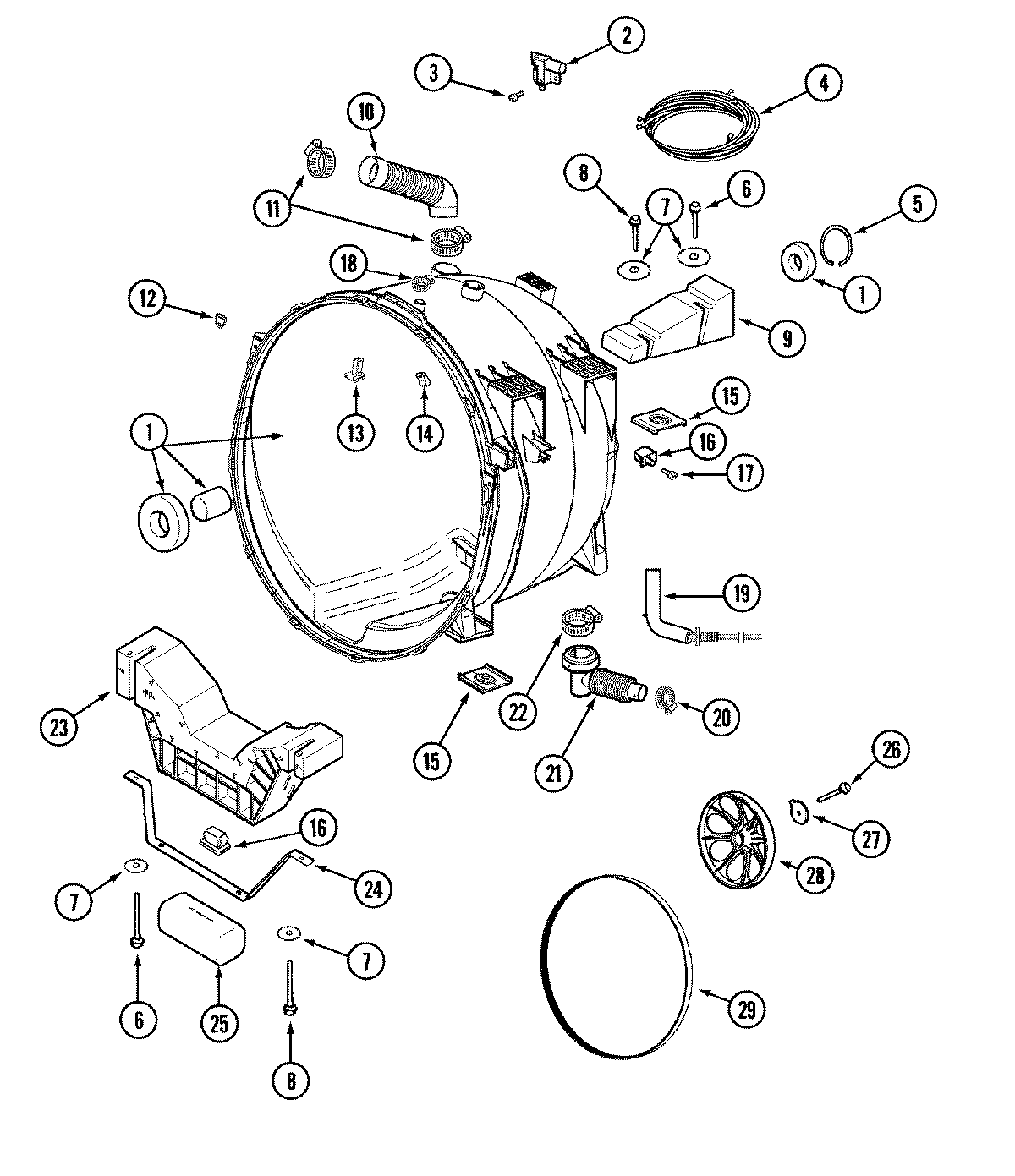

MHW2000AWW 15 – OUTER TUB (WASHER)

MHW2000AWW 15 – OUTER TUB (WASHER)

Written by

in

MHW2000AWW 15 – OUTER TUB (WASHER)

Products

PositionProduct
1MAY 22002154
2MAY 22002045
3WP9740848 Whirlpool Dishwasher Screw
4MAY 33002216
5MAY 22001981
6MAY 22001991
7MAY 22002067
8MAY 22002056
9MAY 22002102
10WP22002083 Whirlpool Injector Hose
11WP616099 Whirlpool Clamp
12MAY 22002103
1322004310 Whirlpool Water Deflector
15MAY 22002065
16WP22002044 Whirlpool Switch
17910187 Whirlpool Screw
18WP596669 Whirlpool Hose Clamp
19MAY 22002483
20WP285655 Whirlpool Hose Clamp
21WP22003262 Whirlpool Tub Hose Assembly
22WP696392 Whirlpool Hose Clamp
23MAY 22002579
23CLIP, WIRE HARNESS
24MAY 22002008
25MAY 22002011
26WP22003937 Whirlpool Screw
27WP22003936 Whirlpool Washer
28MAY 22001998
2912001788 Whirlpool Washer Drive Belt & Isolator Kit
