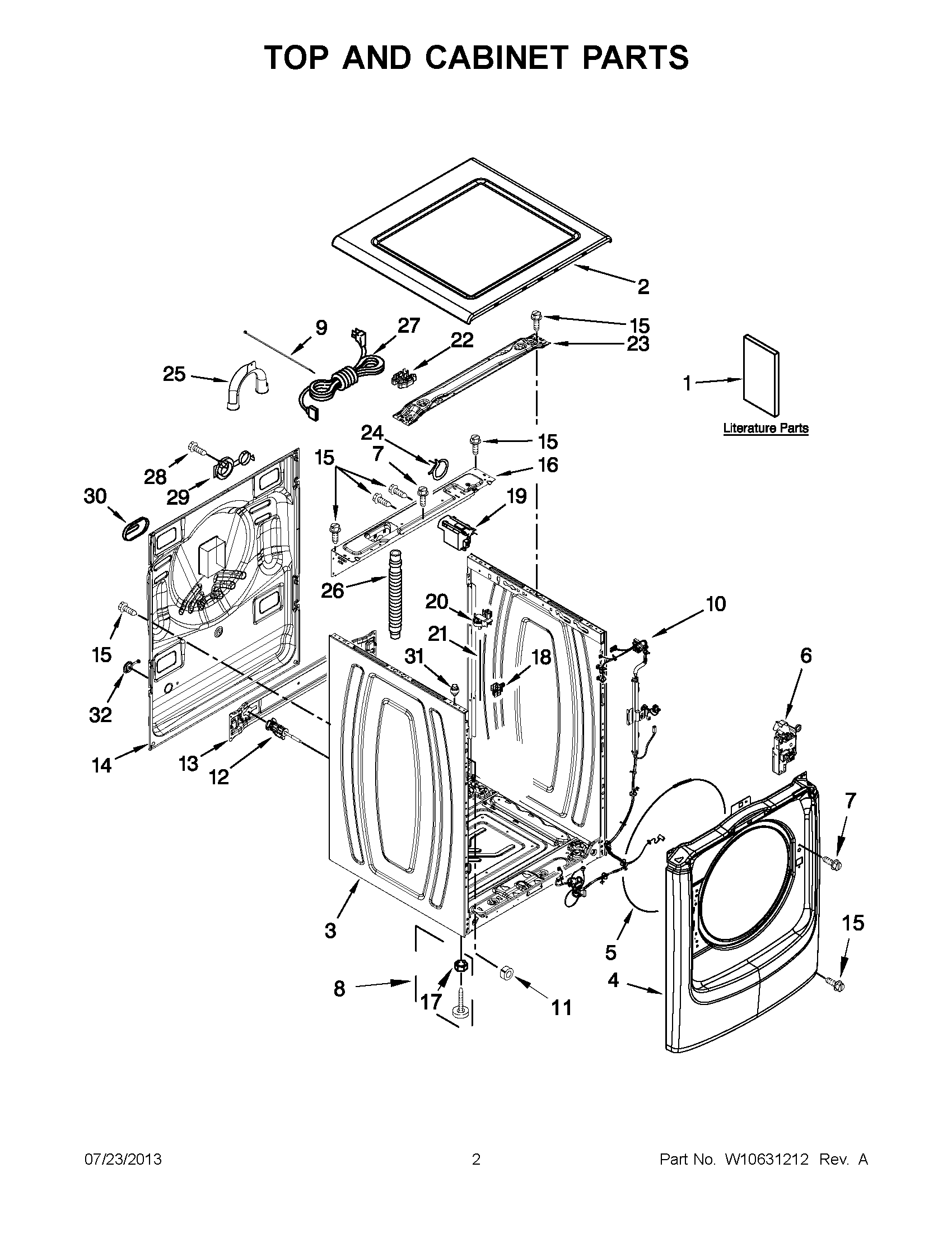

MHW3000BG1 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10441082
1MAY W10441091
1MAY W10441077
1MAY W10441093
2TOP (COSMETALLIC)
2TOP (WHITE)
3MAY W10441108
3MAY W10441110
4MAY W10441121
4MAY W10441119
5MAY W10237503
6MAY W10443885
7MAY 8540282
8LEVELING LEG ASSEMBLY
9TIE, CABLE
10MAY W10441667
11MAY W10615477
12BOLT, SHIPPING (UPPER)
12BOLT, SHIPPING
13MAY W10237498
14MAY W10568353
15SCREW
16MAY W10467483
17Nut, 3/8-16
18MAY W10181028
19MAY W10367632
20MAY W10448876
21MAY W10575417
22RETAINER, SPRING
23BRACE, TOP
24MAY 356138
25MAY W10280024
26MAY W10267638
27MAY W10434975
28SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
29COVER, POWER CORD-TRANSPORT
30MAY 8182700
31SCREW AND BUSHING ASSEMBLY
32MAY W10304004
