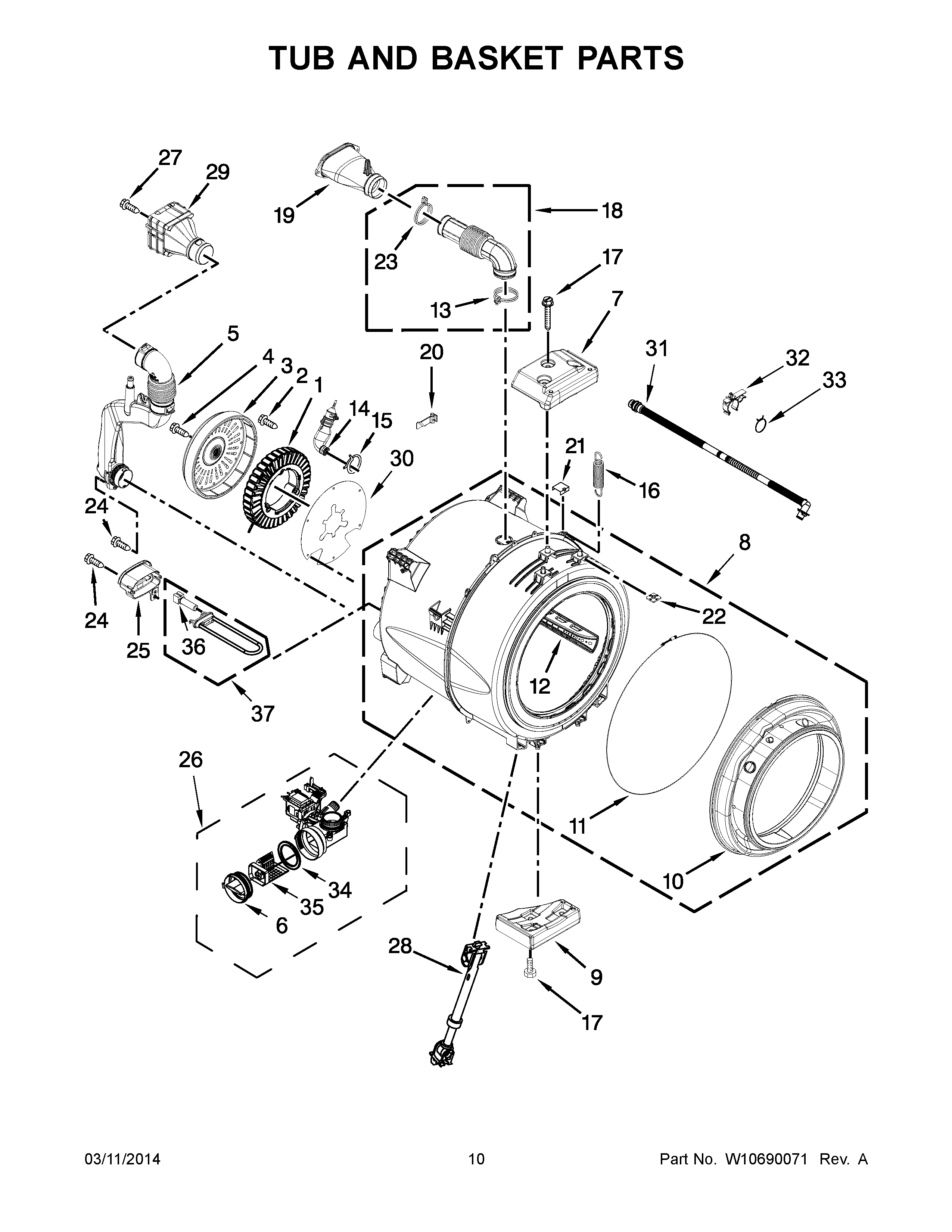

MHW3100DW0 06 – TUB AND BASKET PARTS
Written by
in
MHW3100DW0 06 – TUB AND BASKET PARTS
Products
Position
Product
1
MAY W10453672
2
MAY W10253476
3
MAY W10453673
4
MAY W10253477
5
MAY W10261582
6
CAP, FILTER
7
MAY W10452854
8
MAY W10608749
9
MAY W10452855
10
MAY W10474367
11
MAY W10237502
12
MAY W10597205
13
MAY W10353599
14
MAY W10626116
15
Hose, Clamp
16
MAY W10312146
17
MAY W10261496
18
MAY W10568614
19
MAY W10352818
20
MAY W10316388
21
MAY 8540092
22
MAY 8540072
23
CLAMP, VENT HOSE
24
SCREW
25
MAY W10318155
26
PUMP (COMPLETE)
27
MAY 8540282
28
MAY W10312625
29
MAY W10628719
30
MAY W10490826
31
DRAIN HOSE (INTERNAL)
32
BRACKET, MOUNTING
33
MAY W10151157
34
SEAL, FILTER CAP
35
FILTER, ELEMENT
36
MAY W10467289
37
MAY W10570145
←
