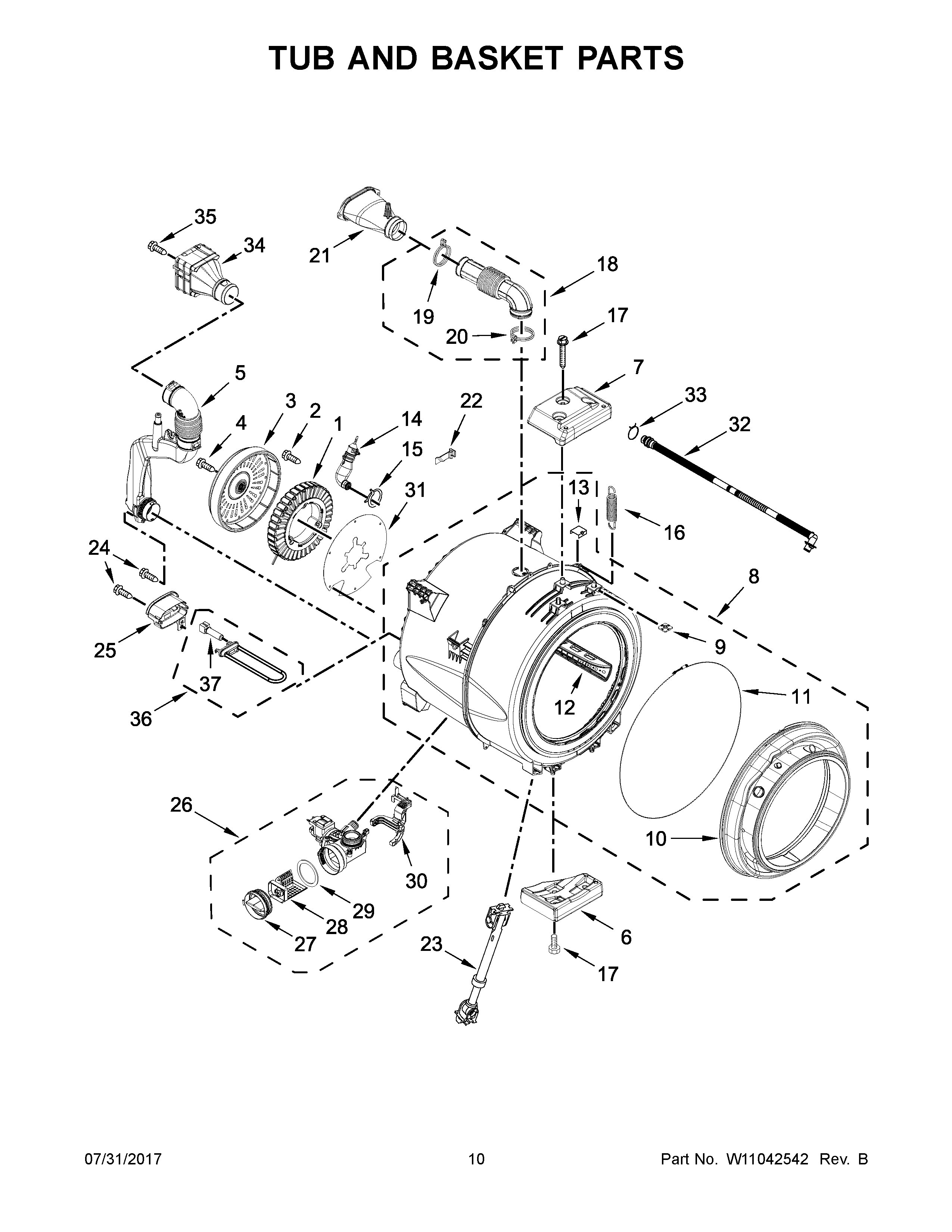

MHW3505FW1 06 – TUB AND BASKET PARTS

MHW3505FW1 06 – TUB AND BASKET PARTS

Written by

in

MHW3505FW1 06 – TUB AND BASKET PARTS

Products

Position	Product
1	STATOR, MOTOR
2	MAY W10253476
3	MAY W10544980
4	MAY W10253477
5	MAY W10261582
6	MAY W10237535
7	MAY W10253014
8	MAY W10839953
9	MAY 8540072
10	MAY W10340443
11	MAY W10237502
12	MAY W10597205
13	MAY W10793364
14	MAY W10831586
15	Hose, Clamp
16	MAY W10312146
17	MAY W10261496
18	MAY W10568614
19	CLAMP, VENT HOSE
20	MAY W10353599
21	MAY W10352818
22	MAY W10316388
23	MAY W10312625
24	SCREW
25	MAY W10318155
26	PUMP (COMPLETE)
27	CAP, FILTER
28	FILTER, ELEMENT
29	SEAL, FILTER CAP
30	BRACKET, MOUNTING
31	MAY W10490826
32	DRAIN HOSE (INTERNAL)
33	MAY W10151157
34	MAY W10467494
35	MAY 8540282
36	MAY W10570145
37	MAY W10467289
