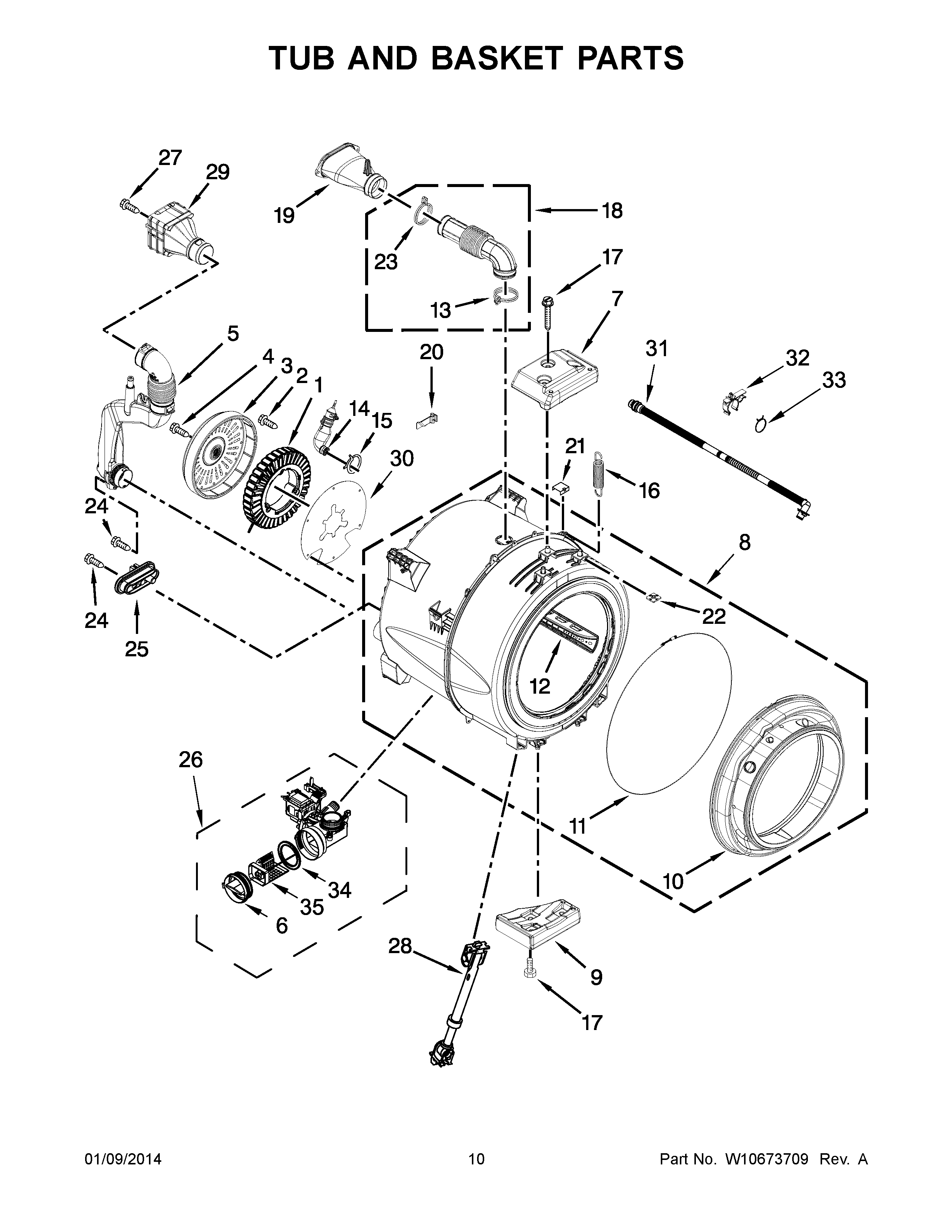

MHW4000BW2 06 – TUB AND BASKET PARTS

MHW4000BW2 06 – TUB AND BASKET PARTS

Written by

in

MHW4000BW2 06 – TUB AND BASKET PARTS

Products

Position	Product
1	MAY W10453672
2	MAY W10253476
3	MAY W10453673
4	MAY W10253477
5	MAY W10261582
6	CAP, FILTER
7	MAY W10452854
8	MAY W10551409
9	MAY W10452855
10	MAY W10340443
11	MAY W10237502
12	MAY W10279544
13	MAY W10353599
14	MAY W10626116
15	Hose, Clamp
16	MAY W10312146
17	MAY W10261496
18	MAY W10568614
19	MAY W10352818
20	MAY W10316388
21	MAY 8540092
22	MAY 8540072
23	CLAMP, VENT HOSE
24	SCREW
25	MAY W10442461
26	PUMP (COMPLETE)
27	MAY 8540282
28	MAY W10312625
29	MAY W10628719
30	MAY W10490826
31	DRAIN HOSE (INTERNAL)
32	BRACKET, MOUNTING
33	MAY W10151157
34	SEAL, FILTER CAP
35	FILTER, ELEMENT
