MHW5100DW0 06 – TUB AND BASKET PARTS – Aparts

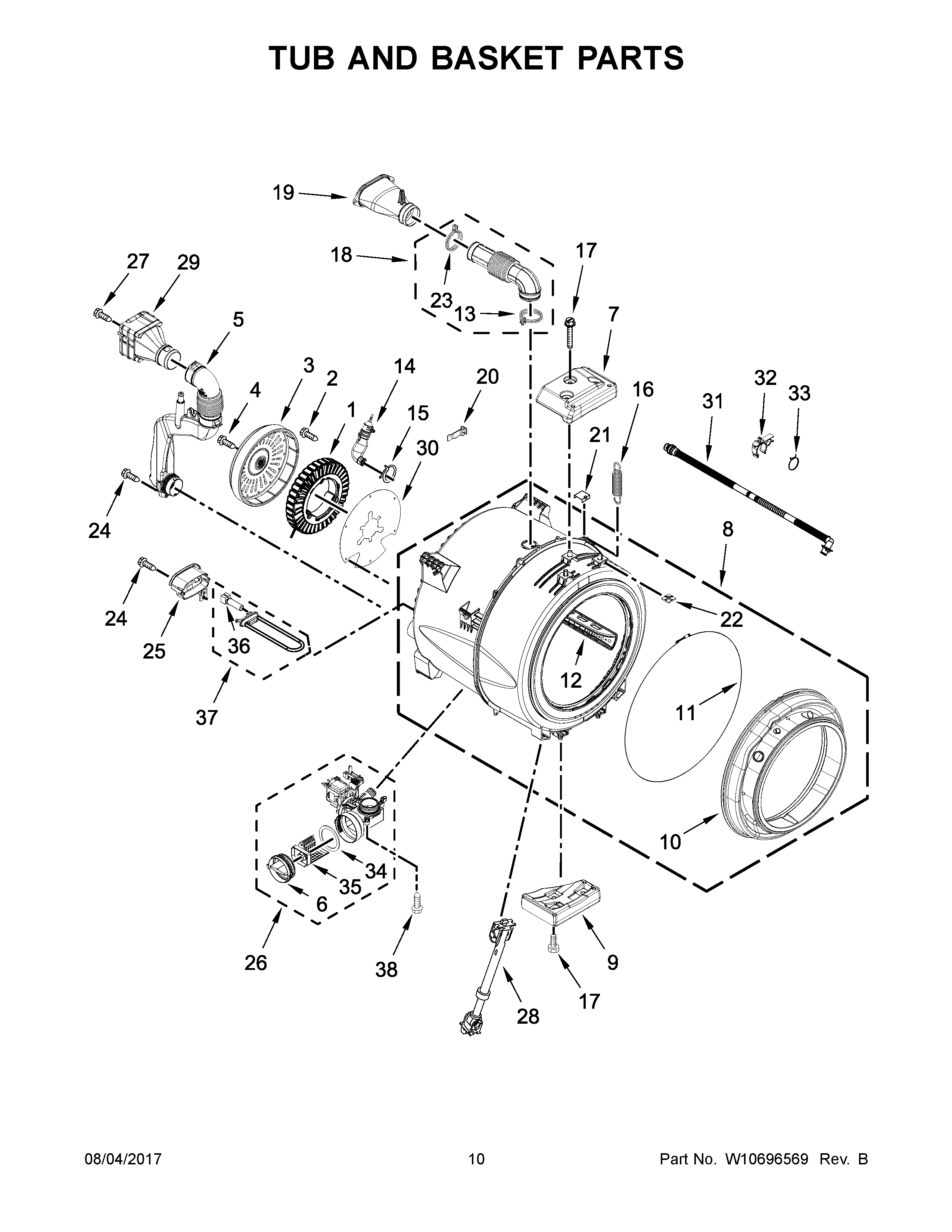

MHW5100DW0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	MAY W10657810
2	MAY W10253476
3	MAY W10544980
4	MAY W10253477
5	PIPE, VENTILATION ASSEMBLY
6	CAP, FILTER
7	MAY W10253014
8	MAY W10820070
9	MAY W10237535
10	MAY W10340443
11	MAY W10237502
12	MAY W10597205
13	MAY W10353599
14	MAY W10831586
15	Hose, Clamp
16	MAY W10312146
17	MAY W10261496
18	MAY W10568614
19	MAY W10352818
20	MAY W10316388
21	MAY W10793364
22	MAY 8540072
23	CLAMP, VENT HOSE
24	SCREW
25	MAY W10318155
26	MAY W10799064
27	MAY 8540282
28	MAY W10312625
29	MAY W10467494
30	MAY W10490826
31	DRAIN HOSE (INTERNAL)
32	MAY W10798323
33	MAY W10151157
34	SEAL, FILTER CAP
35	FILTER, ELEMENT
36	MAY W10467289
37	MAY W10570145
38	SCREW
