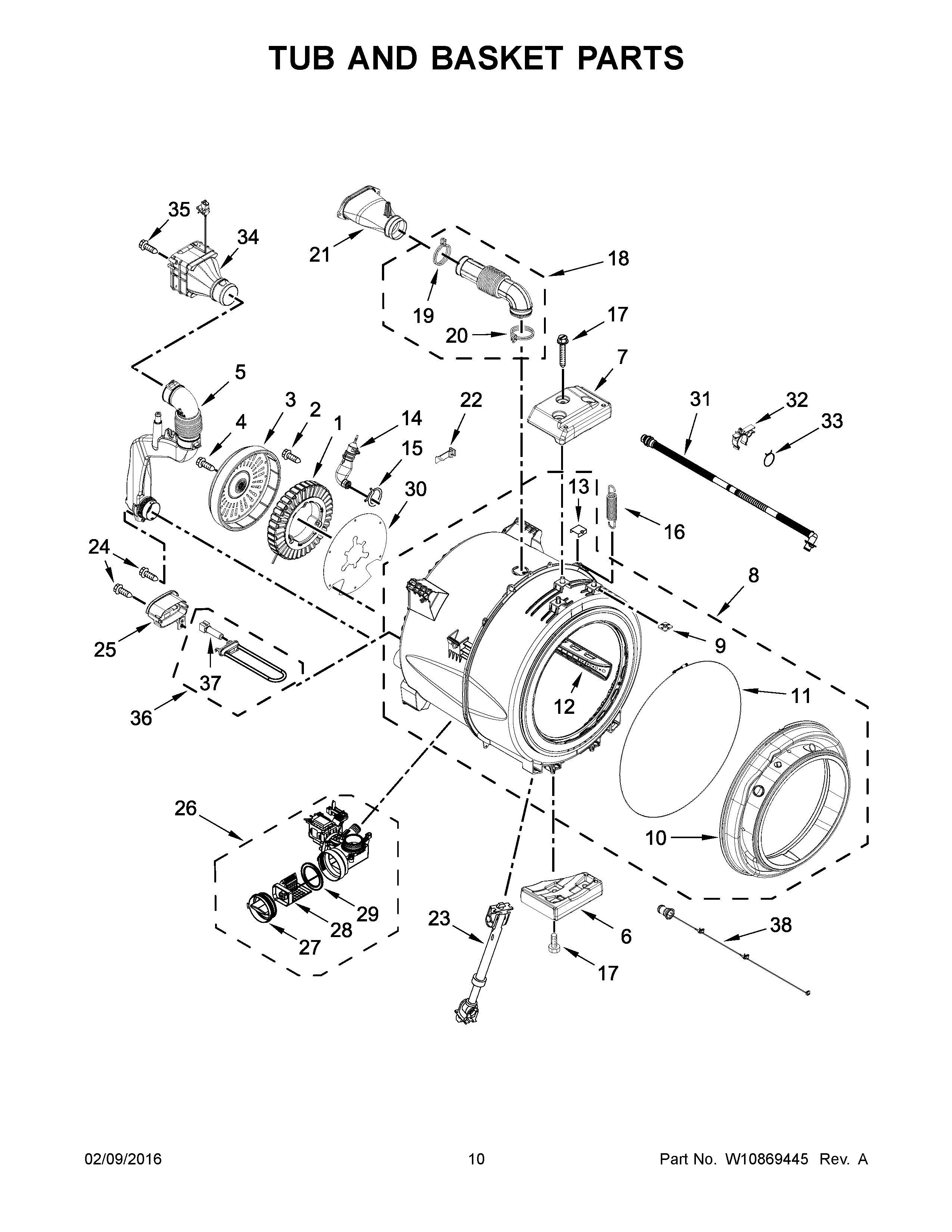

MHW5500FC0 06 – TUB AND BASKET PARTS
Written by
in
MHW5500FC0 06 – TUB AND BASKET PARTS
Products
Position
Product
1
STATOR, MOTOR
2
MAY W10253476
3
MAY W10544980
4
MAY W10253477
5
MAY W10261582
6
MAY W10237535
7
MAY W10253014
8
TUB ASSEMBLY, DRUM
9
MAY 8540072
10
BELLOW
11
MAY W10237502
12
MAY W10597205
13
MAY W10793364
14
MAY W10626116
15
Hose, Clamp
16
MAY W10312146
17
MAY W10261496
18
MAY W10568614
19
CLAMP, VENT HOSE
20
MAY W10353599
21
MAY W10352818
22
MAY W10316388
23
MAY W10312625
24
SCREW
25
MAY W10318155
26
PUMP (COMPLETE)
27
CAP, FILTER
28
FILTER, ELEMENT
29
SEAL, FILTER CAP
30
MAY W10490826
31
DRAIN HOSE (INTERNAL)
32
BRACKET, MOUNTING
33
MAY W10151157
34
MAY W10434964
35
MAY 8540282
36
MAY W10570145
37
MAY W10467289
38
MAY W10468922
←
