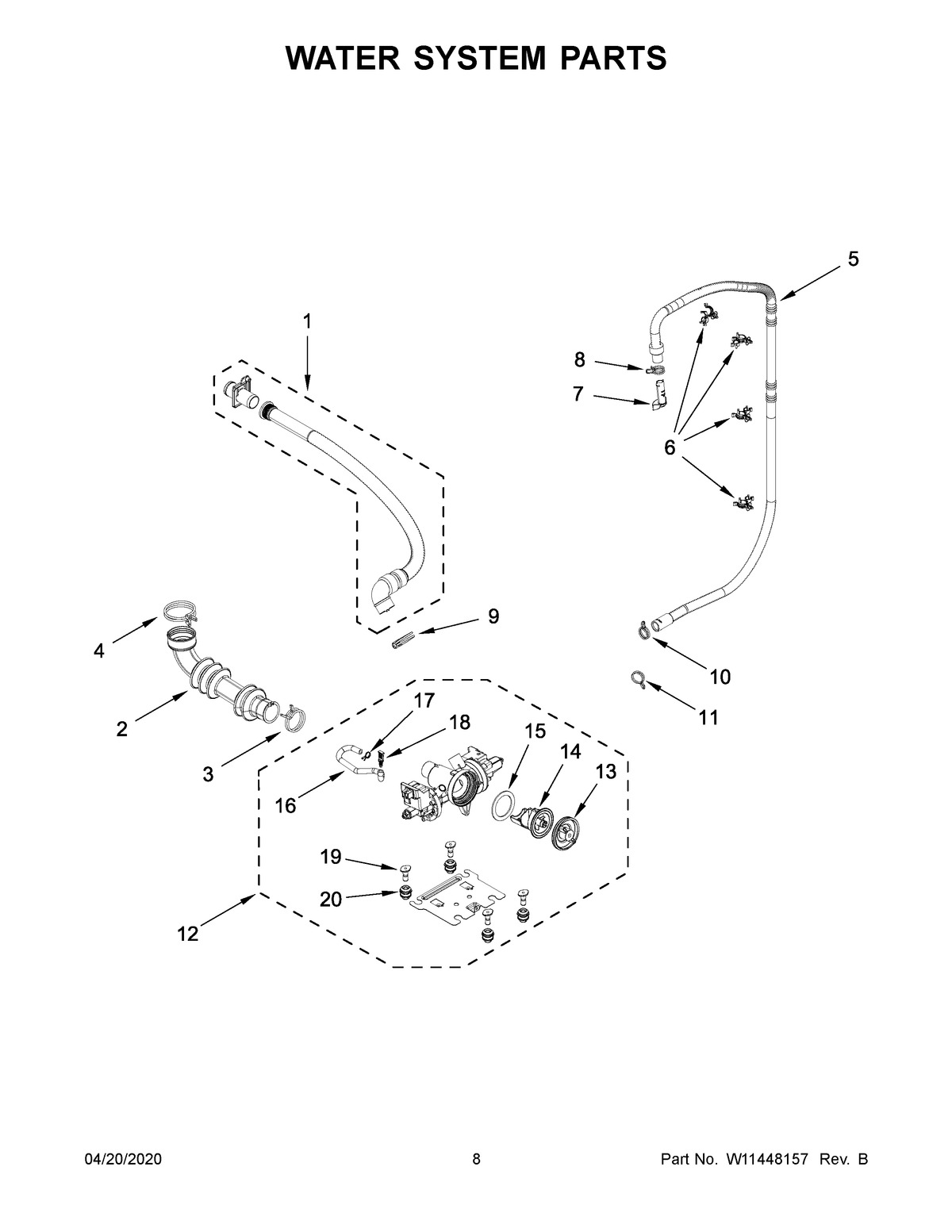

MHW5630HC1 05 – WATER SYSTEM PARTS

Products

PositionProduct
1ASSEMBLY, DRAIN HOSE
2HOSE, TUB TO PUMP
3MAY 370448
4CLAMP, VENT HOSE
5HOSE, PUMP TO BELLOW
6CLIP, HOSE
7NOZZLE, WATER
8MAY 371503
9MAY 356138
10CLAMP, HOSE
11CLAMP, HOSE
12ASSEMBLY, PUMP
13CAP, FILTER
14FILTER, PUMP
15SEAL, FILTER CAP
16HOSE, DRAIN (PUMP)
17CLAMP, HOSE
18PLUG, DRAIN (PUMP)
19GROMMET, PIN (PUMP)
20GROMMET (PUMP)
