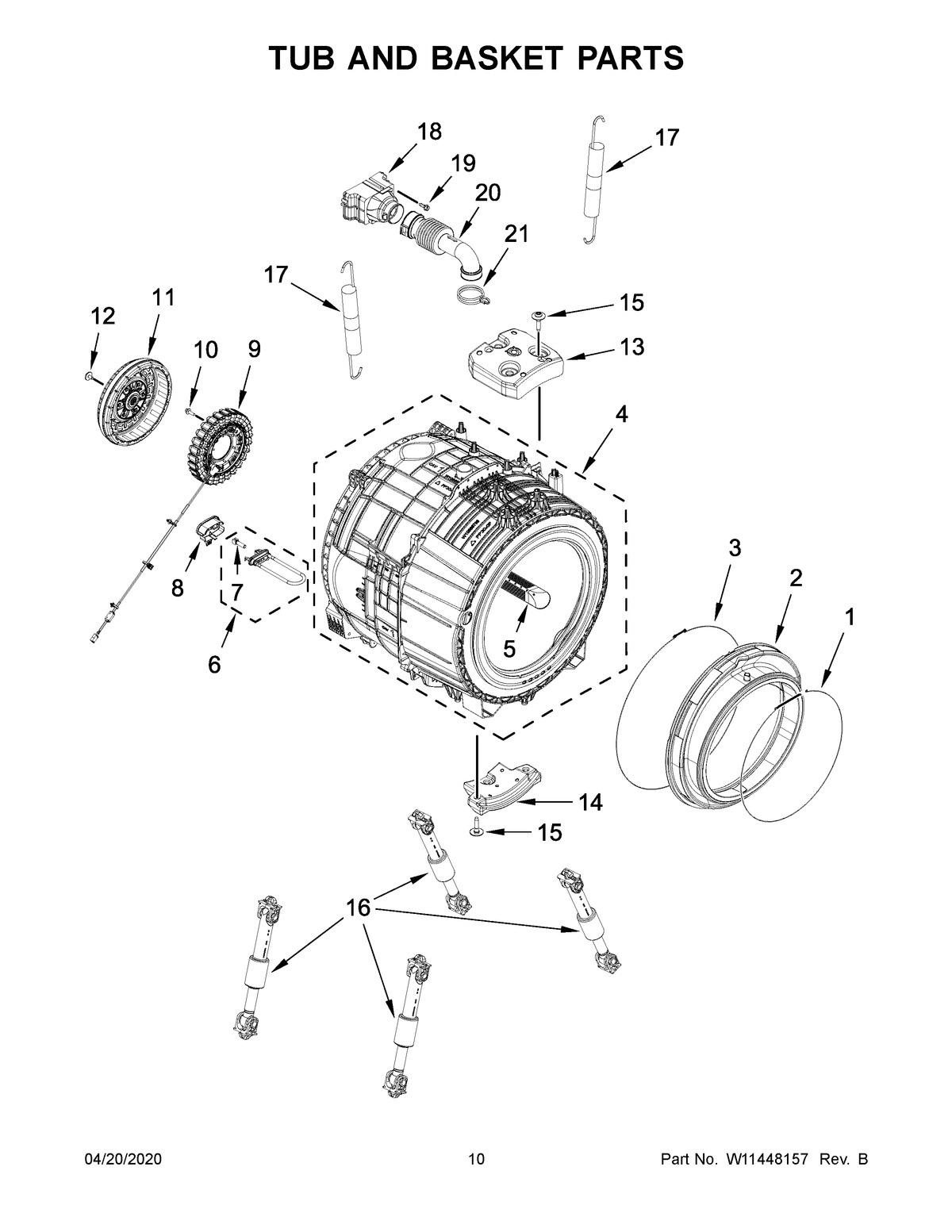

MHW5630HW1 06 – TUB AND BASKET PARTS

Products

PositionProduct
1RETAINER, FRONT PANEL TO BELLOW
2BELLOW
3RETAINER, BELLOW TO TUB
4ASSEMBLY, TUB AND DRUM
5BAFFLE, DRUM
6ASSEMBLY, HEATER
7SENSOR, NTC
8SHIELD, HEATER
9STATOR, MOTOR
10SCREW, STATOR
11ROTOR, MOTOR
12SCREW, ROTOR
13COUNTERWEIGHT, TOP
14COUNTERWEIGHT, BOTTOM
15SCREW, COUNTERWEIGHT
16DAMPER ASSEMBLY
17SPRING, SUSPENSION
18ENCLOSURE, VENT
19MAY 8540513
20HOSE, VENTILATION
21MAY 371507
