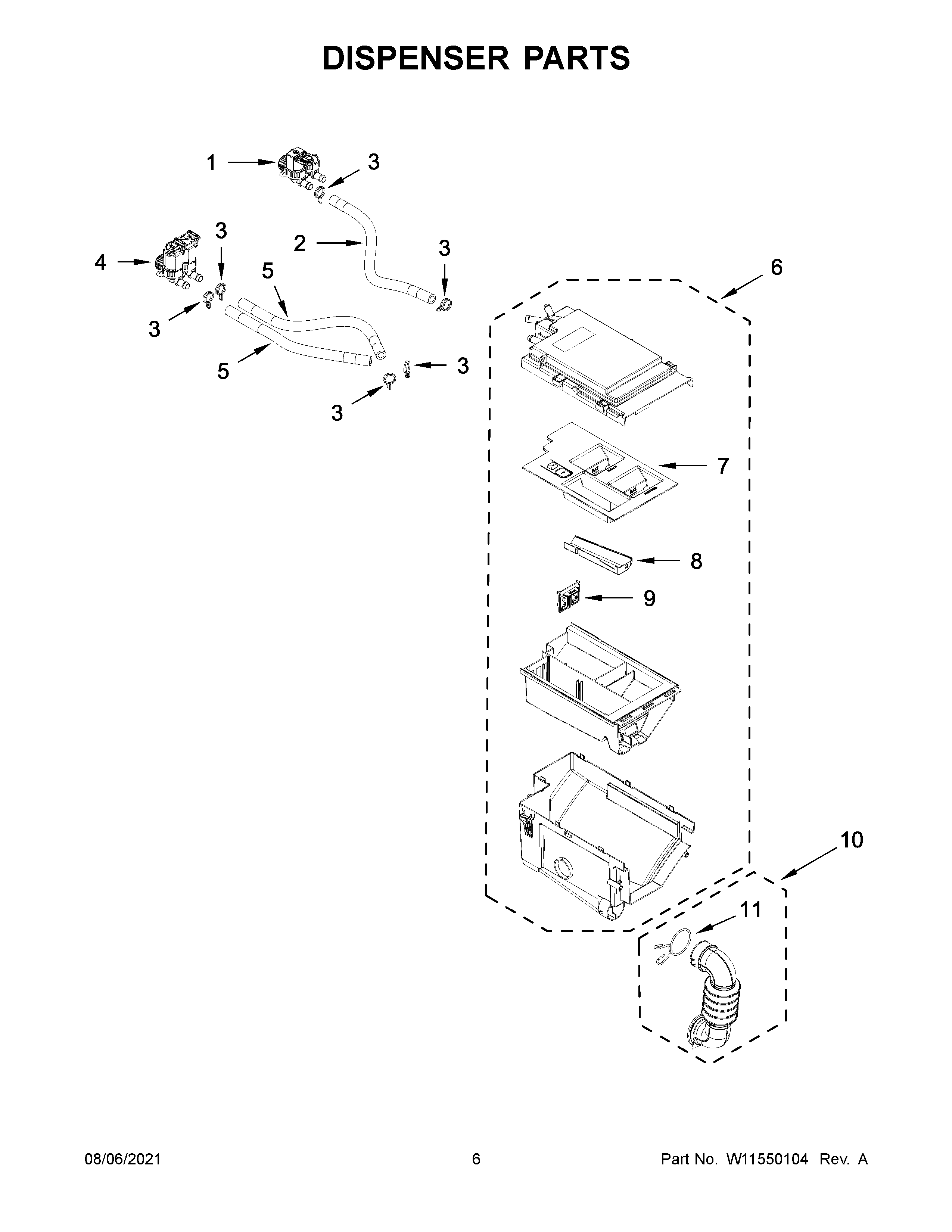

MHW5630HW3 04 – DISPENSER PARTS

Products

Position	Product
1	VALVE
2	W11316257 Whirlpool Hose
3	WP596669 Whirlpool Hose Clamp
4	W11688995 Whirlpool Valve
5	W11316599 Whirlpool Hose
6	DRAWER
7	W11316601 Whirlpool Microwave Dispenser
8	W11316375 Whirlpool Cover Assembly
9	W11316603 Whirlpool Divider Assembly
10	W11316604 Whirlpool Hose
11	W10239910 Whirlpool Clamp
