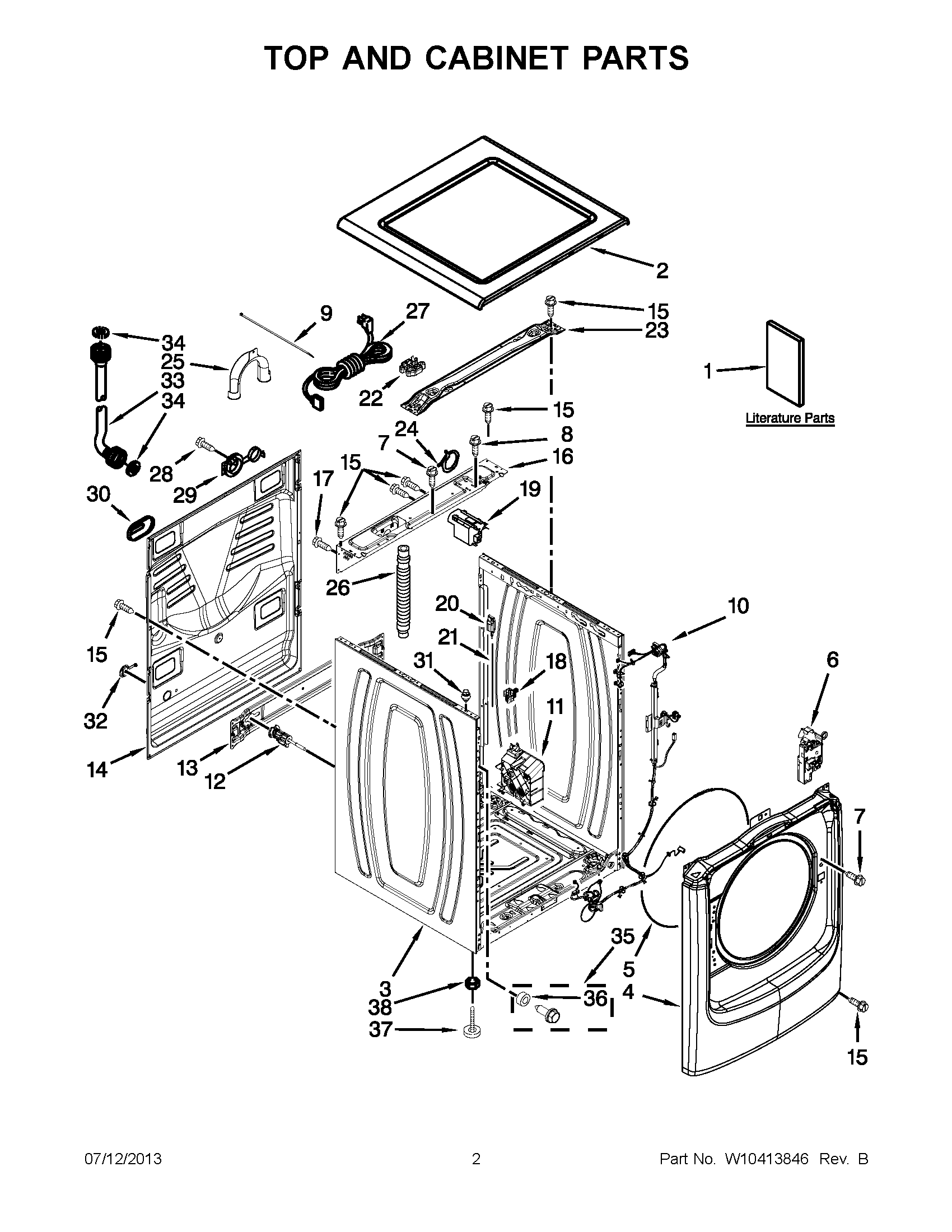

MHW6000XR2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10254489
1	MAY W10254447
1	MAY W10254495
1	MAY W10254474
2	TOP (COSMETALLIC)
2	TOP (WHITE)
2	MAY W10337799
3	MAY W10441108
3	MAY W10441110
3	MAY W10441106
4	MAY W10441119
4	MAY W10441117
4	MAY W10441121
5	MAY W10237503
6	LOCK,DOOR
7	MAY 8540282
8	MAY 8540329
9	TIE, CABLE
10	MAY W10339734
11	MAY W10374126
12	MAY W10271590
13	MAY W10237498
14	MAY W10502639
15	SCREW
16	MAY W10467483
17	MAY W10305097
18	MAY W10181028
19	MAY W10367632
20	MAY W10304342
21	MAY W10251962
22	RETAINER, SPRING
23	BRACE, TOP
24	MAY 356138
25	MAY W10280024
26	MAY W10267638
27	MAY W10434975
28	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
29	COVER, POWER CORD-TRANSPORT
30	MAY 8182700
31	SCREW AND BUSHING ASSEMBLY
32	MAY W10304004
33	Hose, Water Inlet (Cold Water)
33	MAY W10194209
34	ACCESSORY PARTS, WASHER, HOSE
35	MAY W10298211
36	MAY W10323182
37	MAY W10001130
38	Nut, 3/8-16
