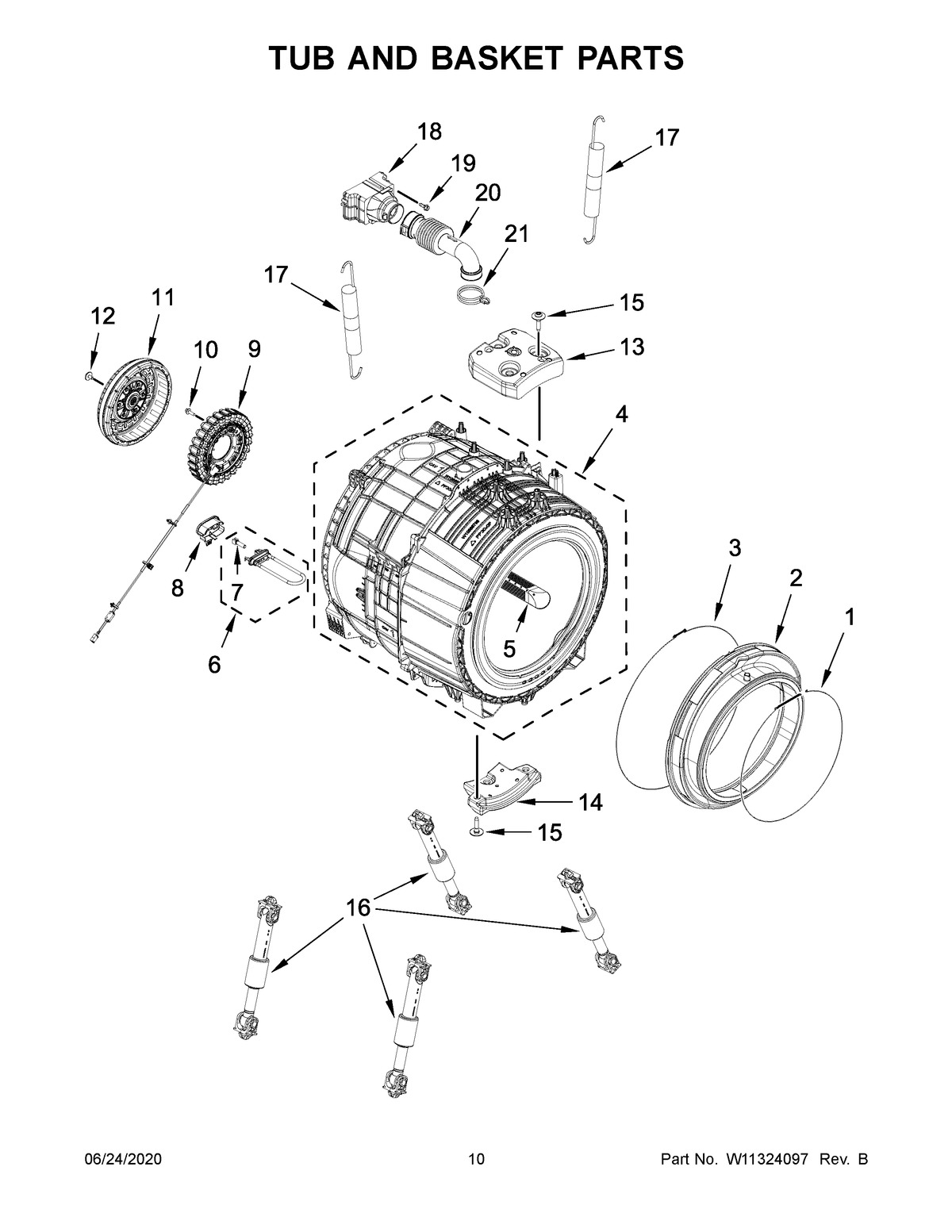

MHW6630HC0 06 – TUB AND BASKET PARTSadmin2025-04-26T13:10:05+00:00MHW6630HC0 06 – TUB AND BASKET PARTS
Products
| Position | Product |
|---|
| 1 | RETAINER, FRONT PANEL TO BELLOW |
| 2 | BELLOW |
| 3 | RETAINER, BELLOW TO TUB |
| 4 | ASSEMBLY, TUB AND DRUM |
| 5 | BAFFLE, DRUM |
| 6 | ASSEMBLY, HEATER |
| 7 | SENSOR, NTC |
| 8 | SHIELD, HEATER |
| 9 | STATOR, MOTOR |
| 10 | SCREW, STATOR |
| 11 | ROTOR, MOTOR |
| 12 | SCREW, ROTOR |
| 13 | COUNTERWEIGHT, TOP |
| 14 | COUNTERWEIGHT, BOTTOM |
| 15 | SCREW, COUNTERWEIGHT |
| 16 | DAMPER ASSEMBLY |
| 17 | SPRING, SUSPENSION |
| 18 | ENCLOSURE, VENT/FAN |
| 19 | MAY 8540513 |
| 20 | HOSE, VENTILATION |
| 21 | MAY 371507 |
