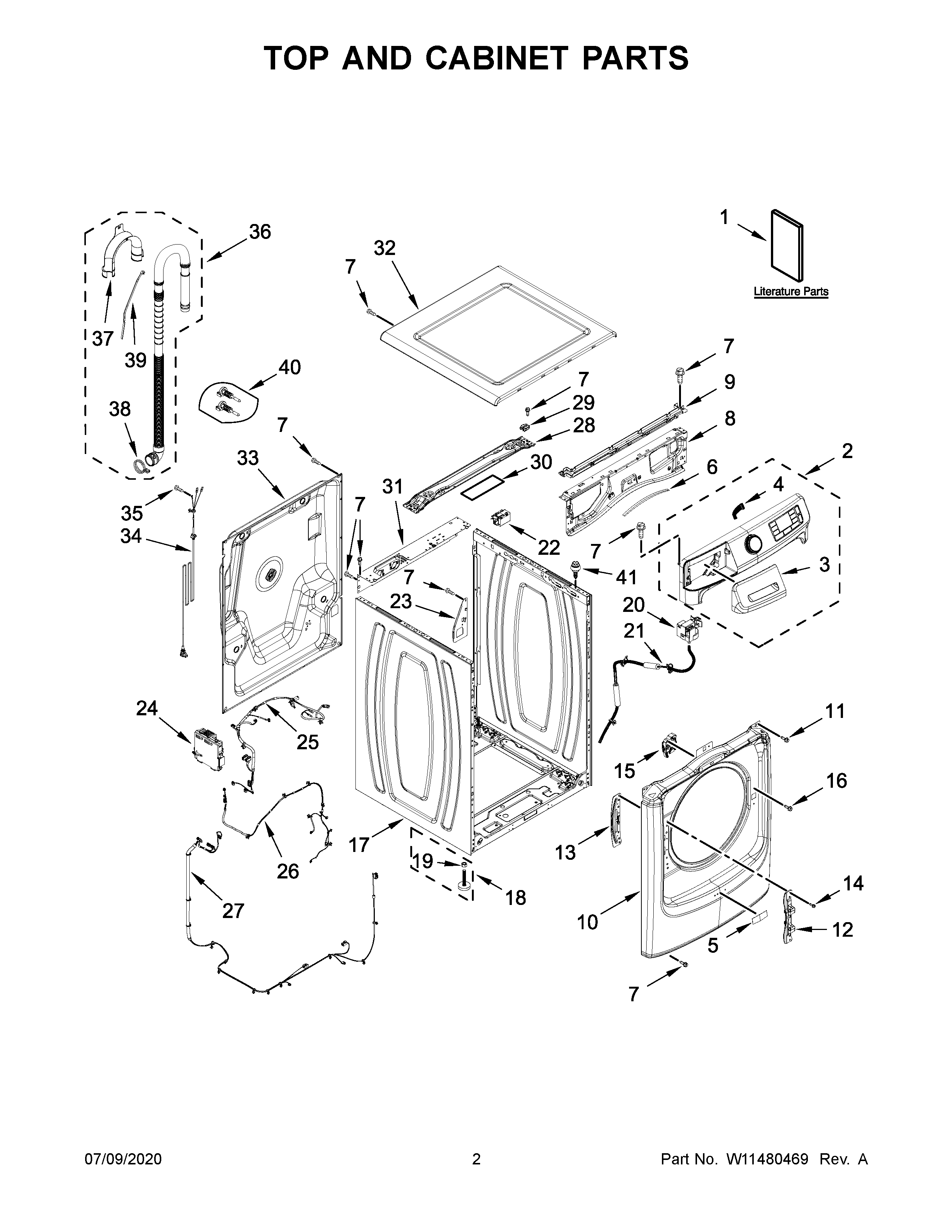

MHW6630HC2 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	QUICK START GUIDE
1C	MAY W11366244
1	OWNER'S MANUAL
2	ASSEMBLY, CONSOLE (WHITE)
2A	ASSEMBLY, CONSOLE (CHROME SHADOW)
3	HANDLE, DRAWER (WHITE)
3A	HANDLE, DRAWER (CHROME SHADOW)
4	MAY W10920818
5	BADGE, MAYTAG
6	EDGE GUARD
7	MAY W10567155
8	BRACKET, CONSOLE
9	CHANNEL, WATER
10A	PANEL, FRONT (CHROME SHADOW)
10	PANEL, FRONT (WHITE)
11	SCREW
12	HINGE BASE
13	BRACKET, HINGE
14	MAY W10288126
15	LOCK, DOOR
16	MAY 8540282
17	CABINET (WHITE)
17A	CABINET (CHROME SHADOW)
18	LEVELING LEG ASSEMBLY
19	Nut, 3/8-16
20	PRESSURE SWITCH
21	HOSE, PRESSURE SWITCH
22	RFI FILTER
23	BRACKET, DRAIN HOSE
24	APPLIANCE CONTROL UNIT (ACU)
25	HARNESS, UPPER
26	HARNESS, NTC
27	HARNESS, MAIN LOWER
28	BRACE, TOP
29	RETAINER, SPRING
30	FOAM PAD
31	BRACKET, REAR
32A	MAY W10460693
32	TOP (WHITE)
33	PANEL, REAR
34	CORD, POWER
35	SCREW
36	HOSE, DRAIN (EXTERNAL)
37	MAY W10280024
38	MAY 356138
39	MAY W10267532
40	BOLT, TRANSPORT (SHORT)
41	SCREW AND BUSHING ASSEMBLY
