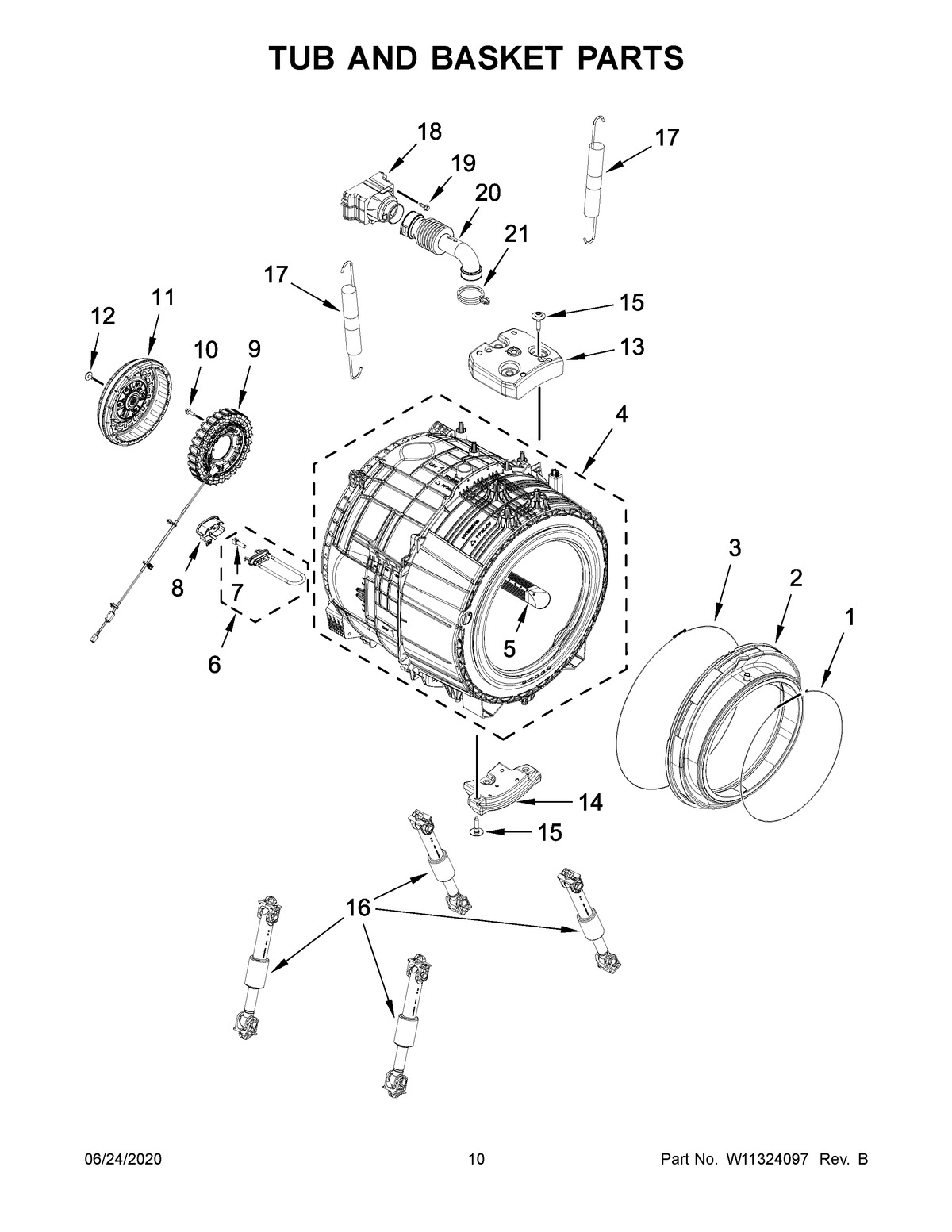

MHW6630HW0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	RETAINER, FRONT PANEL TO BELLOW
2	BELLOW
3	RETAINER, BELLOW TO TUB
4	ASSEMBLY, TUB AND DRUM
5	BAFFLE, DRUM
6	ASSEMBLY, HEATER
7	SENSOR, NTC
8	SHIELD, HEATER
9	STATOR, MOTOR
10	SCREW, STATOR
11	ROTOR, MOTOR
12	SCREW, ROTOR
13	COUNTERWEIGHT, TOP
14	COUNTERWEIGHT, BOTTOM
15	SCREW, COUNTERWEIGHT
16	DAMPER ASSEMBLY
17	SPRING, SUSPENSION
18	ENCLOSURE, VENT/FAN
19	MAY 8540513
20	HOSE, VENTILATION
21	MAY 371507
