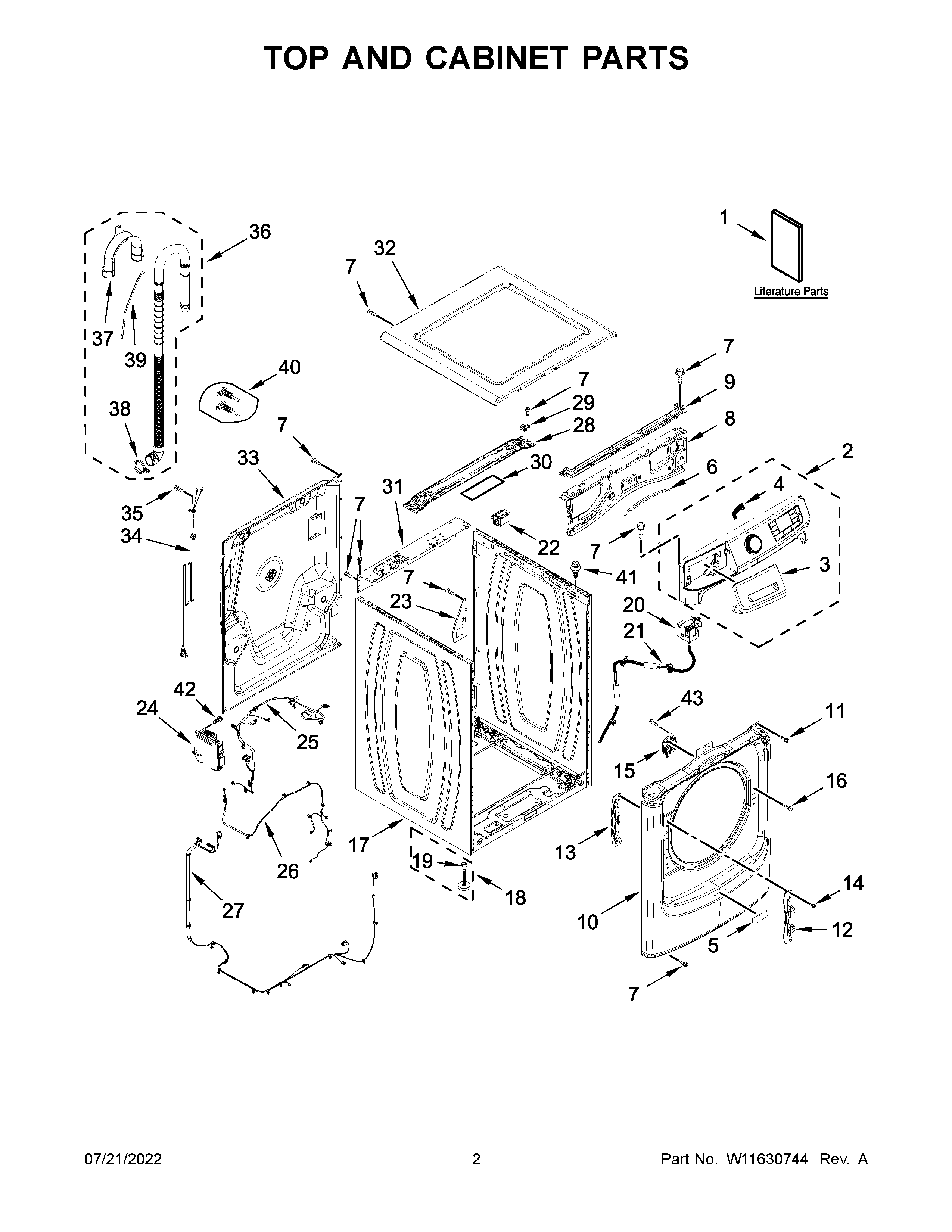

MHW6630MBK0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	OWNER'S MANUAL
1B	ENERGY GUIDE
1C	CYCLE GUIDE
1A	QUICK START GUIDE
2	W11633356 Whirlpool Console + Core
3	W11580427 Whirlpool Handle
4	W11316625 Whirlpool Wire Harness
5	WPW10612925 Whirlpool Microwave Nameplate
6	W11316770 Whirlpool Protector
7	W11568617 Whirlpool Screw
8	W11314678 Whirlpool Bracket Assembly
9	W11458348 Whirlpool Channel
10	PANEL, FRONT (BLACK)
11	W11573574 Whirlpool Screw
12	HINGE
13	W10299097 Whirlpool Bracket Assembly
14	SCREW
15	W11565030 Whirlpool Latch
16	WP8540282 Whirlpool Screw
17	W11353000 Whirlpool Cabinet
18	W10888529 Whirlpool Washer Leveling Leg
19	WP3359452 Whirlpool Nut
20	SWITCH-WL
21	W11456953 Whirlpool Hose
22	W11316771 Whirlpool Filter
23	W11316769 Whirlpool Bracket
24	W11550453-includeCORE Whirlpool W11550453 Washer Electronic Control Board
25	W11744014 Whirlpool Wire Harness
26	W11038118 Whirlpool Wire Harness
27	W11557918 Whirlpool Wire Harness
28	W10467484 Whirlpool Bracket
29	W10245452 Whirlpool Retainer
30	FOAM PAD
31	W11353016 Whirlpool Bracket
32	W11328714 Whirlpool Top Assembly
33	W11315708 Whirlpool Panel
34	W11316254 Whirlpool Power Cord
35	W10850756 Whirlpool Screw
36	W11551765 Whirlpool Hose
37	WPW10280024 Whirlpool Retainer
38	WP356138 Whirlpool Hose Clamp
39	WPW10339879 Whirlpool Wire Tie
40	W11316629 Whirlpool Bolt
41	W10208380 Whirlpool Screw
42	SCREW
43	W10306501 Whirlpool Screw
