MHW7000AG2 03 – DOOR PARTS – Aparts

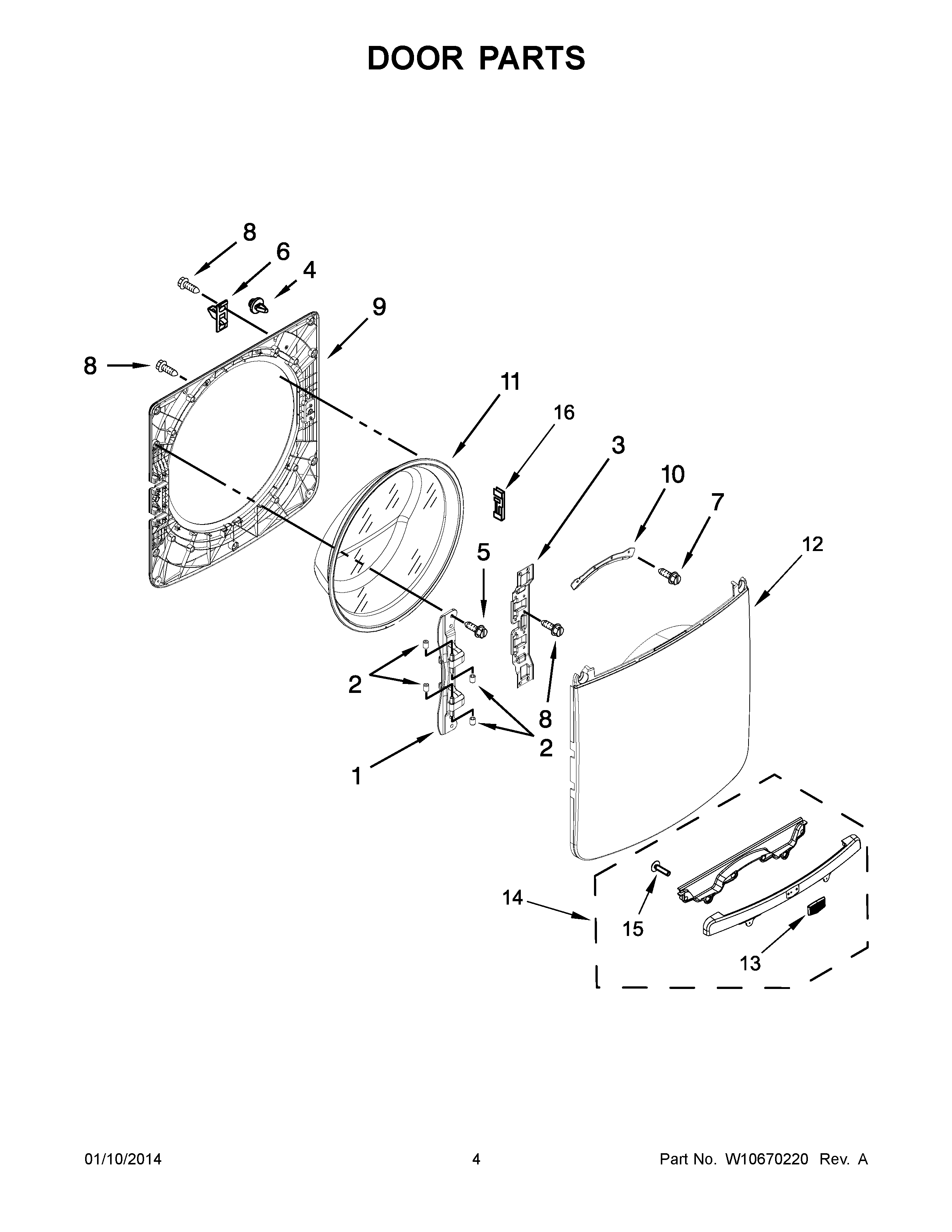

MHW7000AG2 03 – DOOR PARTS

Products

Position	Product
1	HINGE BASE
2	MAY W10208398
3	PLATE, HINGE RETAINER
4	MAY 8572266
5	MAY W10288126
6	MAY W10488048
7	MAY 8540513
8	MAY 8534022
9	MAY W10272396
10	MAY W10003440
11	MAY W10208263
12	MAY W10424239
13	MAY W10424964
14	MAY W10466620
15	Screw
16	MAY W10003430
