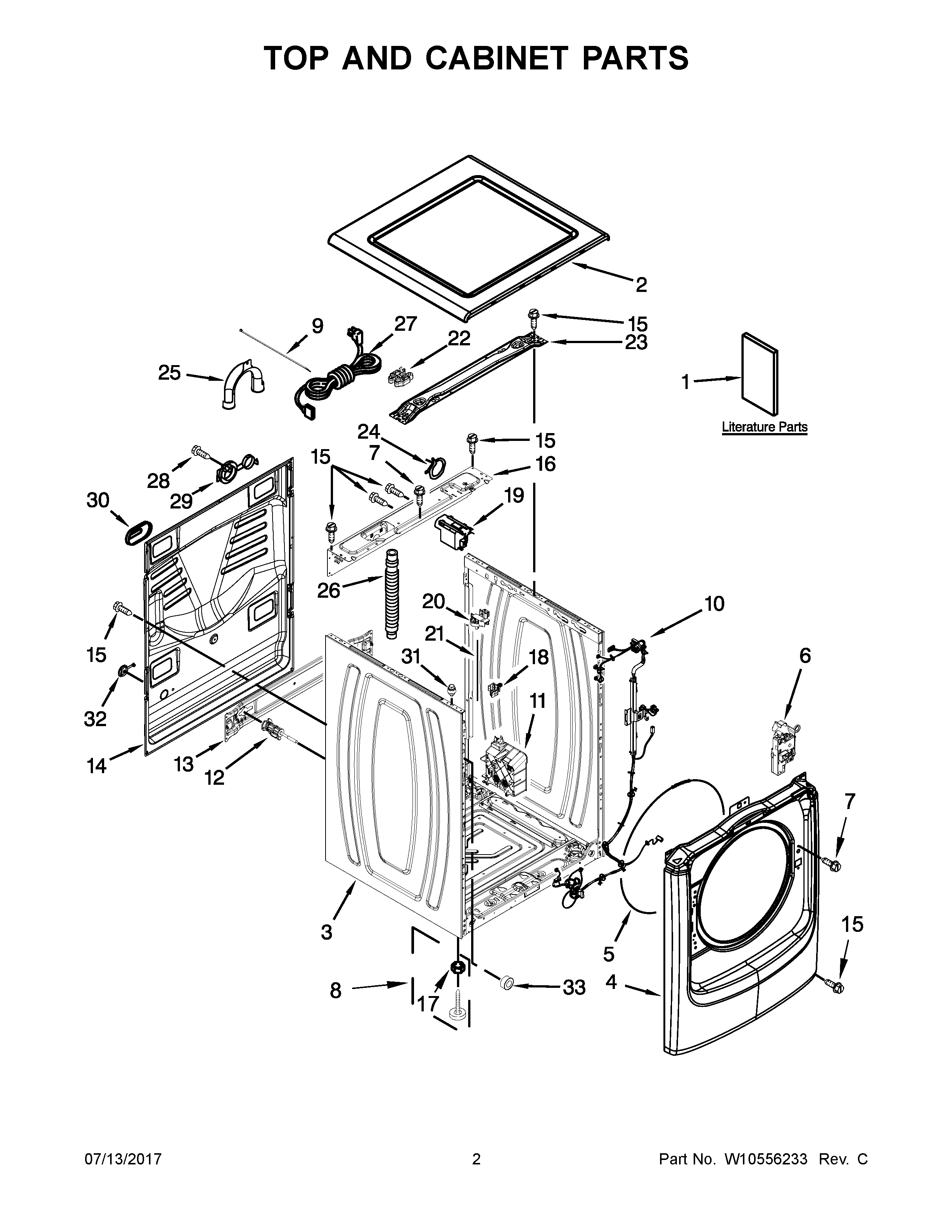

MHW7000AW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	MAY W10441075
1A	MAY W10441081
1	MAY W10441087
1C	MAY W10441093
2A	TOP (COSMETALLIC)
2	TOP (WHITE)
3	MAY W10441110
3A	MAY W10441108
4A	MAY W10441119
4	MAY W10441121
5	MAY W10237503
6	LOCK,DOOR
7	MAY 8540282
8	LEVELING LEG ASSEMBLY
9	TIE, CABLE
10	MAY W10498561
11	MAY W10374126
12	MAY W10271590
13	MAY W10237498
14	MAY W10502639
15	SCREW
16	MAY W10467483
17	Nut, 3/8-16
18	MAY W10181028
19	MAY W10367632
20	MAY W10448876
21	MAY W10251962
22	RETAINER, SPRING
23	BRACE, TOP
24	MAY 356138
25	MAY W10280024
26	MAY W10267638
27	MAY W10434975
28	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
29	COVER, POWER CORD-TRANSPORT
30	MAY 8182700
31	SCREW AND BUSHING ASSEMBLY
32	MAY W10304004
33	MAY W10323182
