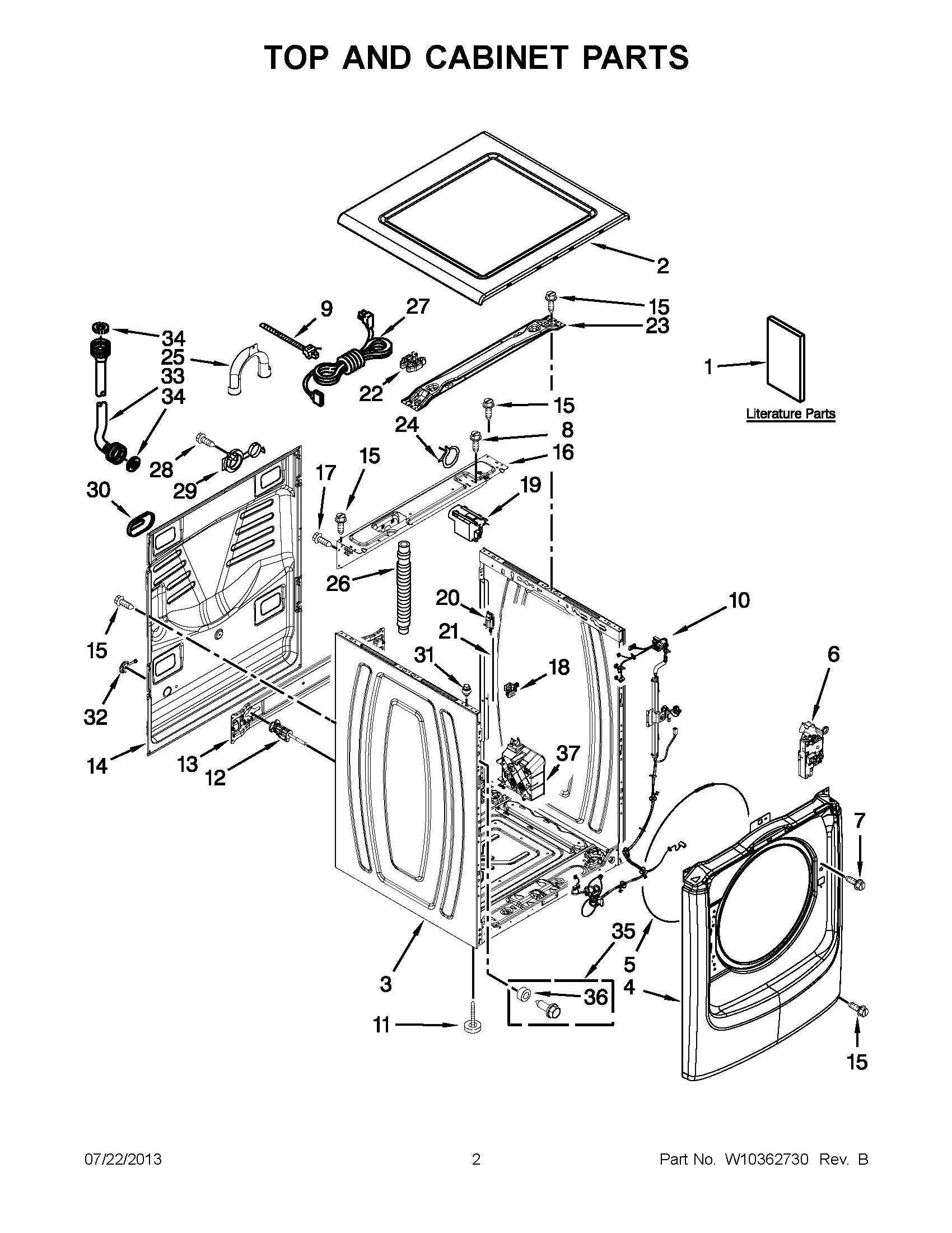

MHW7000XG0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10254438
1	MAY W10254445
1	MAY W10254474
1	MAY W10254447
2	TOP (WHITE)
2	TOP (COSMETALLIC)
2	MAY W10337799
3	MAY W10337793
3	MAY W10301048
3	MAY W10237487
4	MAY W10208182
4	MAY W10301079
4	MAY W10337797
5	MAY W10237503
6	MAY W10306374
7	MAY 8540282
8	MAY 8540329
9	TIE, CABLE
10	MAY W10271986
11	MAY 8563585
12	MAY W10271590
13	MAY W10237498
14	MAY W10237492
15	SCREW
16	MAY W10237495
17	MAY W10305097
18	MAY W10181028
19	MAY W10326464
20	MAY W10312527
21	MAY W10251962
22	RETAINER, SPRING
23	MAY W10237490
24	MAY 356138
25	MAY W10280024
26	MAY W10267638
27	MAY W10326100
28	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
29	COVER, POWER CORD-TRANSPORT
30	MAY 8182700
31	SCREW AND BUSHING ASSEMBLY
32	MAY W10304004
33	Hose, Water Inlet (Hot Water)
33	Hose, Water Inlet (Cold Water)
34	ACCESSORY PARTS, WASHER, HOSE
35	MAY W10298211
36	MAY W10323182
37	MAY W10245123
