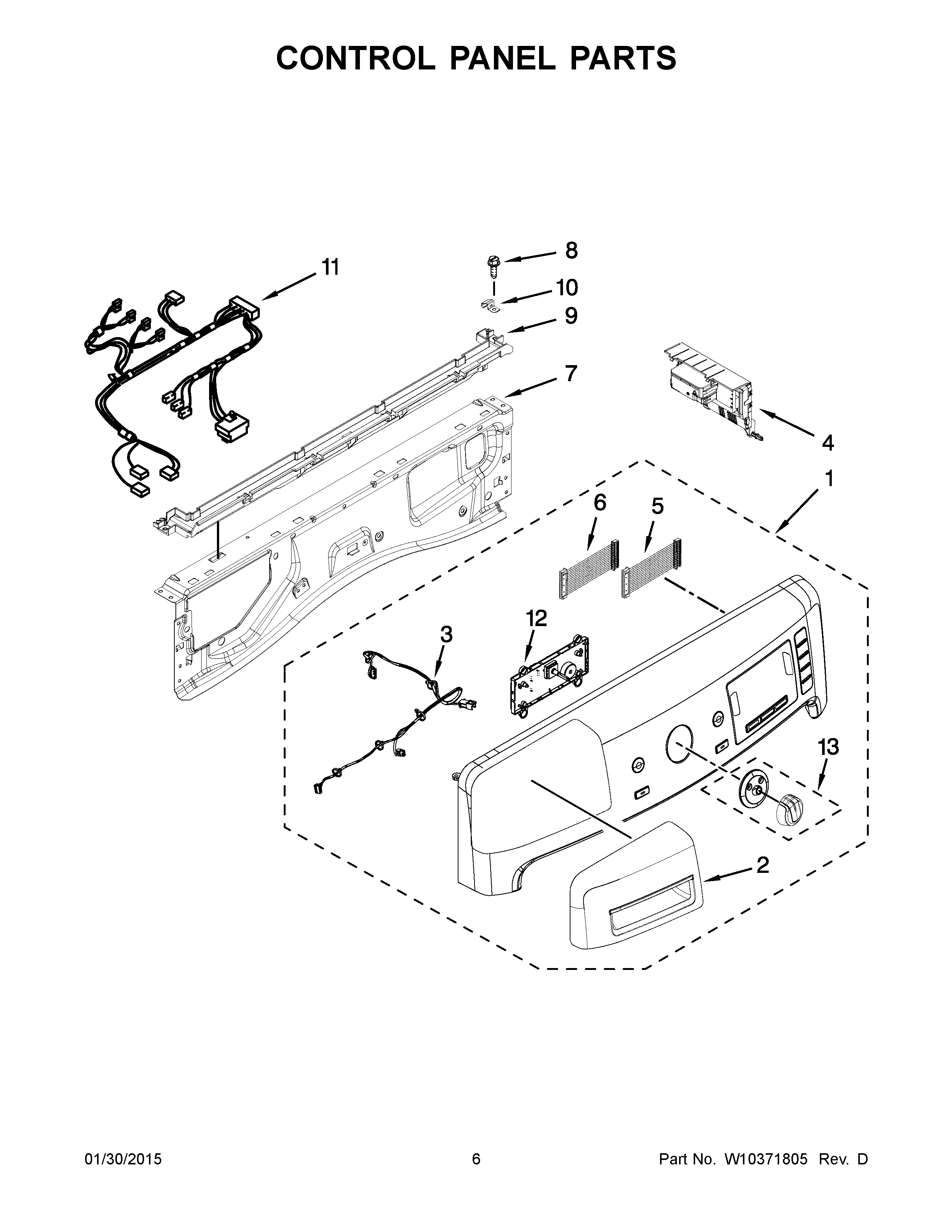

MHW7000XR1 04 – CONTROL PANEL PARTS

MHW7000XR1 04 – CONTROL PANEL PARTS

Written by

in

MHW7000XR1 04 – CONTROL PANEL PARTS

Products

PositionProduct
1AMAY W10392690
1BMAY W10392689
1MAY W10392688
2BMAY W10315748
2AHANDLE, DISPENSER DRAWER (RED)
2HANDLE, DISPENSER DRAWER (WHITE)
3MAY W10271988
4MAY W10388206
5HARNESS, JUMPER
6HARNESS, JUMPER
7MAY W10208197
8SCREW
9MAY W10317570
10MAY W10317566
11MAY W10271982
12MAY W10368100
13MAY W10514146
