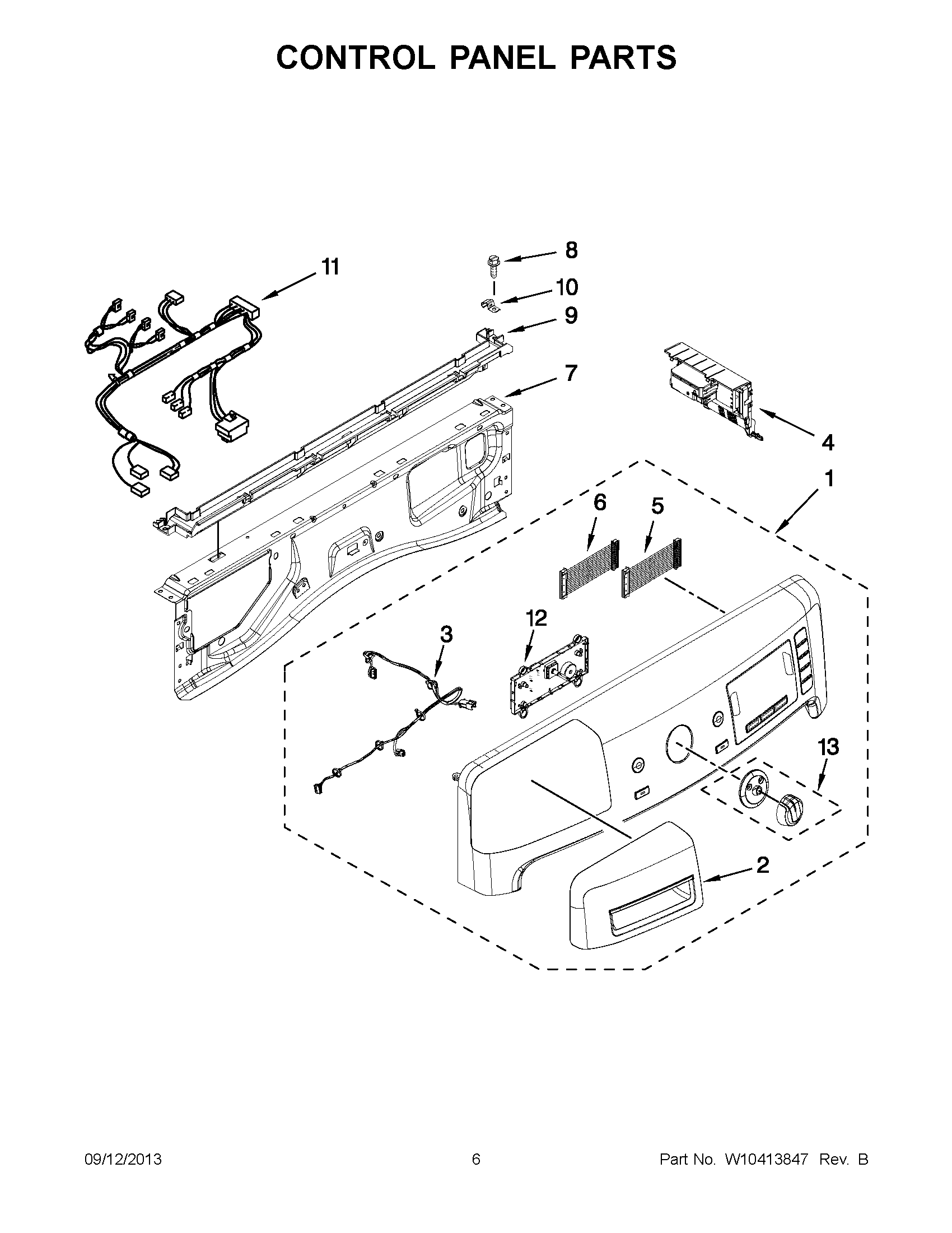

MHW7000XR2 04 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	MAY W10387861
1	MAY W10387859
1	MAY W10387856
2	HANDLE, DISPENSER DRAWER (RED)
2	MAY W10315748
2	HANDLE, DISPENSER DRAWER (WHITE)
3	MAY W10271988
4	MAY W10442139
5	HARNESS, JUMPER
6	HARNESS, JUMPER
7	MAY W10208197
8	SCREW
9	MAY W10317570
10	MAY W10317566
11	MAY W10271980
12	MAY W10455729
13	MAY W10514146
