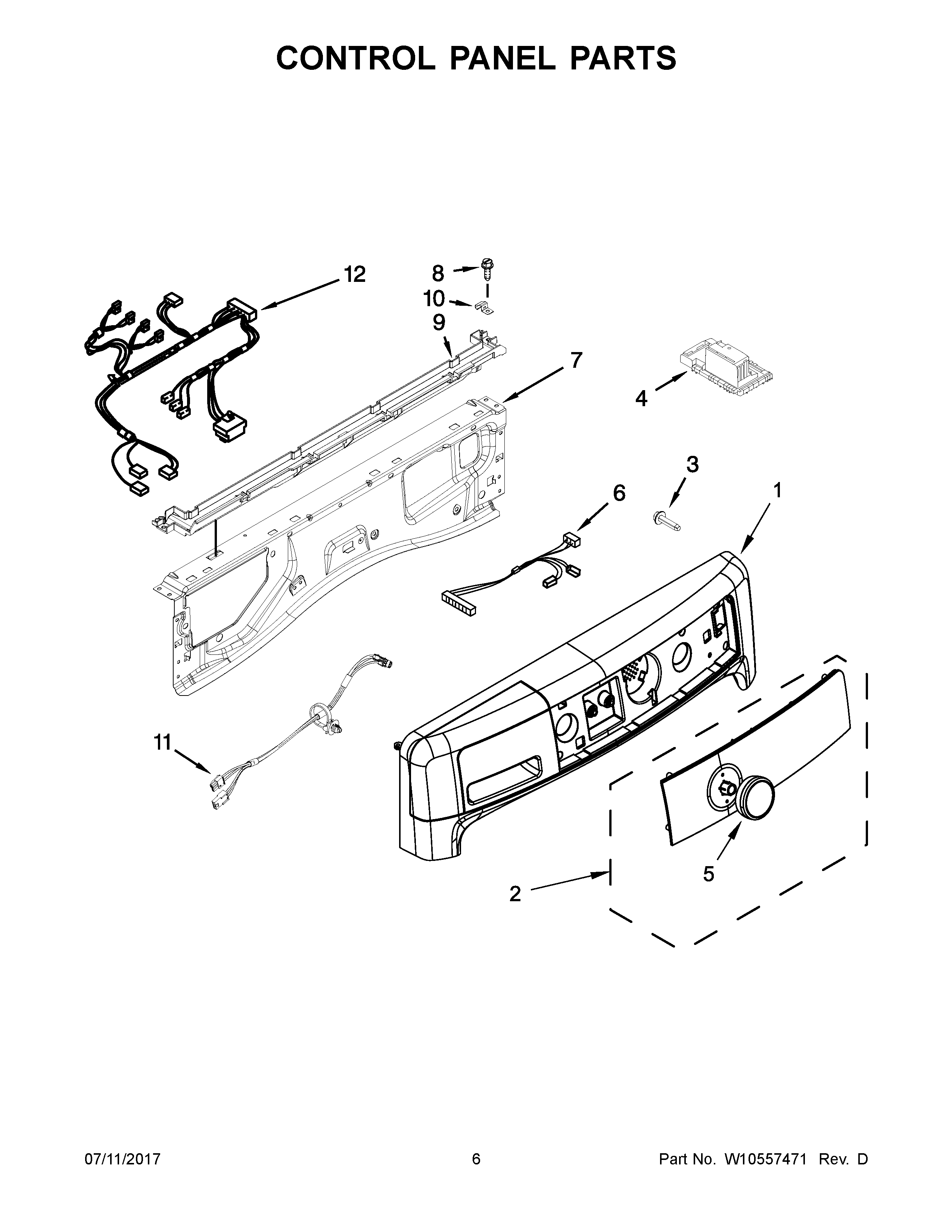

MHW8000AG0 04 – CONTROL PANEL PARTS

MHW8000AG0 04 – CONTROL PANEL PARTS

Written by

in

MHW8000AG0 04 – CONTROL PANEL PARTS

Products

Position	Product
1A	MAY W10469297
1	ASSEMBLY, CONSOLE (WHITE)
2A	ASSEMBLY, IML (GRANITE)
2	ASSEMBLY, IML (WHITE)
3	MAY W10489172
4	CONTROL UNIT, CENTRAL
5	MAY W10519048
6	MAY W10486221
7	MAY W10208197
8	SCREW
9	CHANNEL, WATER
10	MAY W10317566
11	MAY W10485684
12	HARNESS, WIRING (UPPER MAIN)
