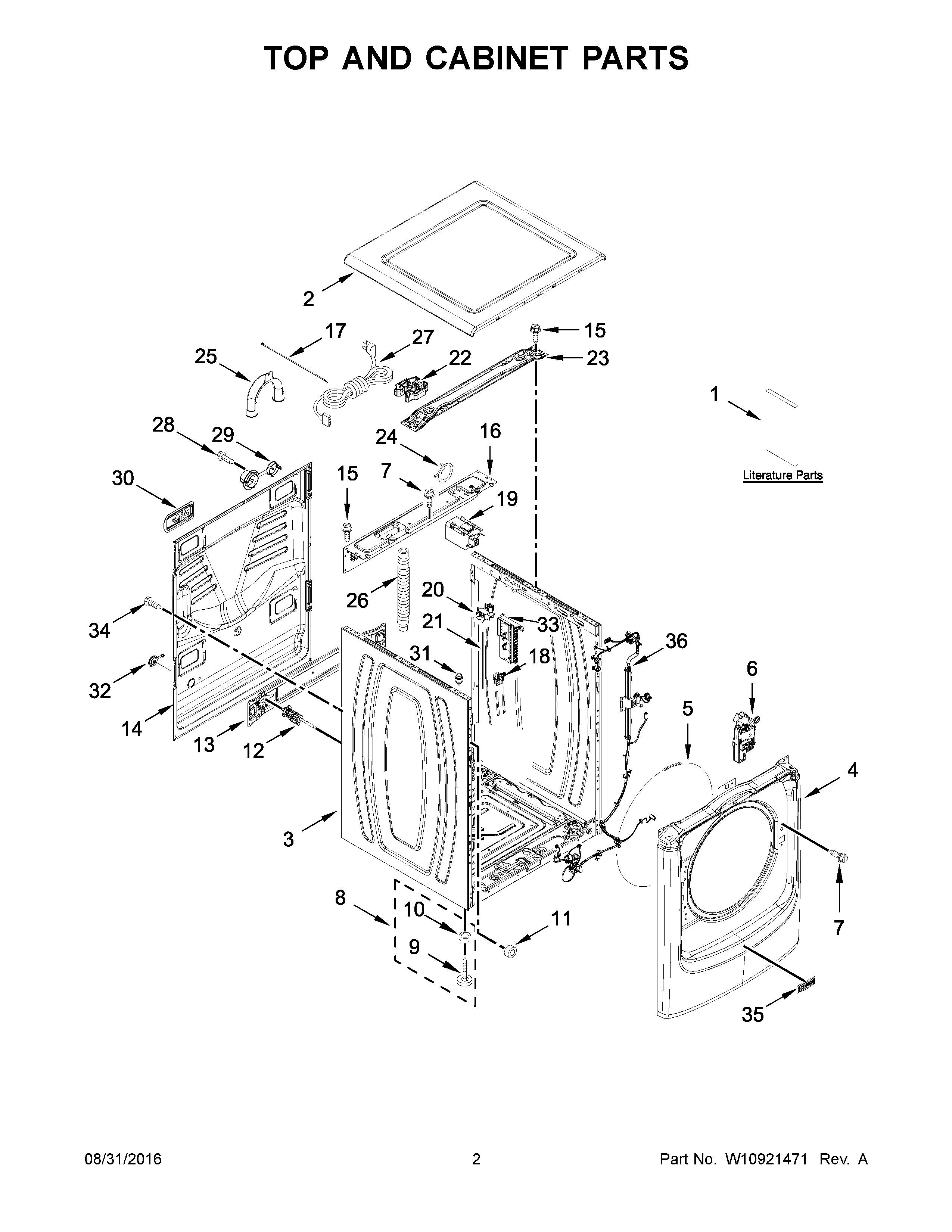

MHW8150EC0 02 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10649240
1A	MAY W10661436
1B	MAY W10631155
1C	MAY W10813896
2A	MAY W10460693
2	TOP (WHITE)
3A	MAY W10441105
3	MAY W10441110
4	MAY W10650837
4A	MAY W10650838
5	MAY W10237503
6	MAY W10443885
7	MAY 8540282
8	LEVELING LEG ASSEMBLY
9	MAY W10001130
10	Nut, 3/8-16
11	MAY W10615477
12	BOLT, SHIPPING
13	MAY W10237498
14	MAY W10386102
15	SCREW
16	MAY W10467483
17	TIE, CABLE
18	MAY W10181028
19	MAY W10367632
20	MAY W10448876
21	MAY W10525781
22	RETAINER, SPRING
23	BRACE, TOP
24	MAY 356138
25	MAY W10280024
26	MAY W10267638
27	MAY W10632346
28	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
29	COVER, POWER CORD-TRANSPORT
30	MAY 8540268
31	SCREW AND BUSHING ASSEMBLY
32	MAY W10304004
33	MAY W10660305
34	SCREW
35	BADGE, MAYTAG
36	MAY W10441668
