MHW8200FC0 05 – DISPENSER PARTS – Aparts

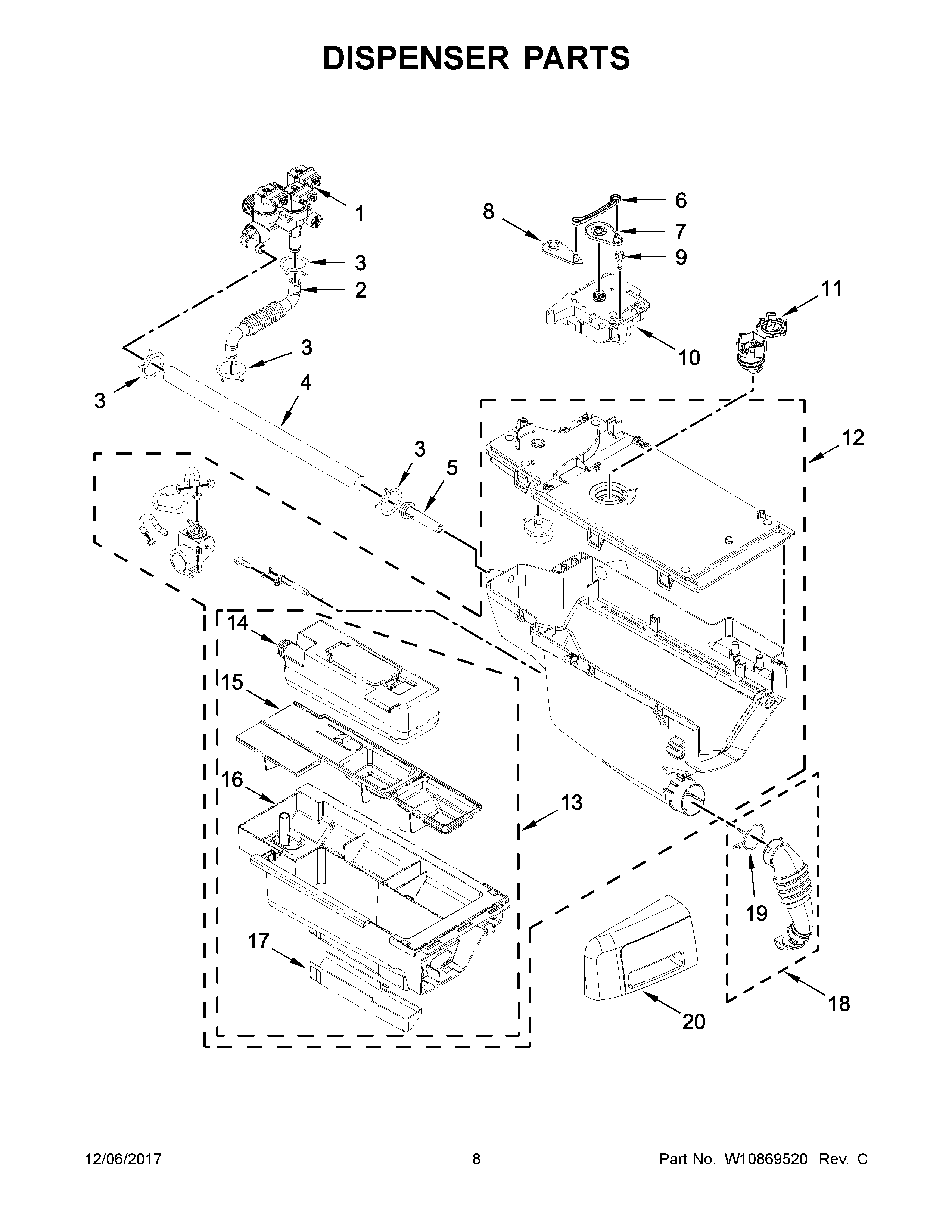

MHW8200FC0 05 – DISPENSER PARTS

Products

Position	Product
1	MAY W10513404
2	MAY W10239949
3	MAY W10096852
4	MAY W10744048
5	MAY 461970803531
6	MAY 461970226571
7	MAY W10003190
8	MAY W10183517
9	MAY 8540282
10	MAY W10163975
11	MAY W11027727
12	HOUSING, DISPENSER ASSEMBLY
13	MAY W10250742
14	MAY W10250743
15	MAY W10256661
16	MAY W10250723
17	MAY W10003140
18	MAY W10239966
19	CLAMP, HOSE
20A	HANDLE, DRAWER (CHROME SHADOW)
20	HANDLE, DRAWER (WHITE)
