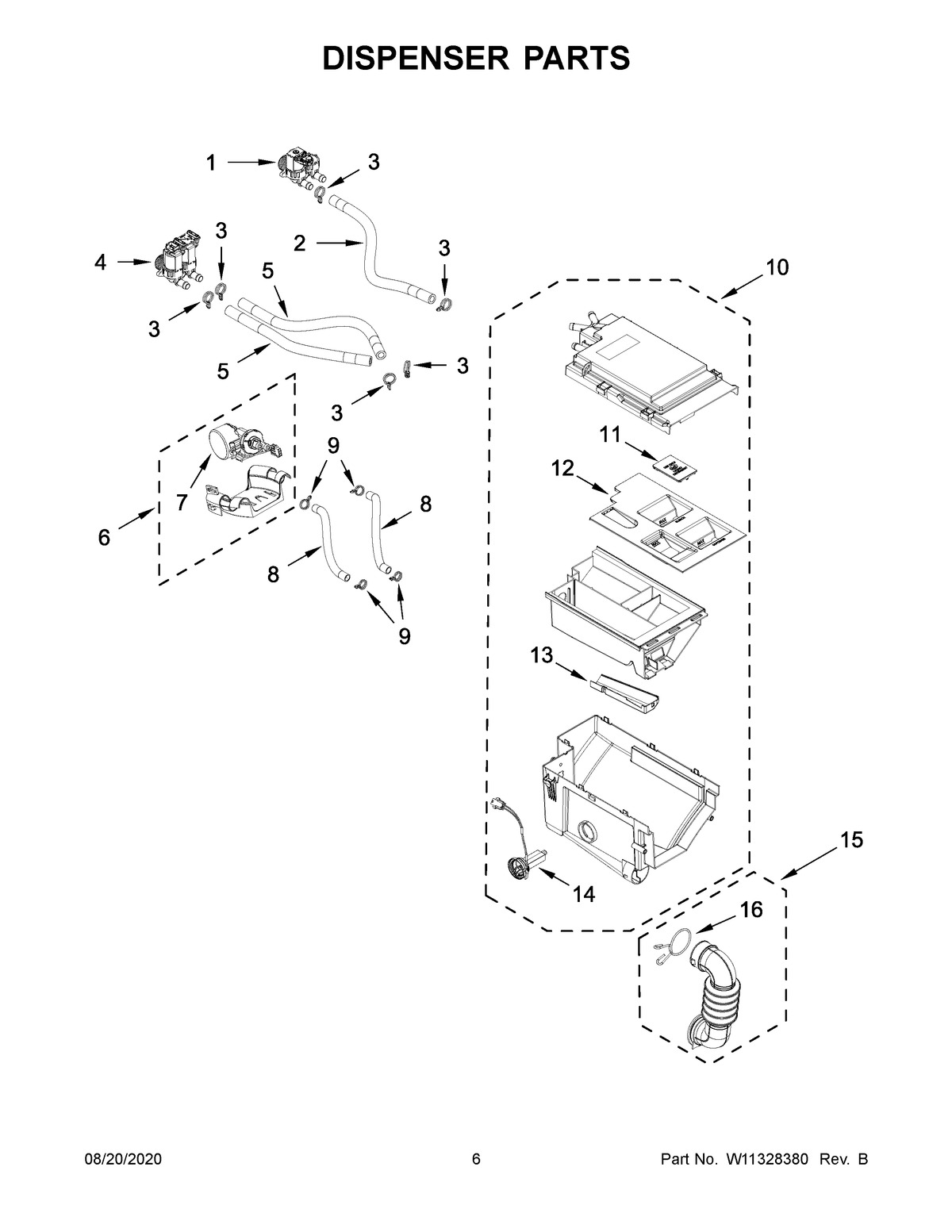

MHW8630HC0 04 – DISPENSER PARTS

MHW8630HC0 04 – DISPENSER PARTS

Written by

in

MHW8630HC0 04 – DISPENSER PARTS

Products

PositionProduct
1VALVE, INLET (SINGLE)
2HOSE, INLET (HOT)
3MAY W10096851
4VALVE, INLET (DOUBLE)
5HOSE, INLET (COLD)
6ASSEMBLY, DOSING PUMP
7PUMP, METERING
8HOSE
9MAY 9724997
10ASSEMBLY, DISPENSER
11LID, DISPENSER
12COVER, DISPENSER
13COVER, DETERGENT DRAWER
14ASSEMBLY, DETERGENT SENSOR
15ASSEMBLY, DISPENSER HOSE
16CLAMP, HOSE
