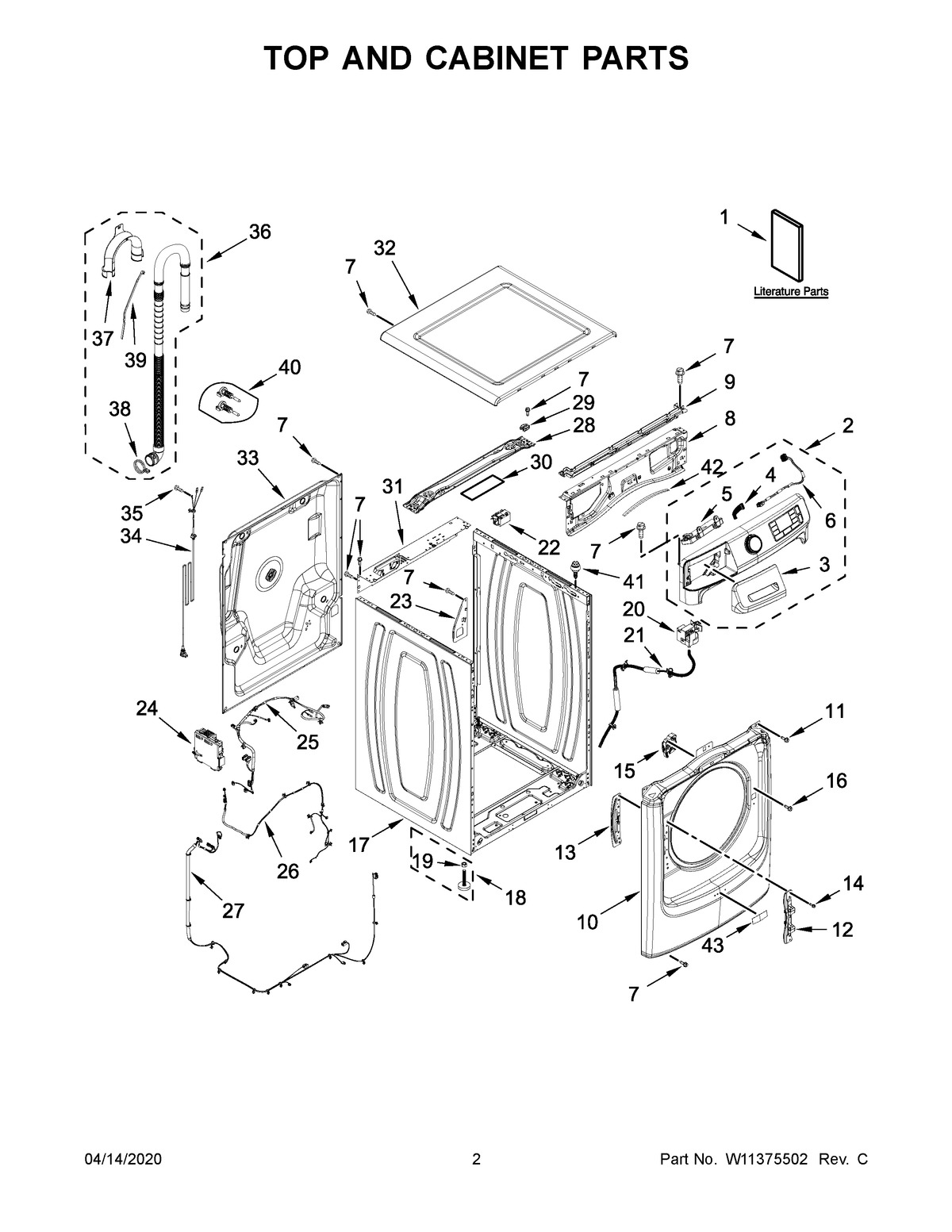

MHW8630HC1 02 – TOP AND CABINET PARTS

Products

Position	Product
1	OWNER'S MANUAL
1B	ENERGY GUIDE
1A	QUICK START GUIDE
2A	ASSEMBLY, CONSOLE (CHROME SHADOW)
2	ASSEMBLY, CONSOLE (WHITE)
3A	HANDLE, DRAWER (CHROME SHADOW)
3	HANDLE, DRAWER (WHITE)
4	MAY W10920818
5	MAY W11123730
6	MAY W11036819
7	MAY W10567155
8	BRACKET, CONSOLE
9	CHANNEL, WATER
10	PANEL, FRONT (WHITE)
10A	PANEL, FRONT (CHROME SHADOW)
11	SCREW
12	HINGE BASE
13	BRACKET, HINGE
14	MAY W10288126
15	LOCK, DOOR
16	MAY 8540282
17A	CABINET (CHROME SHADOW)
17	CABINET (WHITE)
18	LEVELING LEG ASSEMBLY
19	Nut, 3/8-16
20	PRESSURE SWITCH
21	HOSE, PRESSURE SWITCH
22	RFI FILTER
23	BRACKET, DRAIN HOSE
24	MAY W11448786
25	HARNESS, UPPER
26	HARNESS, NTC
27	HARNESS, MAIN LOWER
28	BRACE, TOP
29	RETAINER, SPRING
30	FOAM PAD
31	BRACKET, REAR
32	TOP (WHITE)
32A	MAY W10460693
33	PANEL, REAR
34	CORD, POWER
35	SCREW
36	HOSE, DRAIN (EXTERNAL)
37	MAY W10280024
38	MAY 356138
39	MAY W10267532
40	BOLT, TRANSPORT (SHORT)
41	SCREW AND BUSHING ASSEMBLY
42	EDGE GUARD
43	BADGE, MAYTAG
