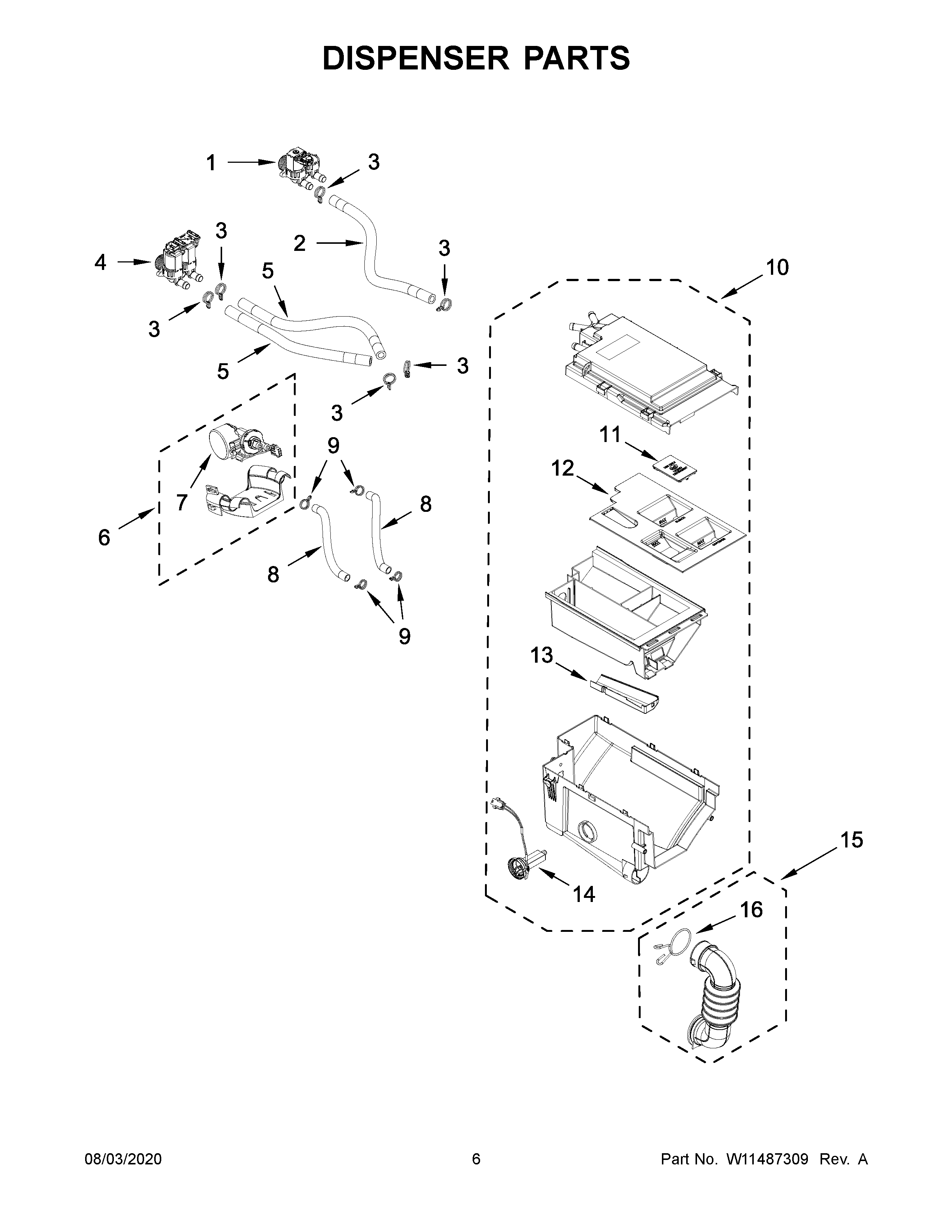

MHW8630HC3 04 – DISPENSER PARTS

MHW8630HC3 04 – DISPENSER PARTS

Written by

in

MHW8630HC3 04 – DISPENSER PARTS

Products

Position	Product
1	VALVE, INLET (SINGLE)
2	HOSE, INLET (HOT)
3	MAY W10096851
4	VALVE, INLET (DOUBLE)
5	HOSE, INLET (COLD)
6	ASSEMBLY, DOSING PUMP
7	PUMP, METERING
8	HOSE
9	MAY 9724997
10	MAY W11437245
11	LID, DISPENSER
12	COVER, DISPENSER
13	COVER, DETERGENT DRAWER
14	ASSEMBLY, DETERGENT SENSOR
15	ASSEMBLY, DISPENSER HOSE
16	CLAMP, HOSE
