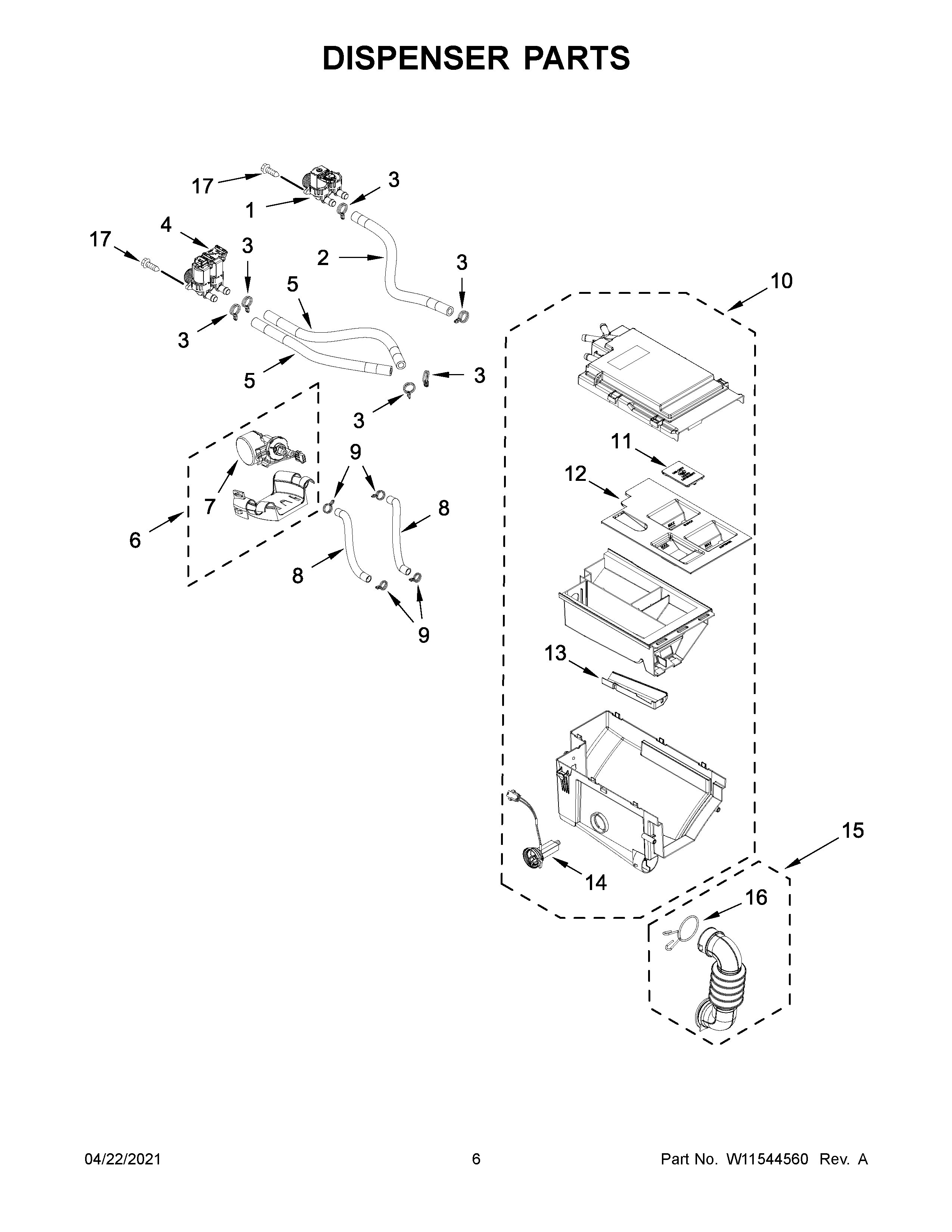

MHW8630HW4 04 – DISPENSER PARTS

Products

Position	Product
1	VALVE
2	W11316257 Whirlpool Hose
4	W11688995 Whirlpool Valve
5	W11316599 Whirlpool Hose
6	W11316271 Whirlpool Pump Motor Assembly
7	W11318806 Whirlpool Pump Motor
8	W11316272 Whirlpool Hose Assembly
9	WP596669 Whirlpool Hose Clamp
10	W11524106 Whirlpool Dishwasher Detergent Dispenser
11	W11316374 Whirlpool Lid Assembly
12	W11316373 Whirlpool Dishwasher Detergent Dispenser Cover
13	W11316375 Whirlpool Cover Assembly
14	W11316376 Whirlpool Sensor Switch
15	W11316604 Whirlpool Hose
16	W10239910 Whirlpool Clamp
17	WP90767 Whirlpool Screw
