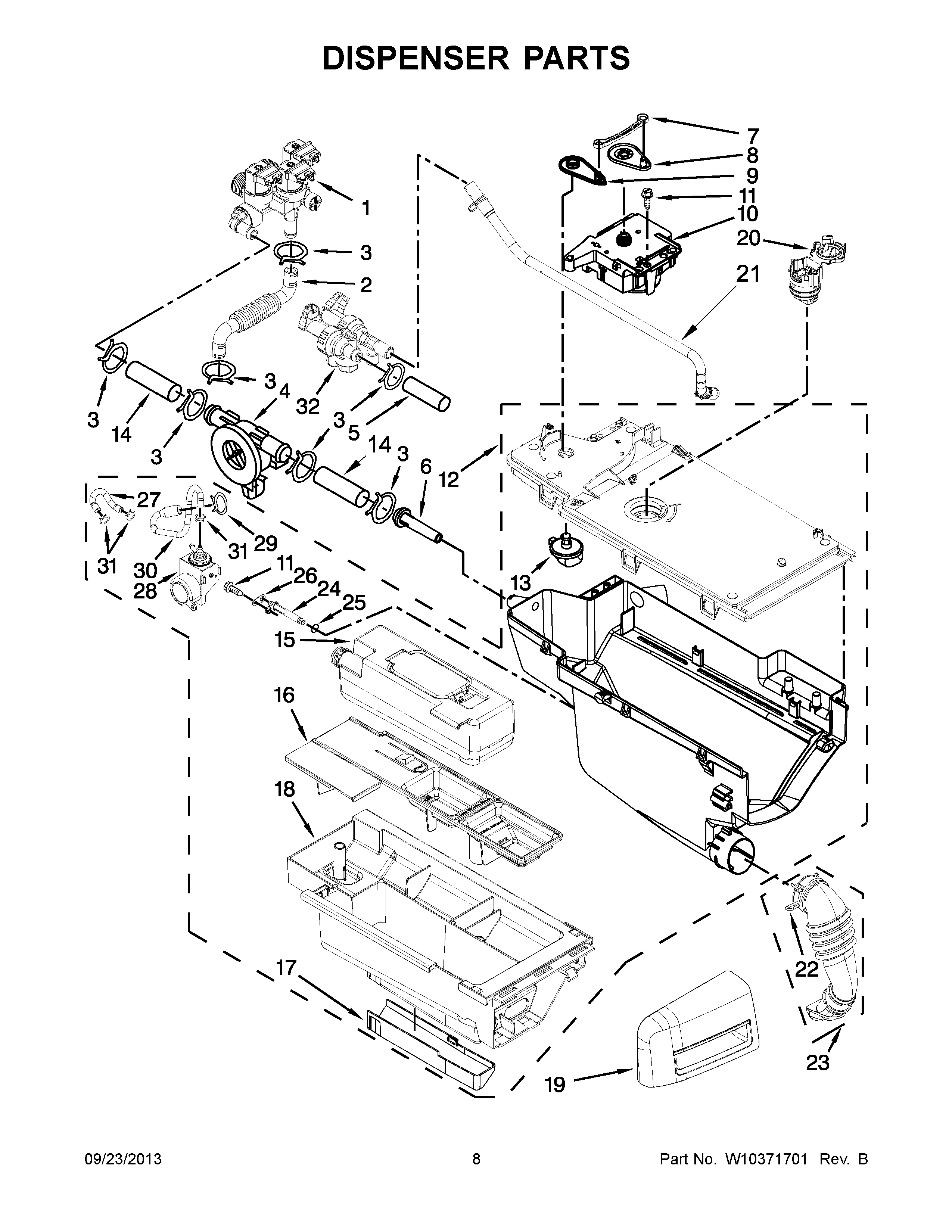

MHW9000YG0 05 – DISPENSER PARTS

Products

Position	Product
1	MAY W10247306
2	MAY W10239949
3	MAY W10096852
4	MAY 8181696
5	MAY W10538825
6	MAY 8183181
7	Lever, Water Distribution
8	MAY W10003190
9	MAY W10183517
10	MAY W10163975
11	MAY 8540282
12	HOUSING, DISPENSER ASSEMBLY
13	MAY W10003110
14	MAY W10566484
15	MAY W10250743
16	MAY W10256661
17	MAY W10003140
18	MAY W10250723
19	MAY W10315748
19	HANDLE, DISPENSER DRAWER (RED)
19	HANDLE, DISPENSER DRAWER (WHITE)
20	MAY W10306690
21	MAY W10239908
22	CLAMP, HOSE
23	MAY W10239966
24	MAY W10250730
25	MAY W10250731
26	MAY W10376678
27	MAY W10268381
28	MAY W10250734
29	MAY W10096851
30	MAY W10268382
31	MAY W10292700
32	MAY W10239942
